Performance Verification 2 3-14 Mobile WiMAX Signal Analyzer (Options 66 and 67) Verification
MS2721B MM PN: 10580-00177 Rev. D 3-97
Mobile WiMAX Channel Power Accuracy Tests (Option 66)
Procedure:
1. Connect the MA2482D Power Sensor to the power meter and zero the meter.
2. Set the Power Meter Measurement MODE to "True RMS", set Averaging MODE to "Moving", and set
Averaging NUMBER to "256".
3. Set the calibration factor frequency of the power sensor to 2600.5 MHz.
4. Connect the Power Sensor, 1870A splitter, and 10 dB attenuators (2) as shown in Figure 3-27.

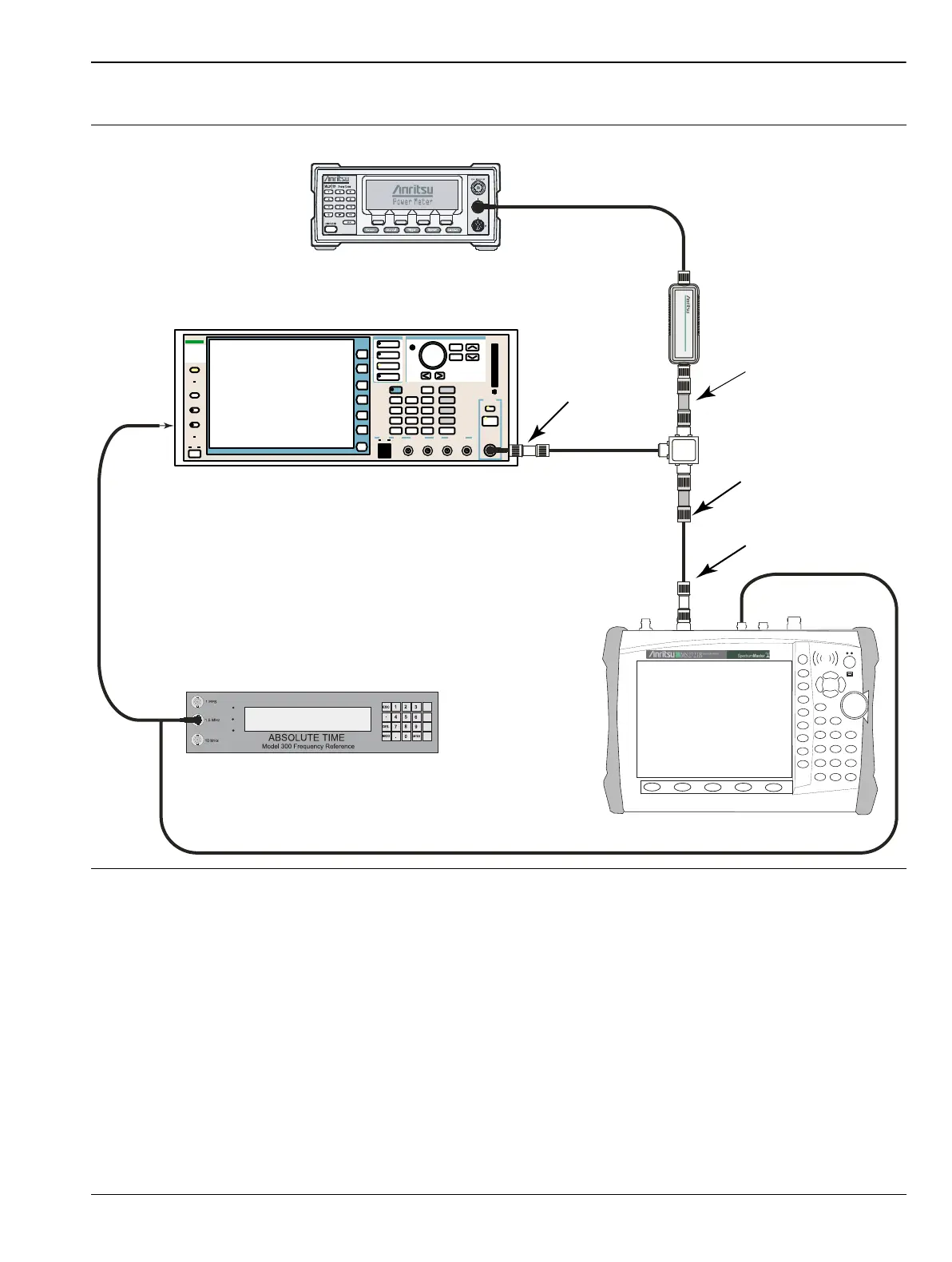

Figure 3-27. Mobile WiMAX Signal Analyzer Test Setup
Function
Ethernet Control Input Modulation Input
Cursor/Edit
RF Output
3
MG3700
Vector Signal
Generator
250kHz-6GHz
MG3700A
MS2721B
ML2438A Power Meter
Sensor
10 MHz Reference
Power
Splitter 1870A
(to back panel)
Adapter
34NN50A
Attenuator
10 dB
Attenuator
10 dB
Adapter
34NN50A
15NN50-1.5B
