Anritsu Spectrum Master MS2721B Maintenance Manual

Performance Verification 1 2-2 Spectrum Analyzer Function Verification
MS2721B MM PN: 10580-00177 Rev. D 2-7
Spectrum Analyzer Resolution Bandwidth Accuracy
This test verifies the resolution bandwidth accuracy of the Spectrum Analyzer in the Spectrum Master Model
MS2721B.
Required Equipment:
• Anritsu MG3692x Synthesized Signal Generator
• Frequency Reference Symmetricom Rubisource T&M
• Spectrum Master Model MS2721B
• Adapter, Anritsu Model 34RKNF50 or Adapter, Anritsu Model 34NN50A
Procedure:
1. Connect the external 10 MHz Reference to both the MG3692x Synthesized Signal Generator and the
Spectrum Master MS2721B as shown in Figure 2-3.
2. Set the MS2721B to Spectrum Analyzer mode and then preset the instrument.
3. Set the MS2721B as follows:
Center Frequency: 1.0 GHz
Reference Level: –10 dBm
Attenuation Level: 0 dB

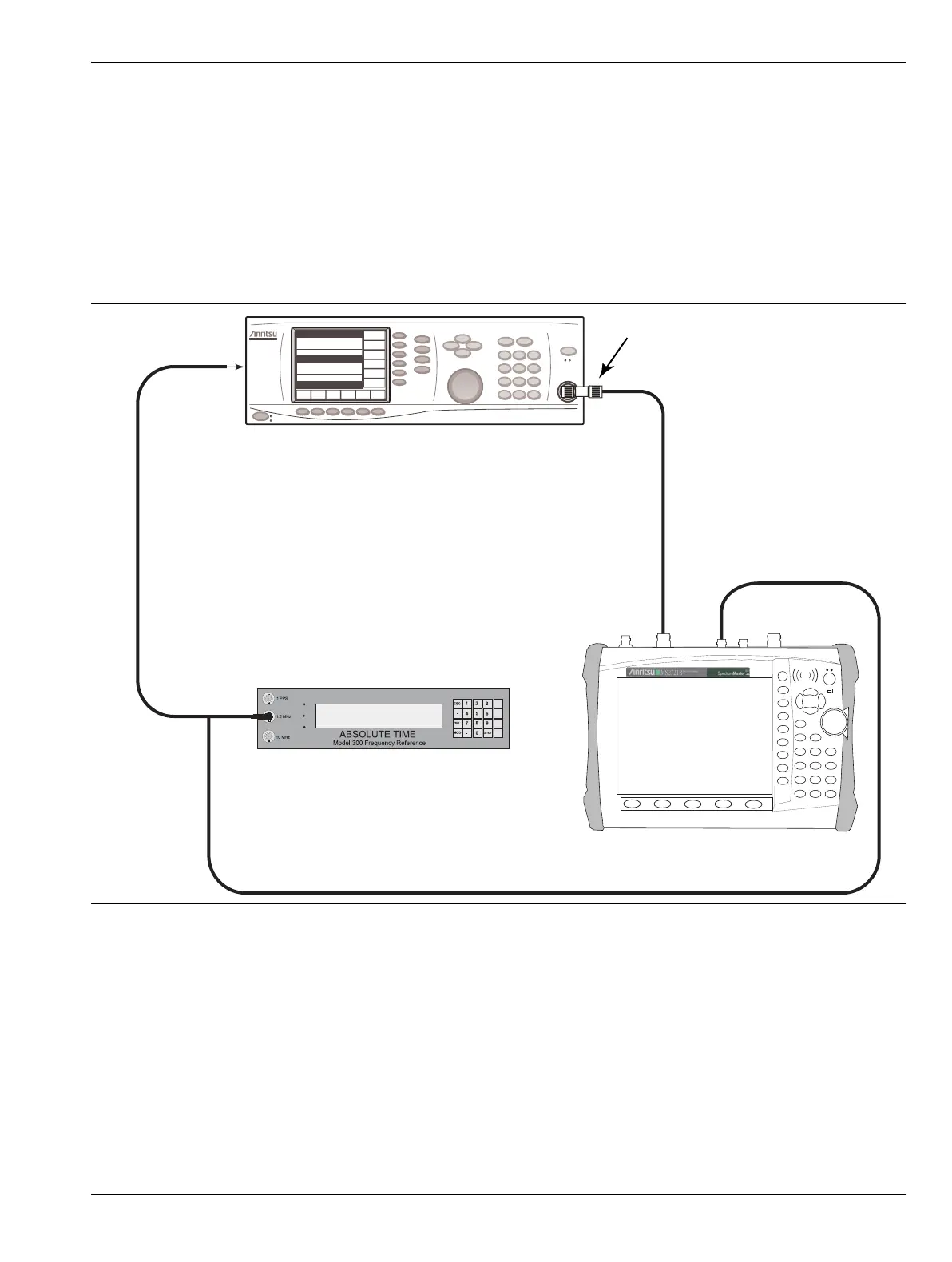

Figure 2-3. Spectrum Analyzer Resolution Bandwidth Accuracy Test Setup
To Ext Ref In
10 MHz Reference
(to back panel)
MS2721B
Adapter
MG3692X
