ASE2000 V2 Communication Test Set User Manual 142
24.2. CDC Type II – Task Mode
For all protocols, Task Mode setup starts by rst conguring an RTU and RTU point conguration
in the device data base or selection of an existing RTU denition. See the non-protocol specic
section “Task Mode Device Selection and Conguration”. The steps described below for
activating Line Monitor, Master Simulation, and RTU Simulation activities assume the correct
RTU conguration has been selected.
24.2.1. CDC Type II – Task Mode Line Monitor
No additional setup is required. If cabling is correct, and the RTU to be tested has been selected,
Line Monitoring can be started by selecting the Line Monitor icon
on the bottom of
the test set screen and then selecting the Start button
.
While it is best to accurately enter the RTU/point data base as described, it is not required for
Line Monitor operations. An undened input point is automatically added to the data base when
detected.

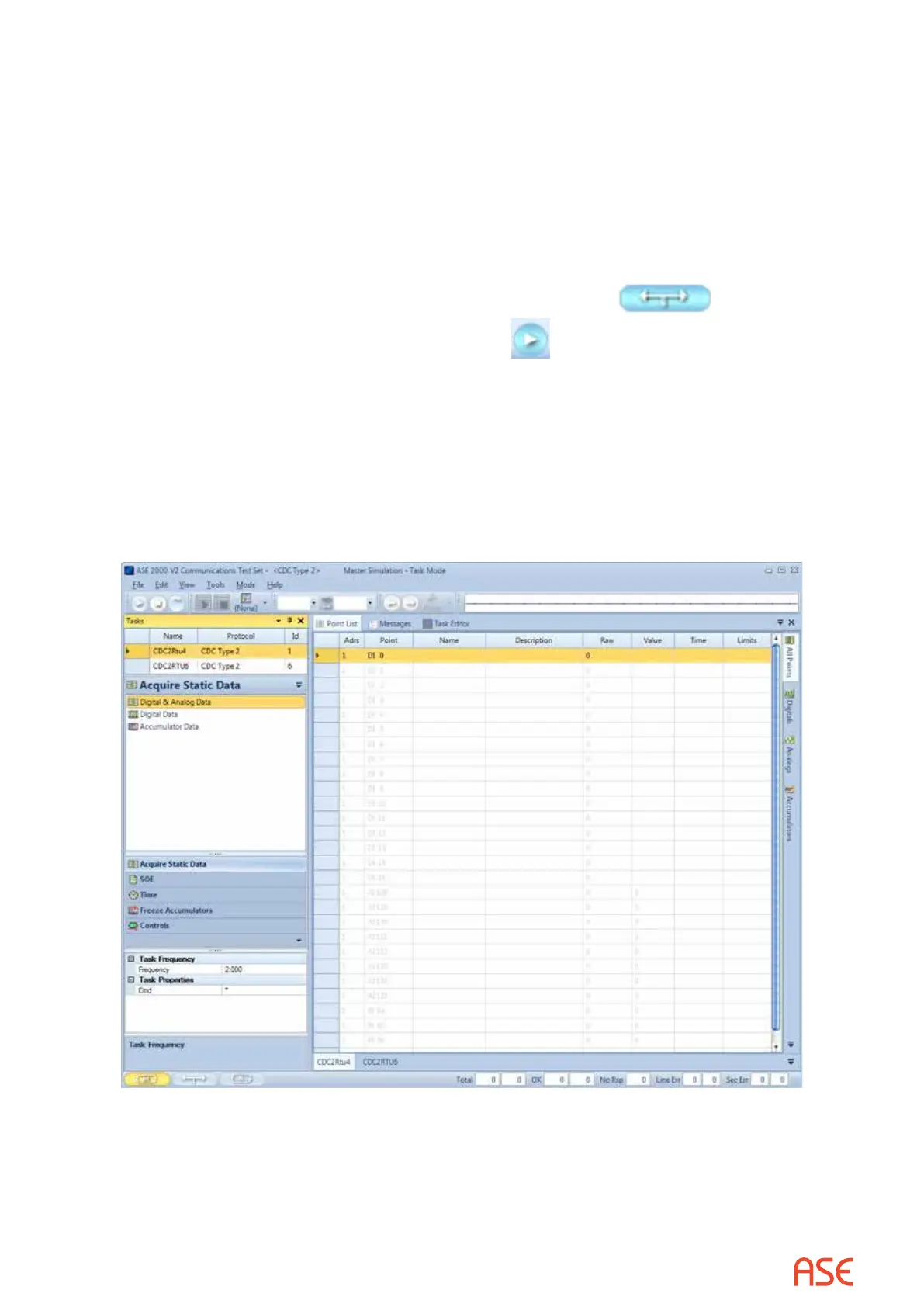

24.2.2. CDC Type II – Task Mode Master Simulation
Master Simulation operation works by selecting a Task Group and then a Task Activity within that
group.
For CDC Type II, the Task Groups are Digital & Analog Data (Scan 1), Digital Data (Scan 2), and
Accumulator Data (Scan 3).
With the desired Task Activity selected, execute the function one time using the Send Once icon
or continuously by selecting the Start Button.
