8.3. Exchange List View
The Exchange List appears when operating in Exchange Mode. It contains a set of rows, one
for each exchange (message) applicable to the selected protocol.
It also contains a set of columns for standard message components applicable to the protocol. For
example, DNP3 protocol deîš¿nes Destination and Source address îš¿elds used in each message.
When DNP3 is the active protocol, the Exchange List view contains Dest and Source columns.
Another protocol, such as Conitel, includes components called RTU ID, Group, and Point. Those
column headings appear when Conitel is the active protocol.

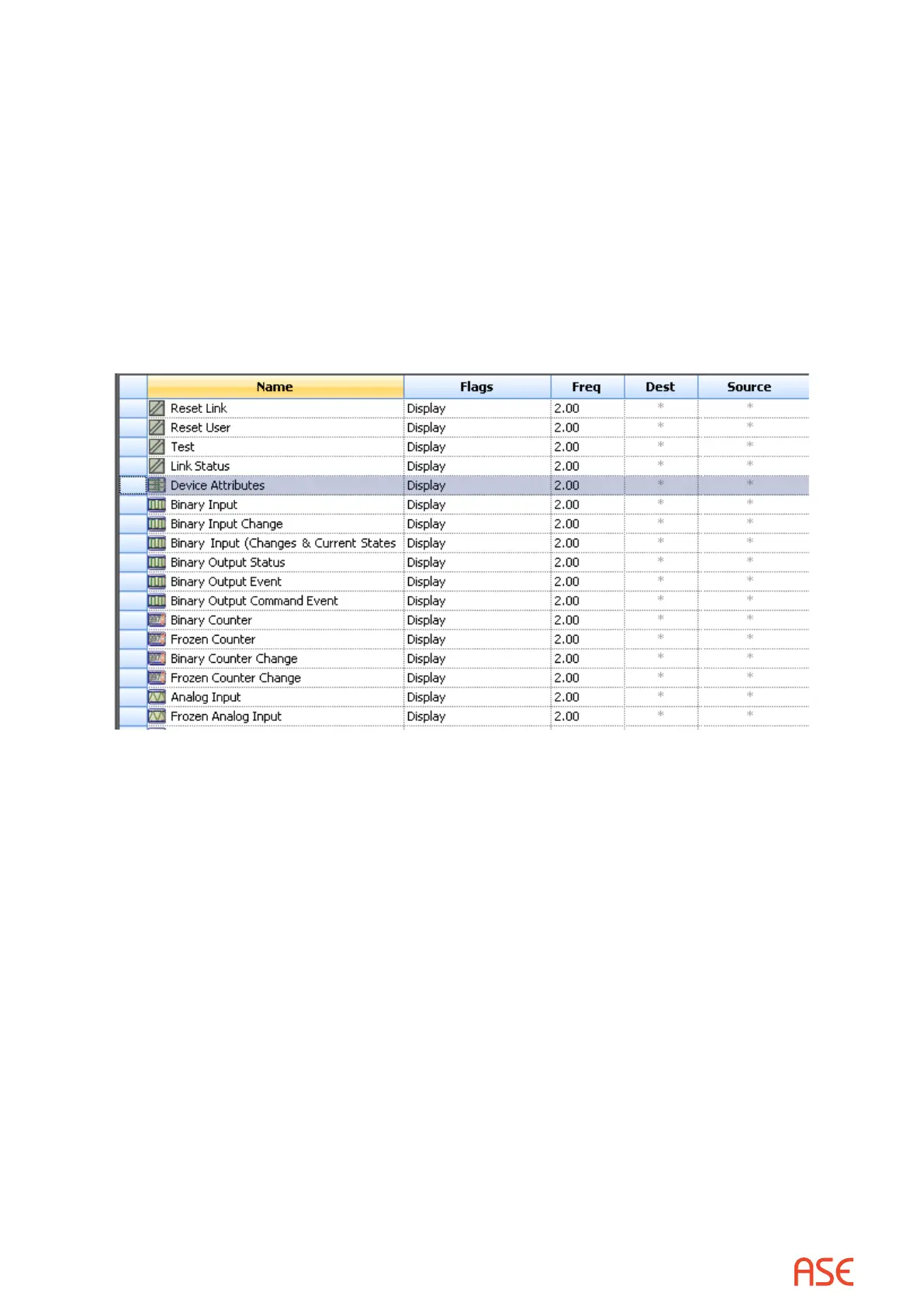

The Exchange List View shown below appears for DNP3 protocol.
Each line contains one exchange (message) that exists for the selected protocol, DNP3 in this
case. From this list, the user can:
• Edit an exchange, directly in the grid or utilizing a dialog
• Select a single exchange for transmission
• Create and delete exchanges
