ASE2000 V2 Communication Test Set User Manual 89
14.1. Master Mode
In Master Mode, the test set will operate as a Master and issue commands to and receive
responses from a remote device. To address the proper device, it will be necessary to congure
both the IP address and device (RTU/IED) address in the ASE2000. To set the network address

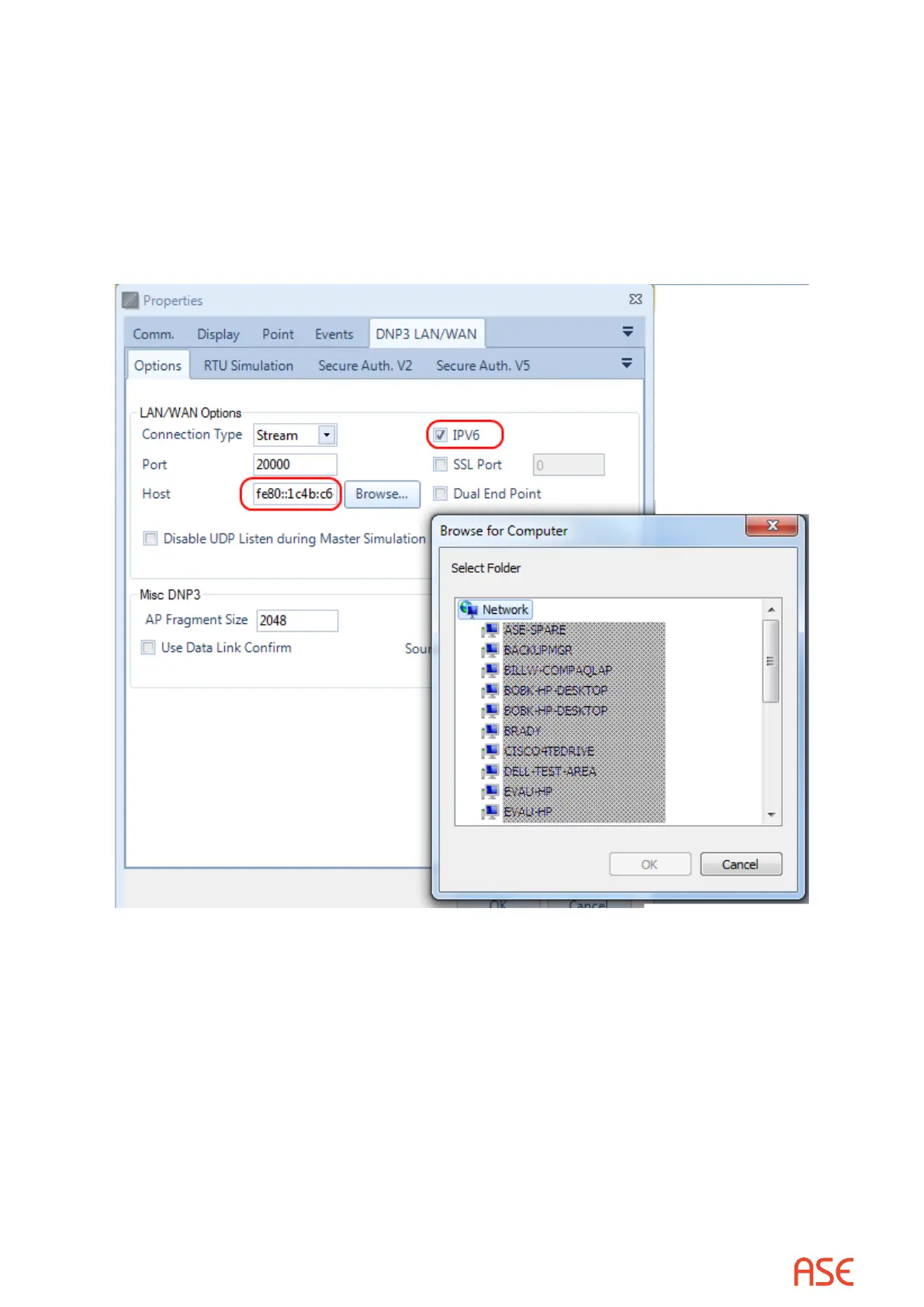

of the remote device, select Tools > Properties >DNP3 LAN/WAN>Options tab (or other protocol
as appropriate). Either Browse for the name of the remote (slave device) or enter the IP address
in the Host eld. Select IPv6 when entering Host addresses using the broader IPv6 address
space.
For DNP3 LAN/WAN, specify Stream for TCP or Datagram for UDP. Also for DNP3 LAN/WAN
the Port address can be changed but it is recommended that the default value of 20000 be
used. The protocol address (RTU address) of the device is specied the same as with the serial
version of the protocol on the Exchange List view by double-clicking on the exchange name or
setting the address on all exchanges using the “Tools > Properties > Protocol”
In Master Mode, there are no special connection requirements or connection restrictions. The
test set PC can be connected directly to the remote device, through a router, a switch, or a hub
as shown below.
