ASE2000 V2 Communication Test Set User Manual 176

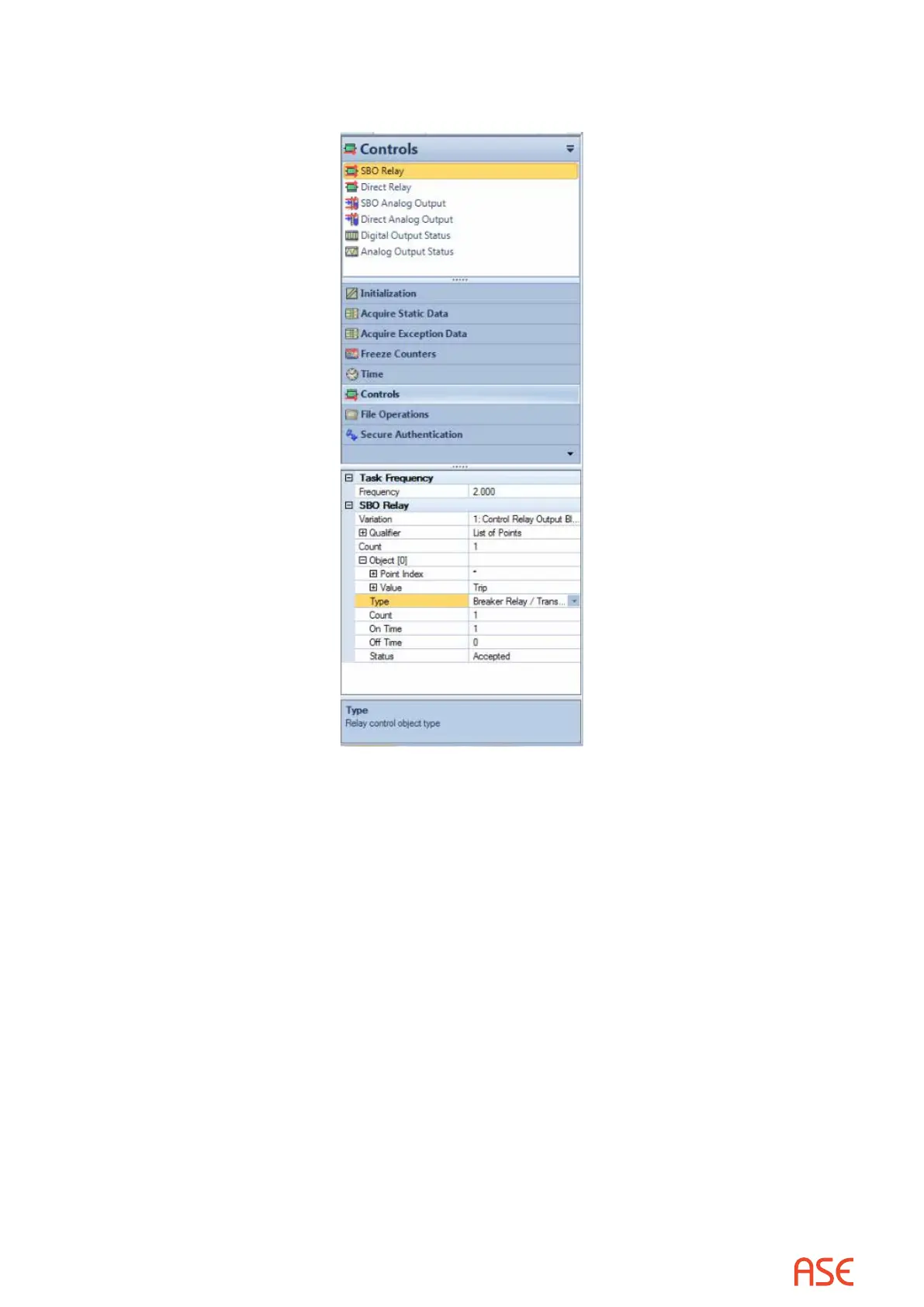

To issue supervisory controls in Task Mode Master Simulation, select the Controls task group
and provide the desired values as shown below.
26.7.3. DNP3 – Task Mode RTU Simulation
Task mode RTU Simulation is mostly automatic. Task Mode starts by selecting a pre-conîš¿gured
device, with point object types and indices, such as shown below, already deîš¿ned. The ASE2000
automatically generates scan responses consistent with data in this table. There is no need to
modify any exchanges. NOTE: If Binary or Analog control points are to be simulated, the points
must be deîš¿ned in the device conîš¿guration. For Binary points this would be Binary Input Status
points. For Analog controls, this would be Analog Input Status points as shown below.
