8.3.1. Exchange View Menu

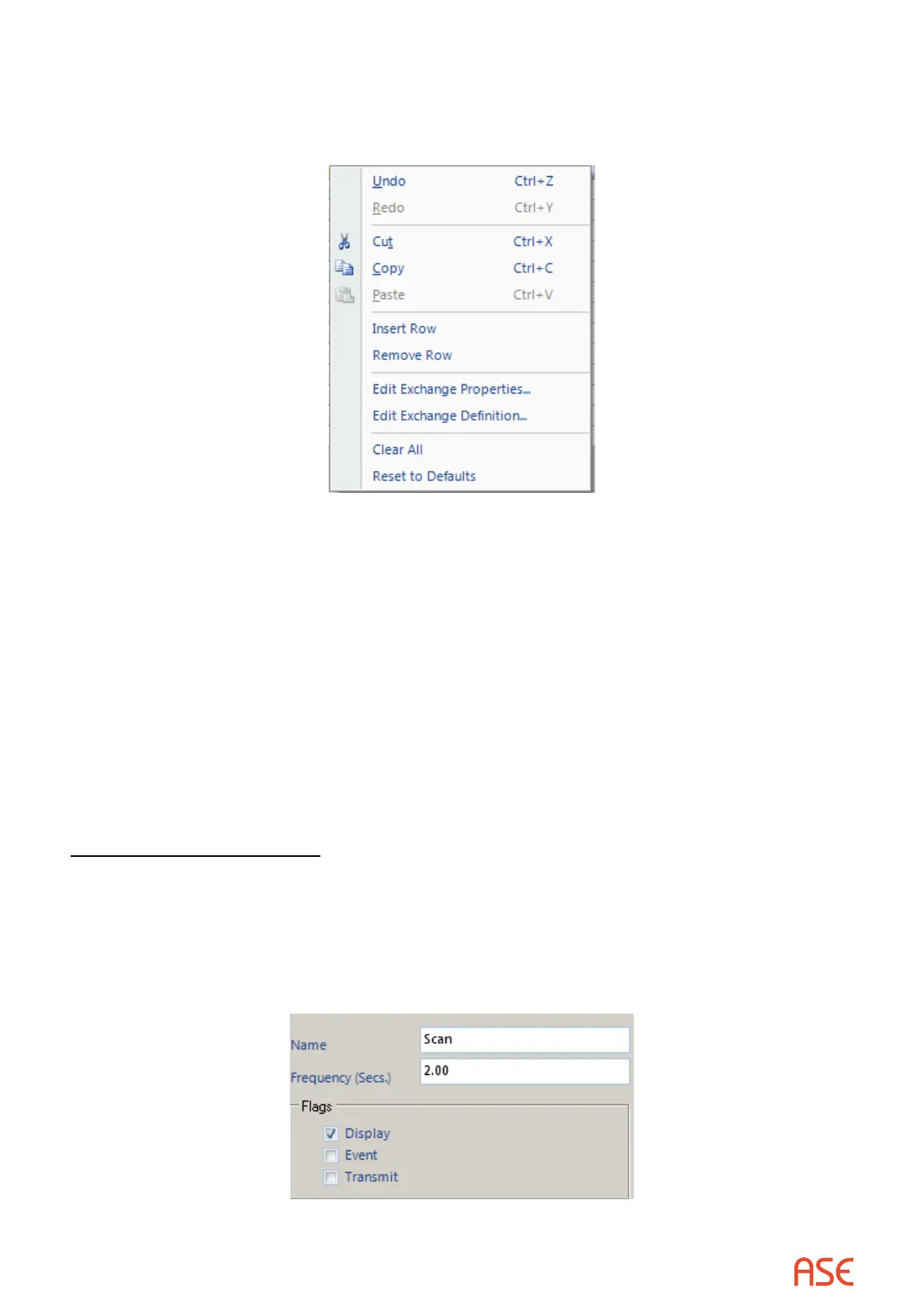

To edit an exchange, select the exchange and then the Edit pull-down menu or, alternatively,
right-click anywhere in the row. This will display an edit menu.
• Cut, Copy, Paste, Insert Row, Remove Row, and Clear All operate on the entire row
according to conventional meanings
• Since there is no concept of a “blank” exchange, Insert Row will present a list of exchanges
dened for the active protocol, requiring the user to select one to complete the Insert Row
operation
• Reset To Defaults erases all existing exchanges, replacing them with the default set for the
active protocol
• Edit Exchange Properties requests a menu for editing exchange information such as device
and point addresses and transmission frequency. More details are provided below
• EditExchangeDenition requests a menu for editing detailed structural exchange information.
It is useful primarily for adjusting scan messages for most legacy protocols. Editing the
exchange denition is not supported for IEC 60870-5-10x and DNP3; for these protocols, use
Edit Exchange Properties.
Edit Exchange Properties
The Exchange Properties Menu supports editing several key properties about each exchange.
However, since these properties can dier signicantly from protocol to protocol, most details
have been located in the protocol-specic sections.
The properties common to all protocols and shown in the example below are used for Master
Simulation mode.
