ASE2000 V2 Communication Test Set User Manual 146

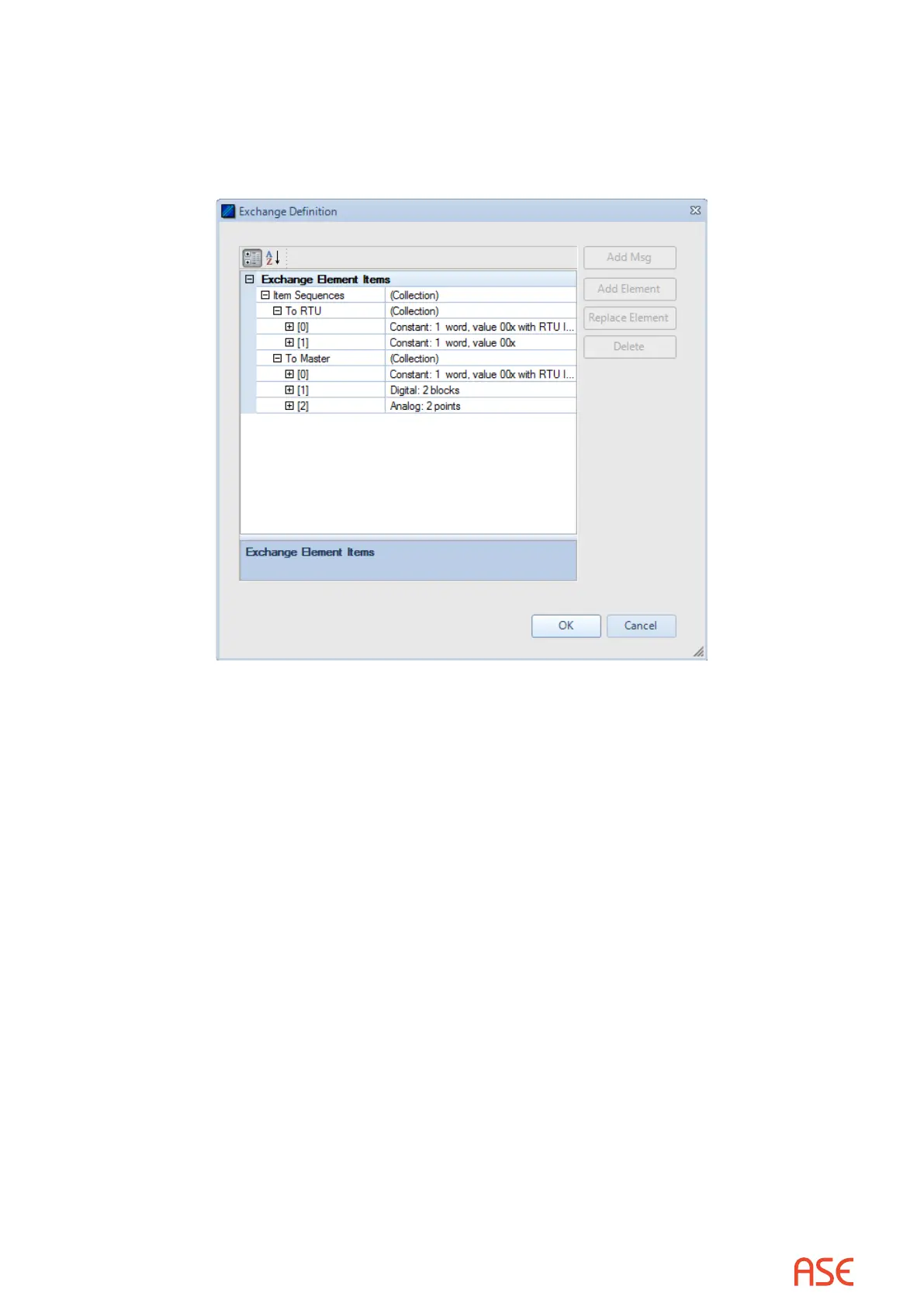

From the Exchange view, right-click on the line containing the Scan exchange and select
Edit Exchange Denition. Under the “To Master” section, select the element “Points: Digital:
2 blocks”, select “Add Element”, select “Analog”, then OK. Expand the updated element and
change the repeat count to 7. This indicates 7 “blocks” of Analog points, one point per block.
Conitel documetion refers these “blocks” as sections. Click OK.
The modied Exchange Denition for 24 Digital and 7 Analog points is shown above.
25.1.2. Conitel – Exchange Mode Set RTU ID and Group
The RTU ID and Group number can be set for all exchanges from the Protocol > Properties
display or individually on the Exchange List view.
25.1.3. Conitel – Exchange Mode Line Monitor
No additional setup is required. If cabling is correct Line Monitoring can be started by selecting
the Start button.
25.1.4. Conitel – Exchange Mode Master Simulation
If the Communication Properties, Exchange Denition, RTU ID, and Group number have been
congured, Master Simulation operations can be performed. No additional setup is required.
25.1.5. Conitel – Exchange Mode RTU Simulation
If the Communication Properties, Exchange Denition, RTU ID, and Group number have been
congured, RTU Simulation operations can be performed. No additional setup is required.
