ASE2000 V2 Communication Test Set User Manual 160
26.3.2. DNP3 Serial – Options Sub-Tab (Task Mode)
Additional DNP3 Serial protocol speciîš¿c properties are added to the Options sub-tab in the

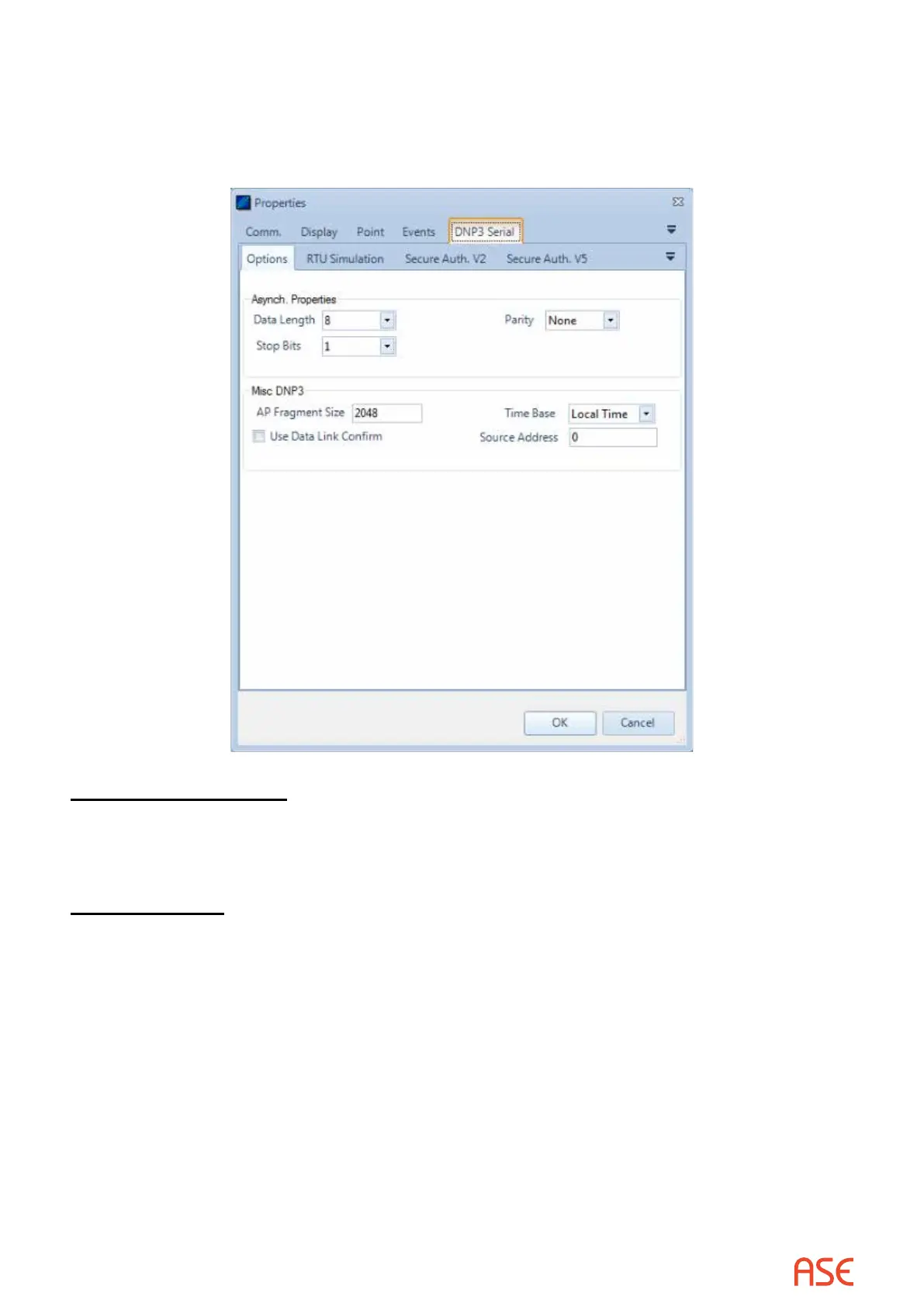

Properties menu below the DNP3 Serial tab. Following is the Options menu for DNP3 Serial in
Task Mode.
UseDataLinkConrm
In Task mode, checking this box selects the function code to transmit User Data (Conrm)
and leaving the box unchecked will transmit UserData(Conrm) when applicable. The setting
(Conîš¿rm or Not) is not used for processing incoming messages.
Source Address
DNP3 messages in Task mode will transmit this value as the source address. This source address
will be used for both Master and RTU simulation in Task mode only.
