ASE2000 V2 Communication Test Set User Manual 44
A Trial license is available for evaluation and does not require any ASE hardware.
A temporary license provides full functionality for a speciîš¿ed time. This is granted to customers
upgrading from a version 1 Test Set until the prior version 1 hardware is returned (typically a
PCMCIA card)
A temporary license is upgraded, via Email, to a full license on return of version 1 hardware. A
normal license allows full functionality with no expiration date
About provides the ASE2000 build date and version number
7.3. Tool Bar

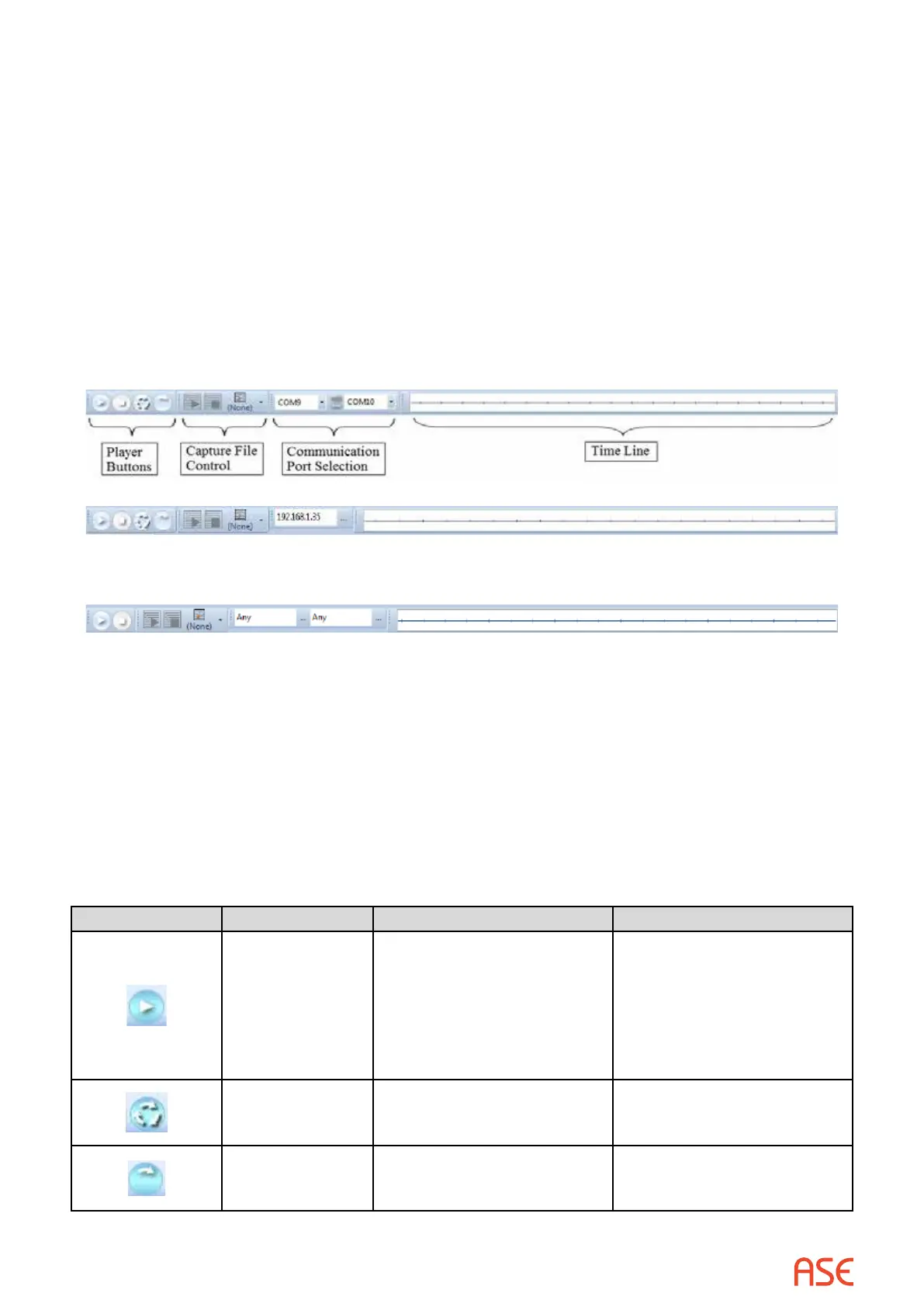

The Tool Bar is divided into four areas as shown in the following diagram.
Tool Bar for Network Protocols in Master or RTU Simulation Mode
Tool Bar for Network Protocols in Monitor Mode
Some areas may change based on current mode and protocol settings. Examples above appear
for:
• Master simulation mode for a serial protocol, and
• Master simulation mode for a network protocol, and
• Monitor mode for a network protocol
7.3.1. Player Buttons
Player Buttons are used to start and stop communication.
ICON Name In Exchange Mode In Task Mode
Start/Continues Starts Master Simulation,
RTU Simulation, or Monitor
operation, as conîš¿gured
In Master Simulation mode,
starts or continues repetitive
transmission of messages for
the current task. In Monitor
or RTU Simulation mode,
simply Starts or Continues
communication.
Send
Continuously
Starts repetitive transmission
of the selected (highlighted)
exchange
N/A
Send Once Transmits the selected
(highlighted) exchange once
Transmits messages
associated with the current
task once
