ASE2000 V2 Communication Test Set User Manual 184
The “To RTU” section has now been modied to request 8 points (Analogs) from the 1st Data
Dump port and 4 points (Accumulator) from the 2nd Data Dump port.
Edit the “From RTU” portion of the Data Dump exchange to specify the number and type of points
to be returned from each port. One of the confusing aspects of the Harris 5000/6000 protocol
is that there is port status information intermixed with the data returned from the RTU. So, for
each port, the RTU response message contains data values followed by port status for that port
followed by data values and port status for the next port. For the Data Dump response, this is

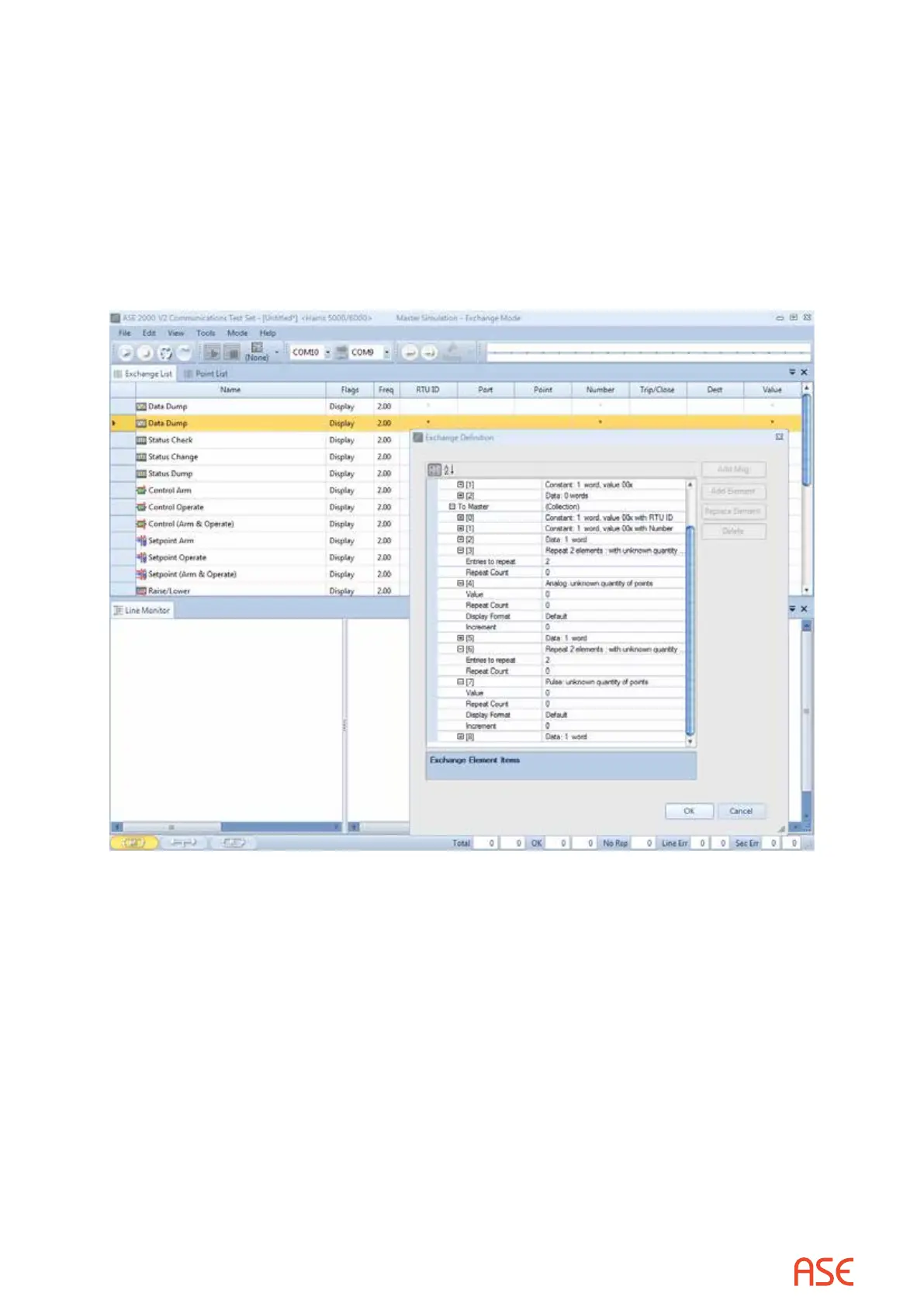

repeated for each port. The screen shot below shows the default exchange denition which is
one analog port and one pulse accumulator port.
Edit the entries as shown on the following screen shot to specify one analog port with 8 points
and one pulse accumulator with 4 points.
