ASE2000 V2 Communication Test Set User Manual 72

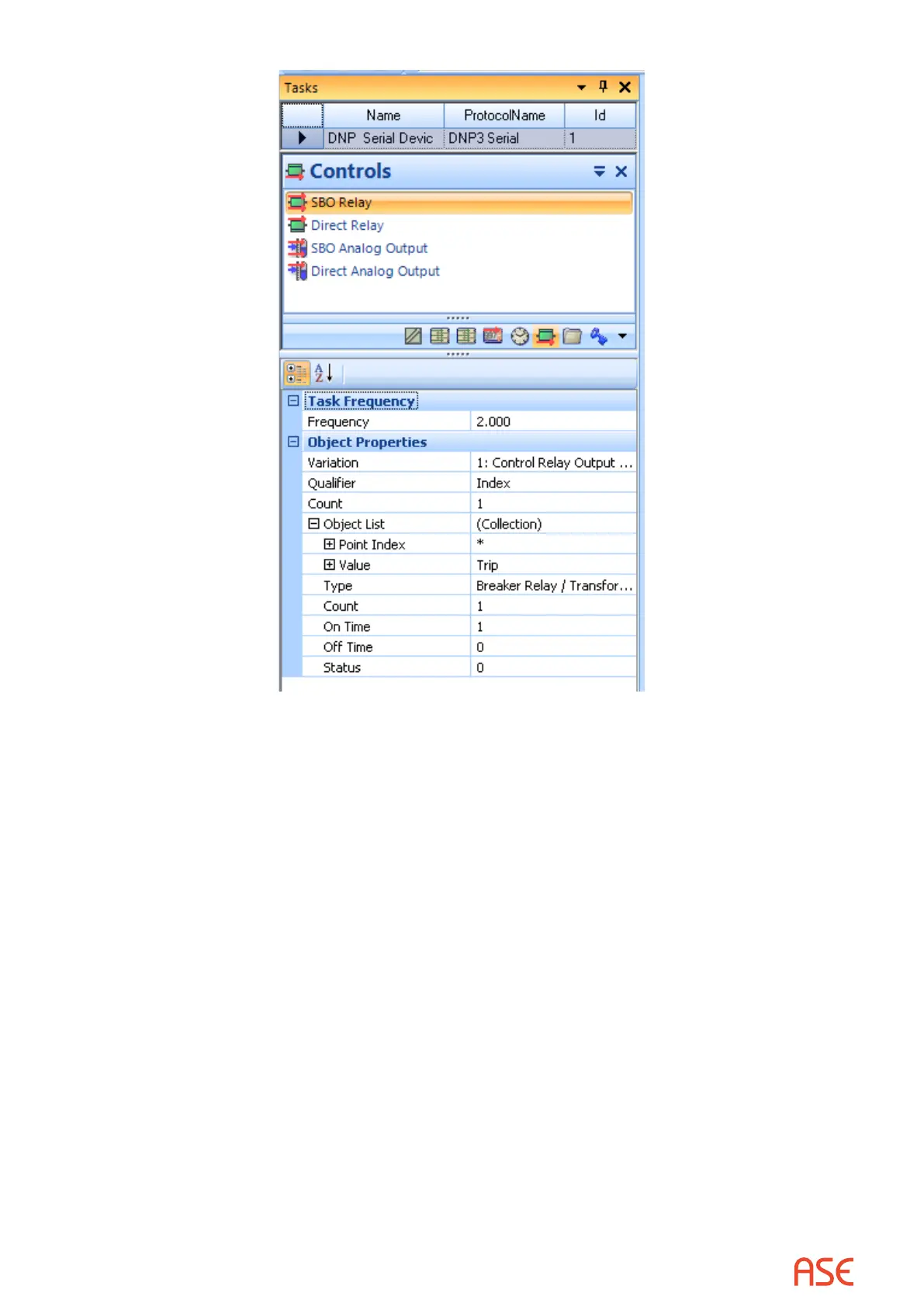

Control properties are more involved than those for most other exchanges. In this example for
DNP3 (and the same for many other protocols) the user must enter:
• Point index: The default, ‘*’, indicates that no index has been entered. The ASE2000 will
reject an attempt to start a control action until a valid address is entered
• Value: Choices in this example are trip and close. Names adjust as appropriate to the active
protocol and control type.
• On Time is part of a DNP3 control: It is also part of many other protocols, but not all. The eld
does not appear if not applicable to the active protocol. The default is 1 millisecond.
Once correct values are entered for the above properties, the control task can be activated.
This will control a single point. If the Start icon is selected, the same point will be controlled
multiple times.
