SH-300 User’s Manual Software Part
Page 47 of 103
In this interface, there are two lines of texts “LOGOUT SUCCESS”, “PRESS ANY KEY” (default
information).

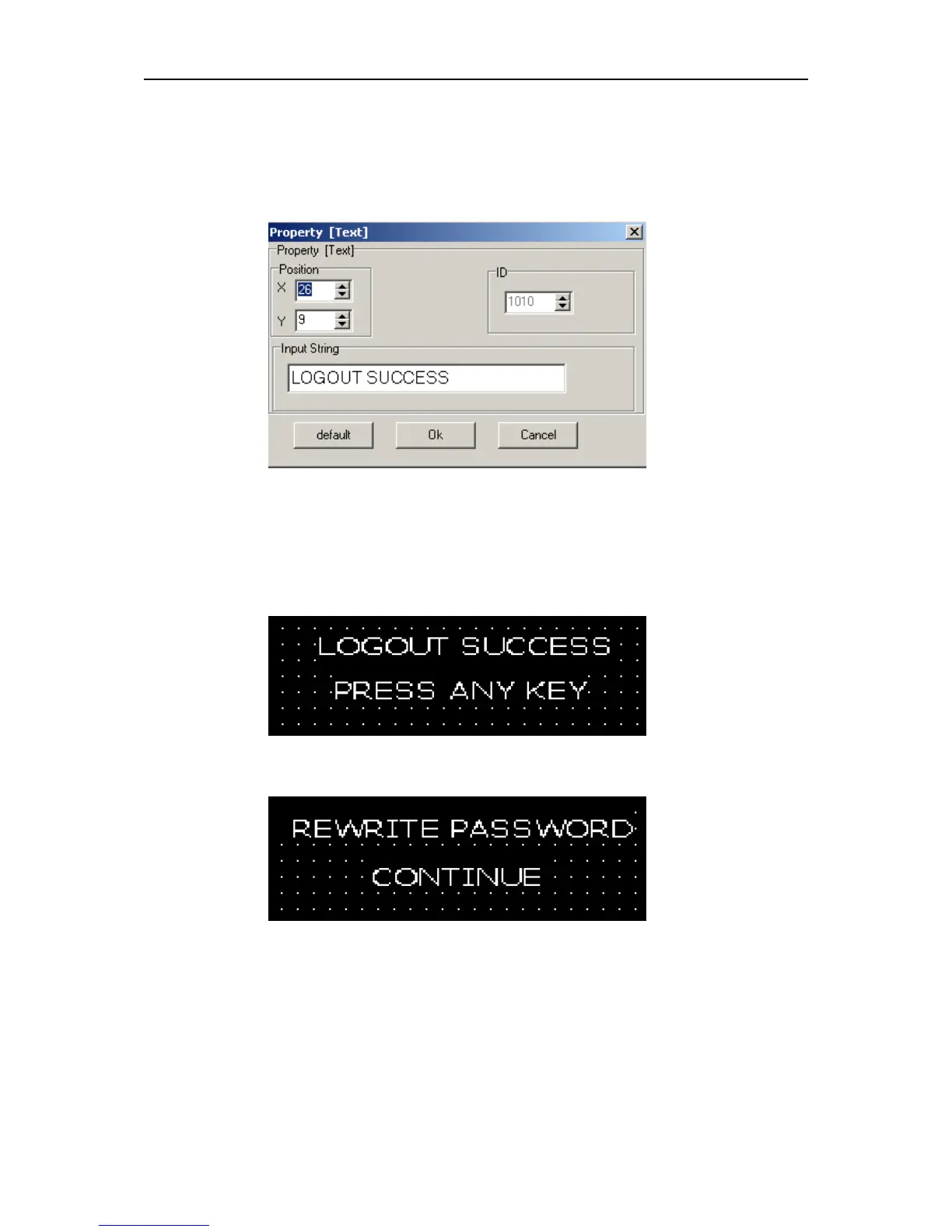

If the text and the position of the information in the screen need to be changed, cross “user menu
setting” check box and doubt click the modifying text (take “LOGOUT SUCCESS” for example),
the following prompting frame will be displayed as the following:
In this property frame, user can modify the X and Y coordinate position of the menu information (at
the top left corner, it is the original coordinate position (0, 0) of X and Y) and the contents of the
text information of the text frame (supporting multi language system). If “Default” is selected,
which means the default interface will be displayed when communication. The displayed texts are
“LOGOUT SUCCESS” and “PRESS ANY KEY” as in the following diagram:
Example: Substitute the text “REWRITE PASSWORD” for “LOGOUT SUCCESS” and
“CONTINUE” for “PRESS ANY KEY”. Then click “OK”. The following diagram will be displayed:
Click the “No alarm information” submenu, there being no alarm in the program prompting
interface will be displayed as in the following diagram:
