5.5.2 Output pinout
The table below lists the functions of each contact of the Output connector (DE9F):
Pin
Signal
1
Busy +
2
Ready +
3
Fault +
5
Common
4,6,7,8,9
-

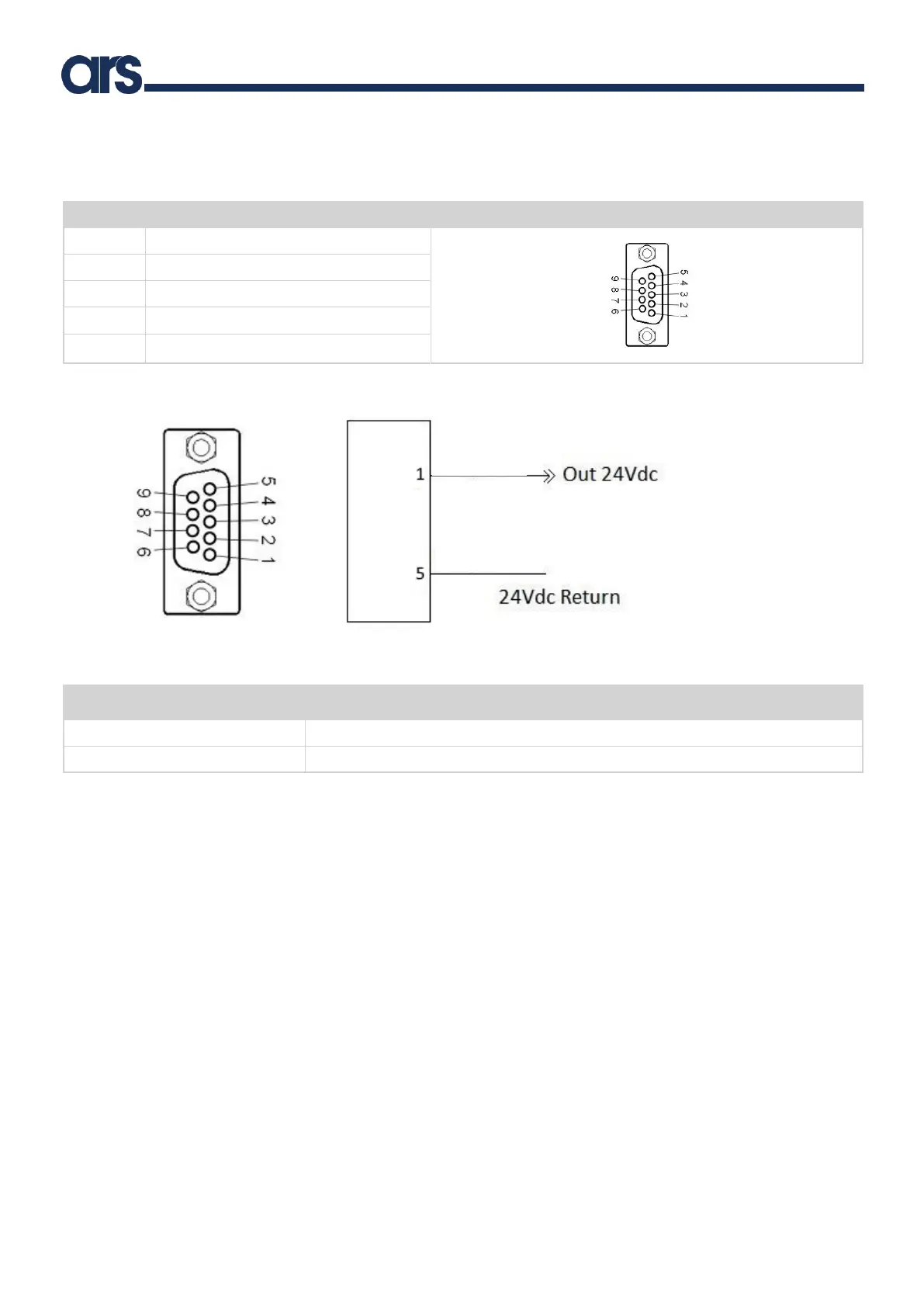

Below is an example of an output connection:
Output electrical specifications
Output power supply
0-24 VDC
Output current
Iout ≤ 250 mA
Caution:
Do not connect any 24Vdc
power supply
Common
Busy +
