7.2.1.4 Checking for wear of the relays and status of the fuses

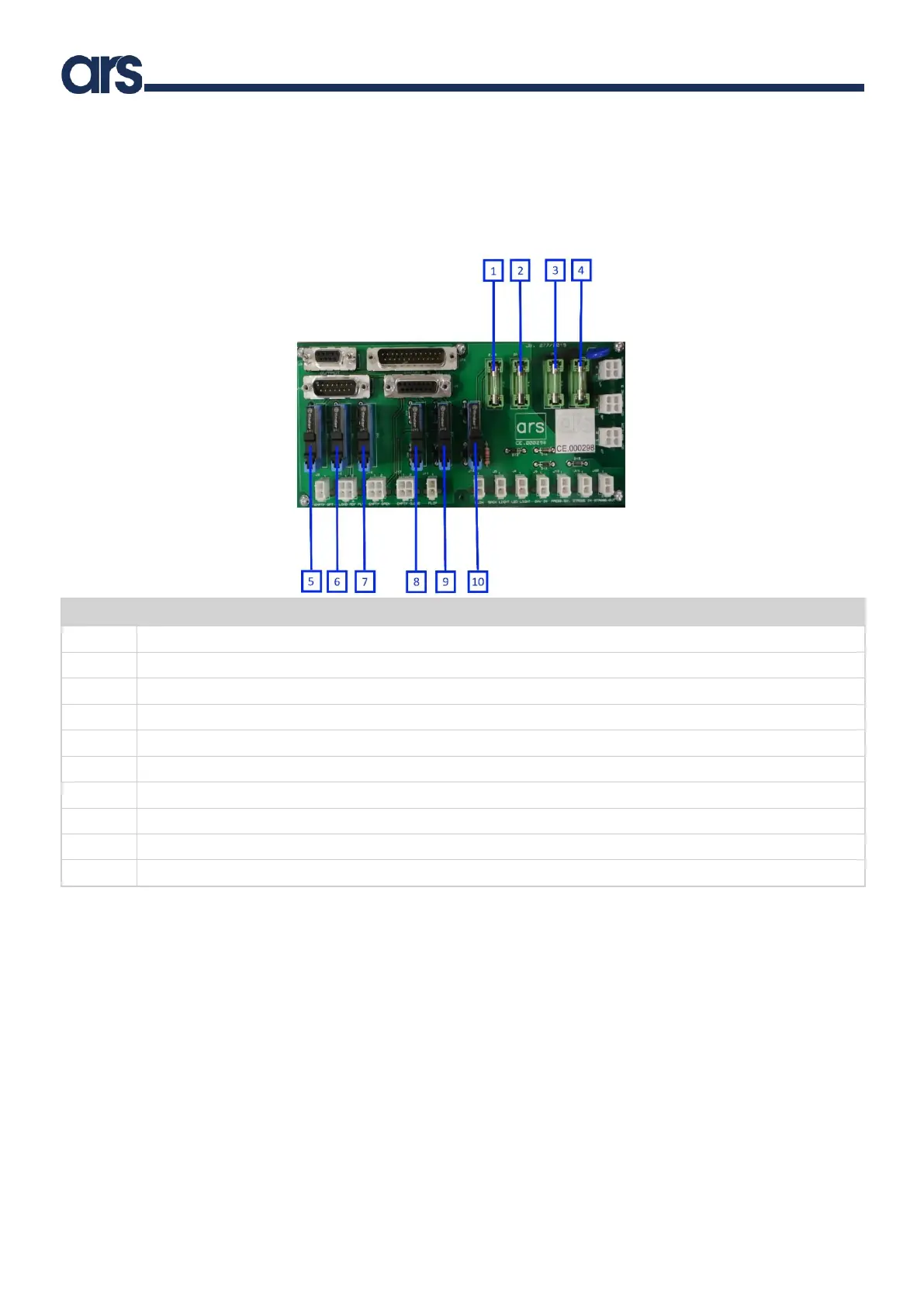

Visually check for wear of the relays.
There are: 3 static relays (which respectively command Busy, Flip and Air Blow) and 3 mechanical relays (which control the
“READY/FAULT” STATUS LED on the control panel, the Quick Emptying option and the backlight). There are also 4 protection fuses.
Position
Item
1
24Vdc protection fuse (2.5A)
2
Light protection fuse in strobe mode (2A)
3
24Vdc power supply unit protection fuse (1A)
4
Driver supply protection fuse (3A)
5
Quick Emptying
6
Ready/Fault status LED
7
Busy
8
Flip
9
Air Blow
10
Backlight
