ARS Flexibowl 200 - Description of the Control Panel

50 CHAPTER 6 - Controls and use
FlexiBowl® - Models 200 - 350 - 500 - 650 - 800

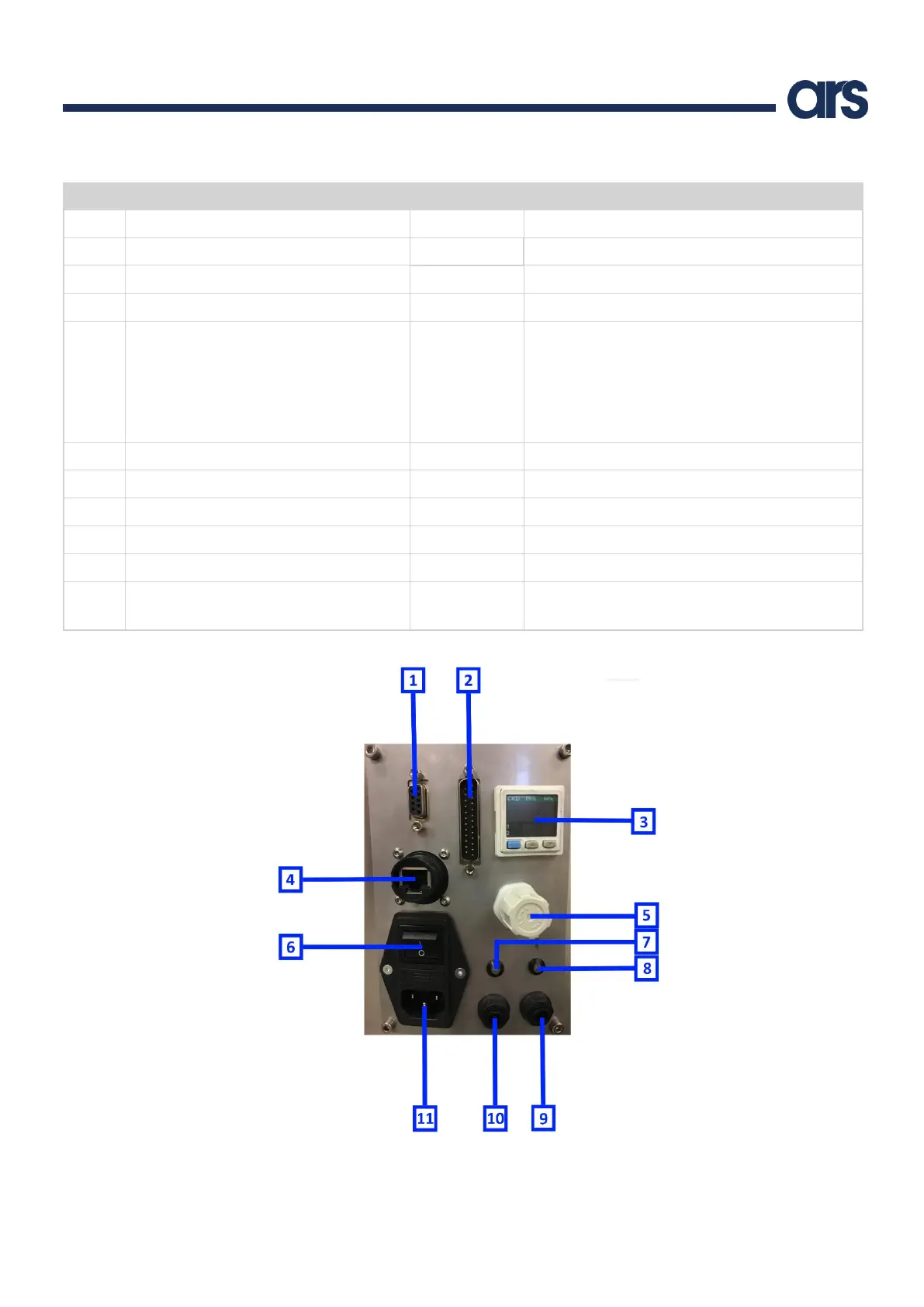

6.1 Description of the control panel
Pos.
Item
Connector
Notes
1
OUTPUTS CONNECTOR
DE9F
2
INPUTS CONNECTOR
DE25M
3
PRESSURE INDICATOR
-
4
ETHERNET PORT
802.3
5
PRESSURE REGULATOR
-
The pressure regulator controls the strength with
which the Flip unit bumps the underside of the
rotating disc, to flip the parts over.
Note: The pressure regulator does not control the
pressure of the Air Blow unit, if present.
Note: The pressure is indicated on the display (3)
6
AC SWITCH
-
7
STATUS LED
-
8
BACKLIGHT STATUS LED
-
9
COMPRESSED AIR CONNECTION
6 mm
10
AIR CONNECTION FOR THE AIR BLOW UNIT
6 mm
11
POWER SUPPLY CONNECTOR
110 - 220 VAC +/-5%
