84 CHAPTER 7 - Maintenance
FlexiBowl® - Models 200 - 350 - 500 - 650 - 800

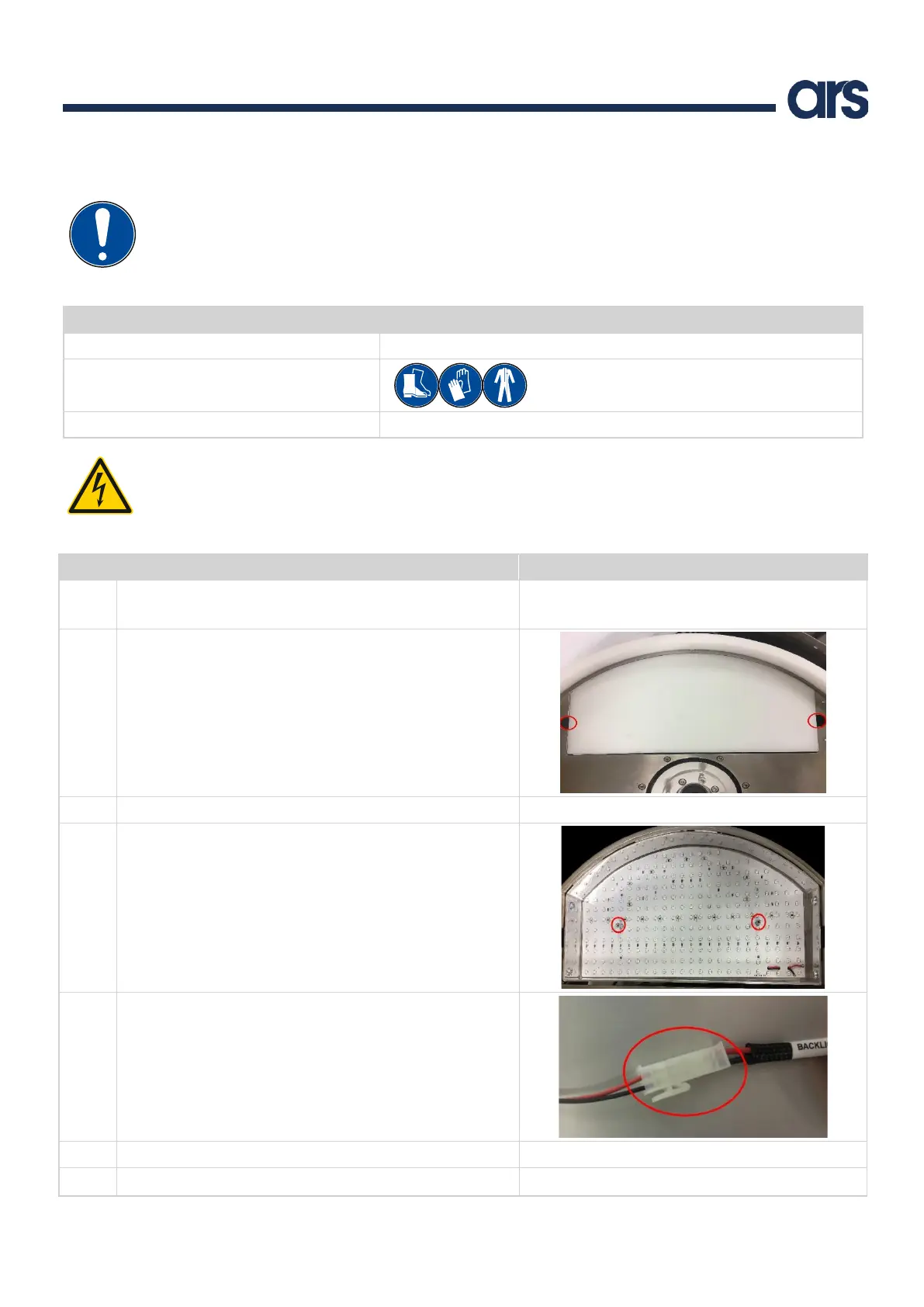

7.3.1 Replacing the backlight
IMPORTANT!
The infrared backlight shines an invisible light and therefore may not appear to be working. Use a camera with an
infrared filter to check that it is working properly.
Note: most smartphones can see infrared lights.
REPLACING THE BACKLIGHT
Operator qualification
Mechanical maintenance technician
PPE required
Tools to be used
Allen key, small Phillips screwdriver
CAUTION!
Disconnect the power supply before taking the cover off.
Proceed as follows to replace the backlight:
Step
Action
1
Follow the procedure described in Chapter 7.2.2 “Replacing
the Flexibowl® Rotary Disc” up to point 3
2
Remove the Lexan guard that protects the light (use the
side slots provided)
3
Remove the 4 screws that secure the light board to the surface
4
Remove the light board using the relative towers
5
Remove the light cable and disconnect the connector.
6
Connect the new light and install it in the correct position
7
Once replaced, reassemble all components
