44 CHAPTER 5 - Transport and Installation
FlexiBowl® - Models 200 - 350 - 500 - 650 - 800

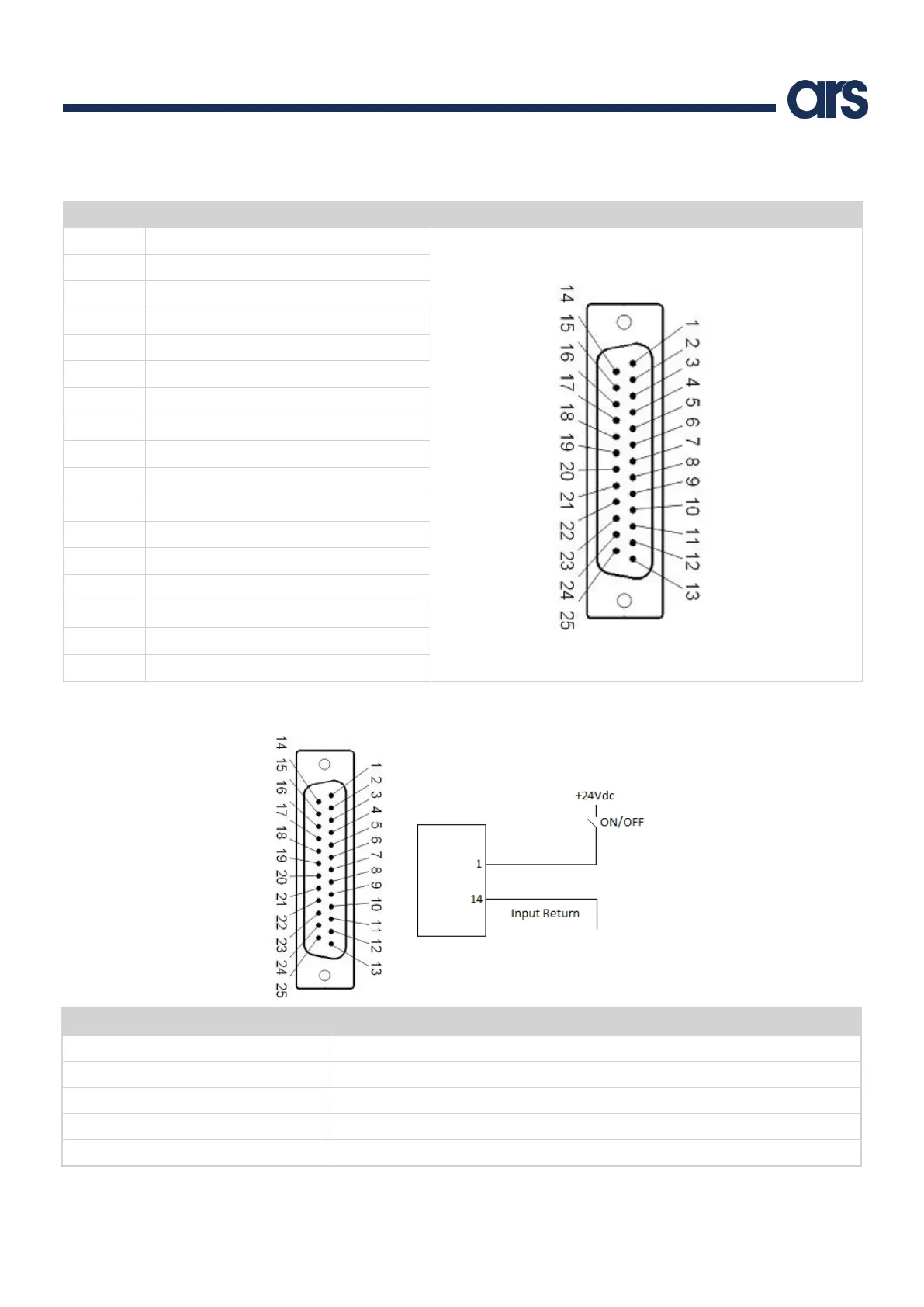

5.5.1 Input pinout
The table below lists the functions of each contact of the Input connector (Sub-Din 25M):
Pin
Signal
1
Move
2
Move-Flip
3
Move-Flip-Blow
4
Move-Blow
5
Shake
6
Backlight ON
7
Backlight OFF
8
Flip
9
Reset Alarm
10
Quick Emptying
11
Emptying Door open (Read-only)
12
Emptying Door closed (Read-only)
13
24Vdc out
14
24Vdc common
15
24Vdc out
16
Strobe Backlight +
17
Strobe Backlight -
Note: If the strobe light is purchased, it is the customer’s responsibility to provide correct 24Vdc power supply to Pin 16 and 17.
Below is an example of an input connection:
Input electrical specifications
power supply range
0 - 24 VDC
OFF status range
<1 VDC
ON status range
12 - 24 VDC
current range
0 - 9 mA
ON status current range
2 - 9 mA
