18

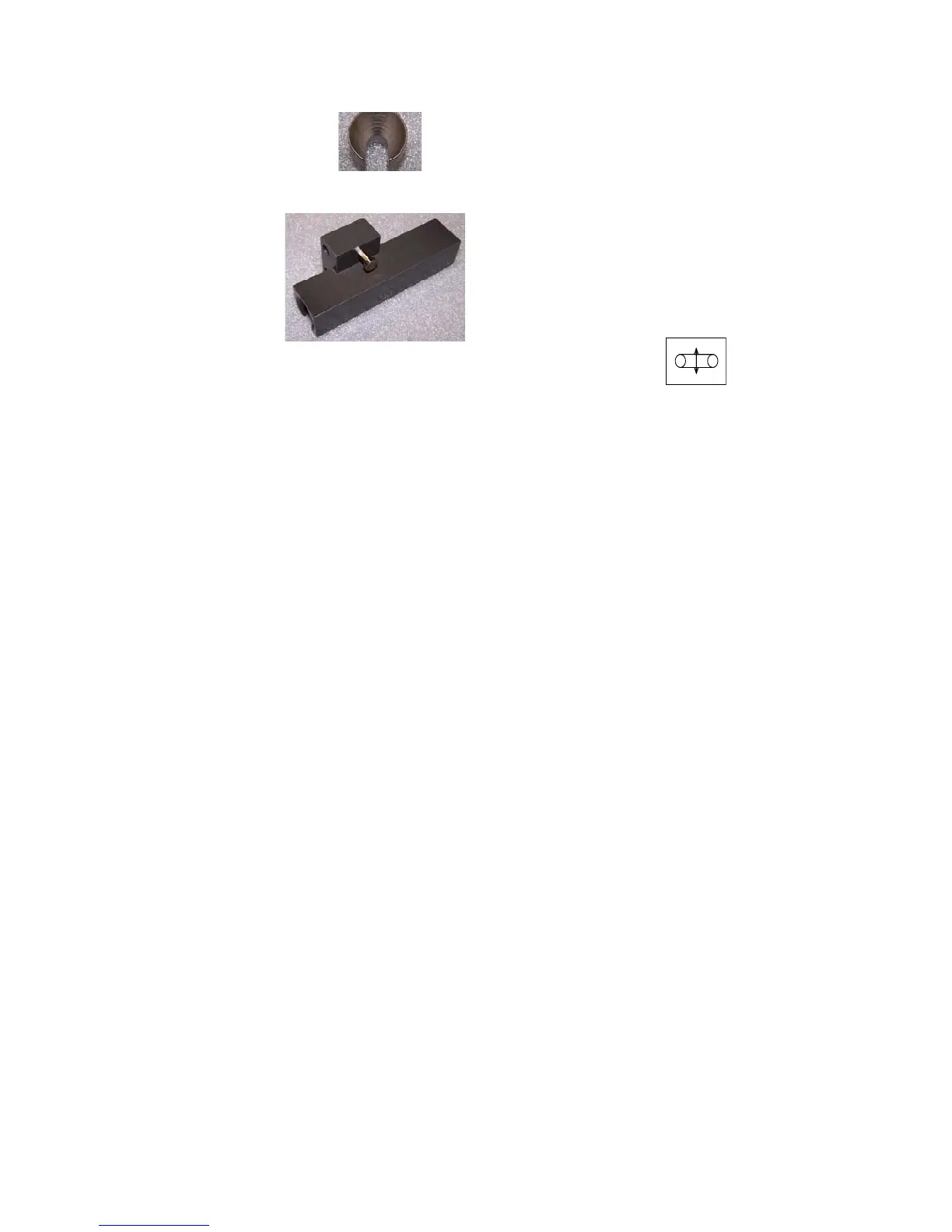

E. Select discharge guide based on wire size
8) To open the feed rollers or belts press the “Feed Rollers” button.
The EMERGENCY STOP button must be released, the guard closed and MASTER
START pressed before the Feed Roller button will function To release the Emergency Stop
button rotate the button clockwise until the button pops up.
9) Insert the wire though the guides and position the leading end of the wire at the right end of the
feed tube. The CS 326 B will feed the length of wire set in the Machine Configuration (see page
44), and cut it off to qualify the end of the wire for first piece accuracy. This will happen each
time the Feed Roller / Wheels are opened and closed or the Emergency Stop button is used.
Close the feed rollers or belts by pressing the “Master Start and Feed Rollers” buttons.
10) Select the “Single” mode (#7) and press the “Cycle Start” Button. This will produce one sample
piece. Examine the part, make necessary adjustments, and repeat as necessary. When results are
satisfactory select “Auto” mode press “Cycle Start” to commence production.
Pieces made In Single Or Step are not counted as part of the total quantity
WIRE AND STRIP LENGTH SETTINGS
Wire (#1) and strip (#2) length are entered by double clicking on the appropriate field, when doing so
it will turn blue, type in the desired values and press ENTER.
STRIP STROKE (FULL OR PARTIAL)
Strip Stroke (#3) length is entered by double clicking on the appropriate field, when doing so it will
turn blue, enter the desired values and press ENTER. If the value is the same as or longer than the
strip length the slug will be pulled of completely. If the value is less than the strip length value the slug
will only be pulled that far leaving it on the end of the wire. Elasticity of the insulation may determine
the pull required to break the slug free from the wire.
STRIP METHOD SELECTION
The strip method option (#9) allows the ability to select several types of stripping methods.
