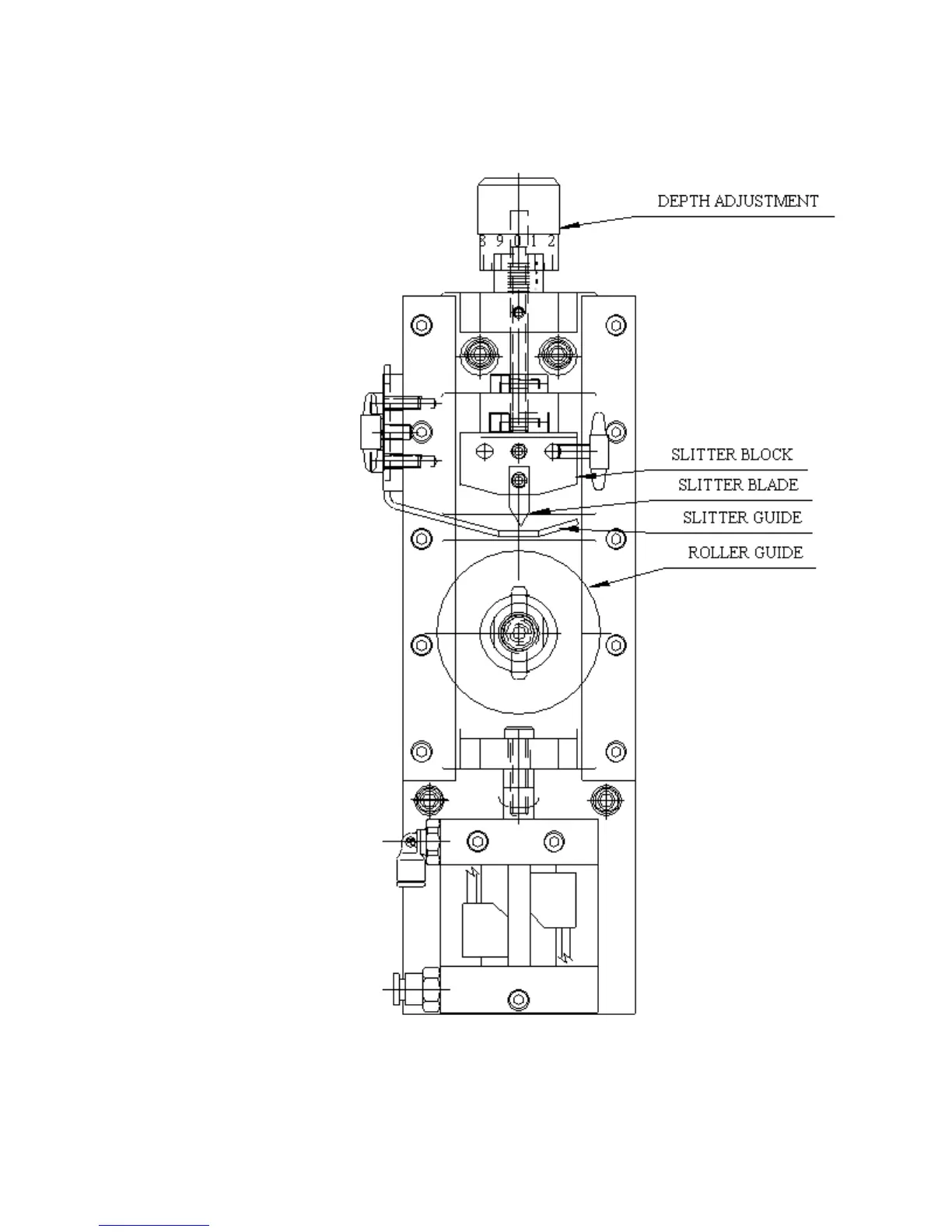

SLITTER TOOLING SET UP
The slitter has three pieces of
tooling which are customer
variables.
1. The ROLLER GUIDE
which is sized to the width
and height of the wire
2. The SLITTER BLOCK,
which is set up with the
proper slitting blades.
3. The SLITTER GUIDE
which holds the wire in the
ROLLER GUIDE.
Contact ARTOS for sizing of
customer variables.
TO SET-UP THE TOOLING:
1. Install the slitter block on the
guide pins and secure with
the thumbscrew.
2. Install the guide roller on the
shaft and secure with the
thumbscrew.
3. Install the slitter guide and
adjust the height so it just
clears the top of the wire. The
wire should not be able to
twist out of the horizontal
plain. Secure with the
thumbscrew.
4. Set the depth of cut using the
micrometer adjustment at the
top. Set the depth so the
slitter blade just parts the
web. To deep will cause
excessive drag and may
contact the roller guide
causing damage to both
pieces.
NOTE: Remove all tooling when not slitting
