CONFIGURATION
Configuration is used to configure the CS 326 B with its options as well as set-up associated position
and timing values.
Click on the wrench symbol to open the tabbed menu:
PROGRAMMING MACHINE OPTIONS

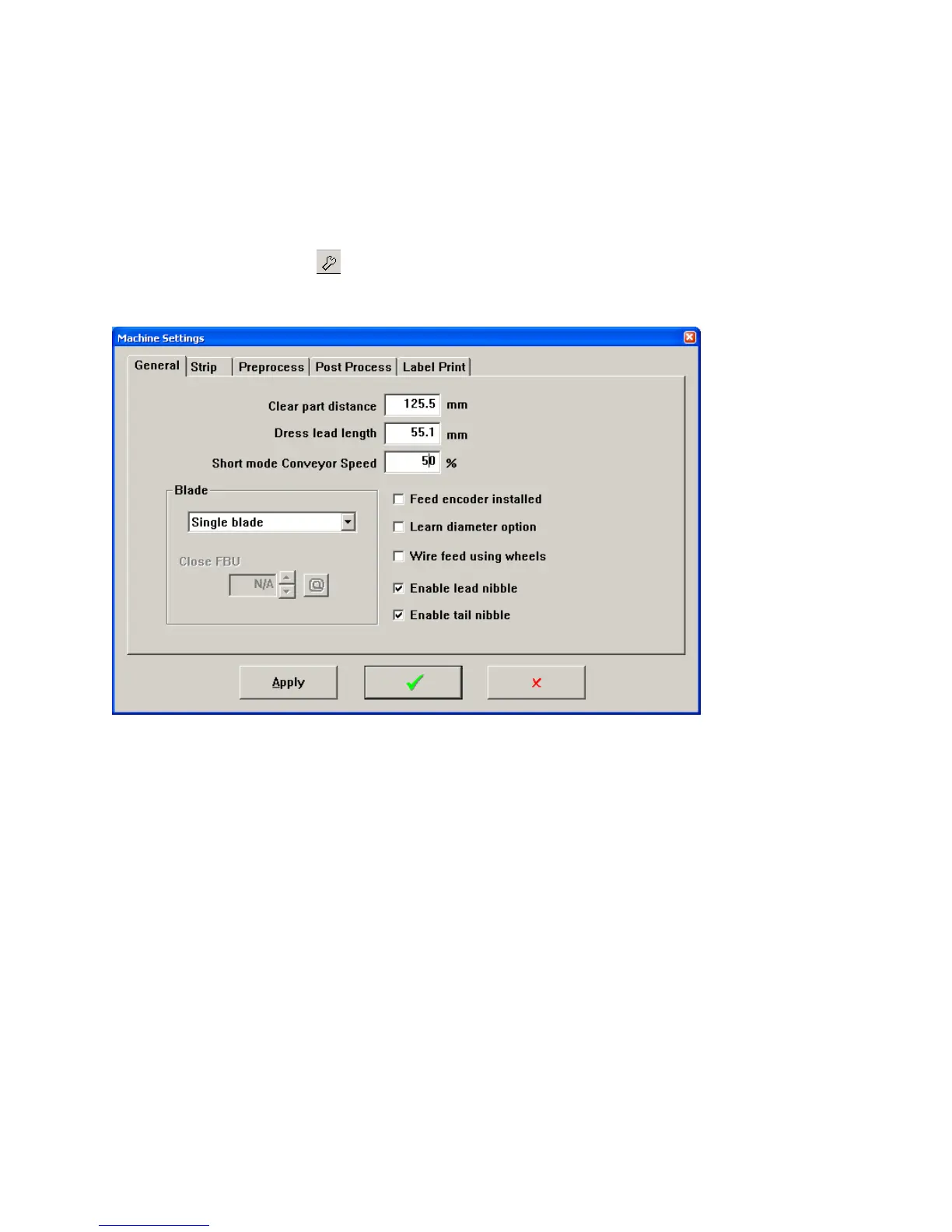

The General tab is information about the basic unit;
Blade type selection for configuring the type of blade holder mounted on the machine.
o Single is one pair of blades that cut and strip the wire
o Double has one pair of pivoting cut off blades and one pair of stripping blades
o Three blade 16.5mm has 3 or more pairs of blades 1 pair of cut off and separate
stripping blades for each end of the wire.
o Three blade 21.0mm has 3 or more pairs of blades 1 pair of cut off and separate
stripping blades for each end of the wire.
o Pneumatic is similar to the Double but with air driven pivoting devices
o Pneumatic COAX This is for a pneumatic coax cable cutting and stripping tool
holder assembly. Part number 4-145880
