50
Short mode conveyor speed is the percentage of full speed at which the out feed will turn in
short wire mode.(the out feed does not close when in short wire mode and only acts as a
conveyor for parts long enough to reach it)
STRIP MODE AND BELT OPENER PROGRAMMING

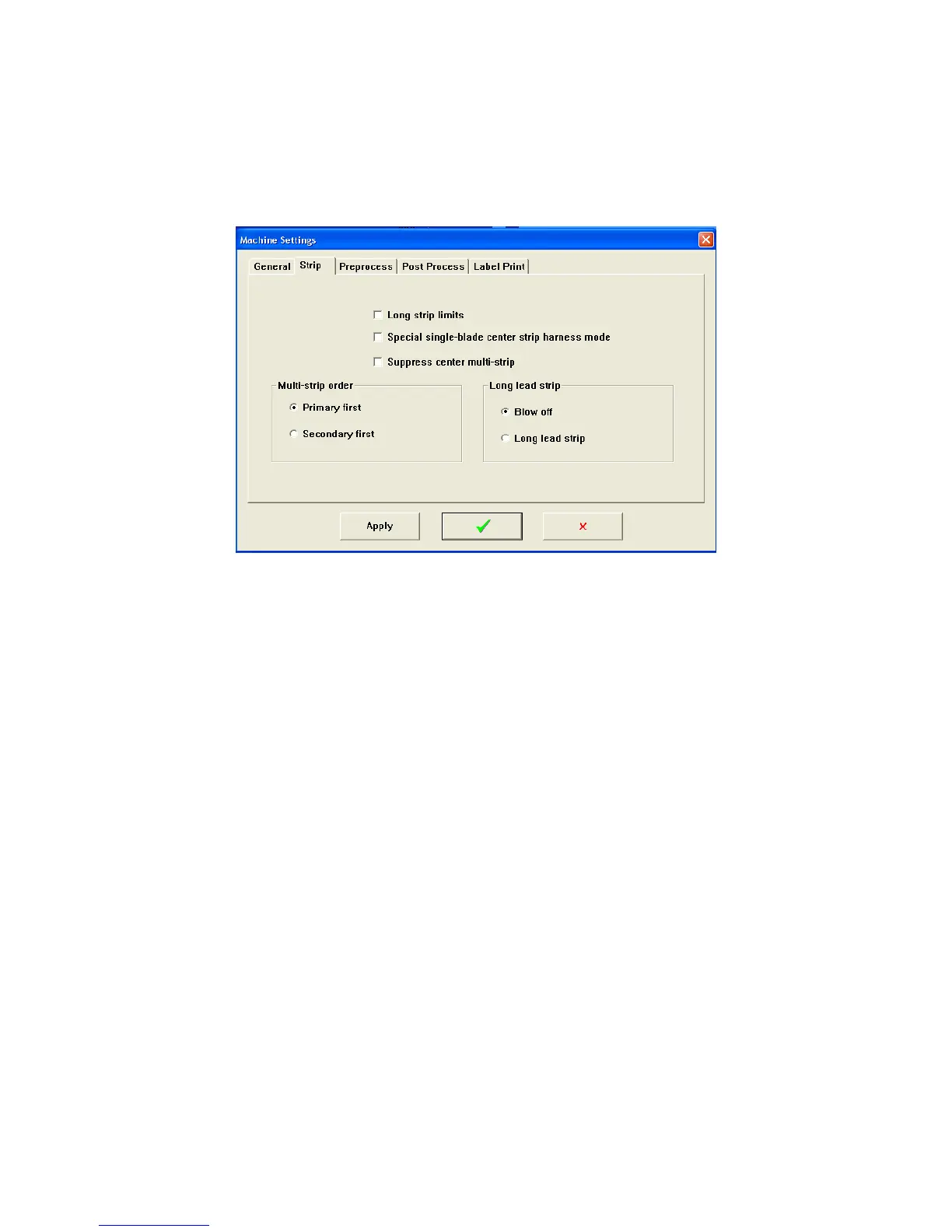

The Strip tab configures the variable stripping methods available
Long strip limits allows for the maximum strip length on both ends of the wire. When not
checked the Lead end strip length is limited to 2”- 50,8 mm
2
Special single-blade center strip harness mode allows for multiple window stripping where
the insulation is displaced but not removed (perf. only). This method of window stripping is
obsolete. The new method is to use the pre-process called Slit+Perf. If your software does not
have this process, upgrading the software is recommended.
Suppress center multi-strip is a form of window stripping used in conjunction with a slitter.
In this case the insulation is cut but removed in a secondary operation (slit and perf.). (see 94).
This method of window stripping is obsolete. The new method is to use the pre-process called
Slit+Perf. If your software does not have this process, upgrading the software is
recommended.
Multi- strip order is the selection for the order in which the strips occur when using Double
Strip. The one that is selected will occur first
Long lead strip
o Blow off is a jet of air blown across the blade as they open to eject the stripping scrap
usually used with Three blade options. The air blast is timed to coincide with the
opening of the blade assembly during the strip cycle. This can help keep the blade area
clear of stubborn stripping slugs. On shorter wires the time is such that the air blast
stays on through the whole cycle.
