o SK blade is for the pneumatic steel cutting blade holder assembly. Part number 4-
144407
Feed encoder installed is checked when the Slip and Sag detection device is attached
(optional). Do NOT check this if your machine has a wire measuring encoder. This encoder
will detect an interruption in the wire supply. The cause of which may be a knot or a snag in
the wire supply. It will also detect a material run out condition.
This option may be sensitive to certain length, acceleration and feed rate combinations.
Sensitivity levels are adjustable through the configuration window.
The tension wheel under the encoder wheel will lock open when pushed down to load the
wire. Be sure to release the tension roller before running by pulling out the lock pin located in
the lower right corner. Failure to do so will result in a slip detection error.

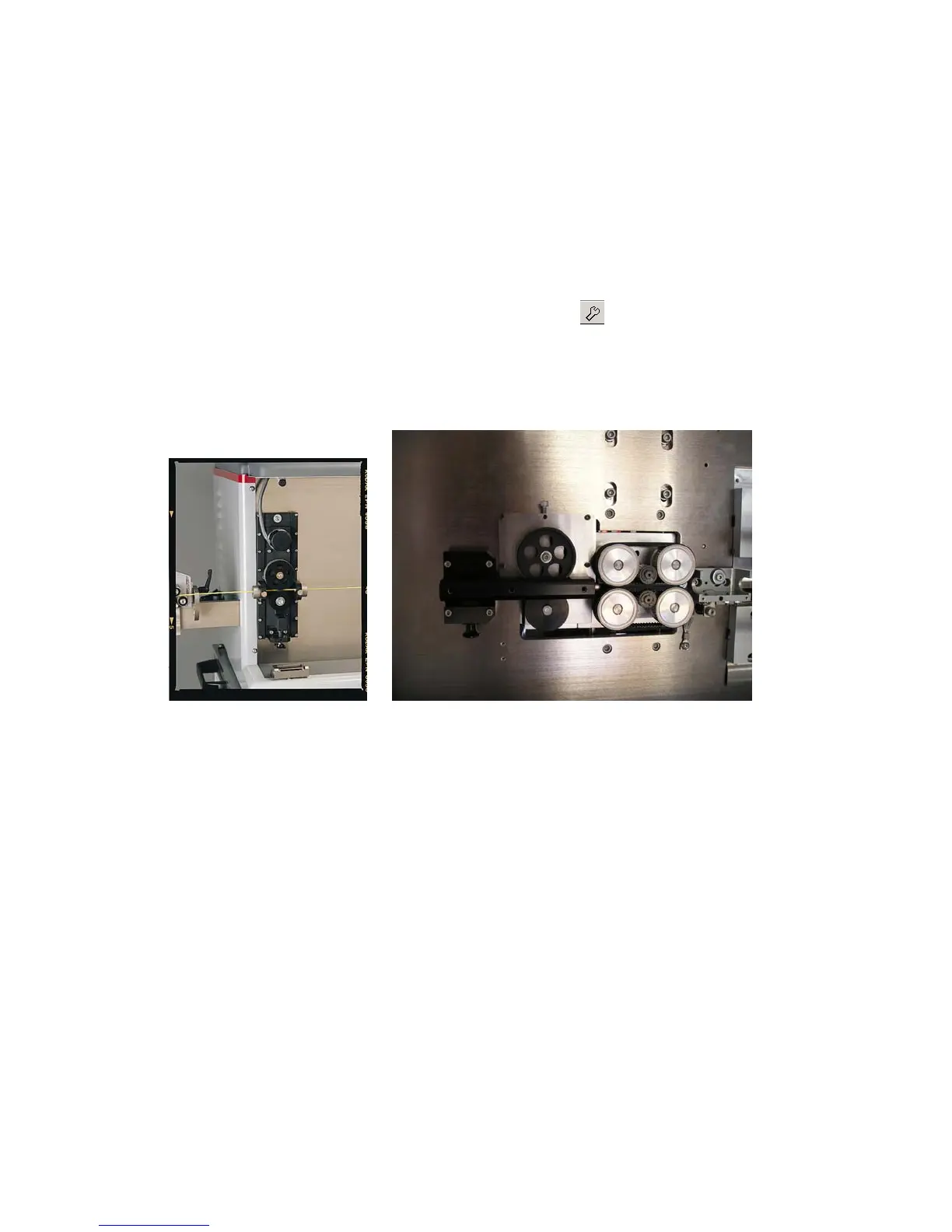

Slip and snag detector Wire measuring encoder (do not check the box)
Wire feed using wheels is checked when wheels instead of belts are used for the wire
feeding.
Wire feed using wheels is checked when wheels instead of belts are used for the wire
feeding.
Enable lead / tail nibble When these are checked the machine will obey the maximum slug
length programmed in the wire properties screen. If the maximum slug length is less than the
programmed strip length the machine will remove the slug in pieces with no length greater
than the maximum slug length.
Clear part distance is the distance the outfeed drive will travel when discharging a finished
part. This occurs at the end of the programmed quantity or on every part when Auto outfeed is
selected.
Dress lead length is the length of wire that is cut of the leading end of the wire at the start of a
feed to justify the starting end of the wire. (min .5” - 12.6mm
