POST PRCOCESS CONFIGURATION
Post-Process configures the installed post process devises.
Besides the values defined below there are two other parameters in the General tab that can have an
effect on the how the post process operates
Clear part distance is the distance the outfeed drive will travel when discharging a finished
part. This occurs at the end of the programmed quantity or on every part when Auto outfeed is
selected. Making this distance longer will cause the post-process device to operate for a
longer time. For example on a CD-11 coiler, making this distance longer will cause the bowl
to turn for a longer time thus pulling the end of the wire out of the tube and into the coil.
Dress lead length is the length of wire that is cut of the leading end of the wire at the start of a
feed to justify the starting end of the wire. (min .5” - 12.6mm). For many devices if this length
is set too long or short, the justification piece will get stuck somewhere in the outfeed.

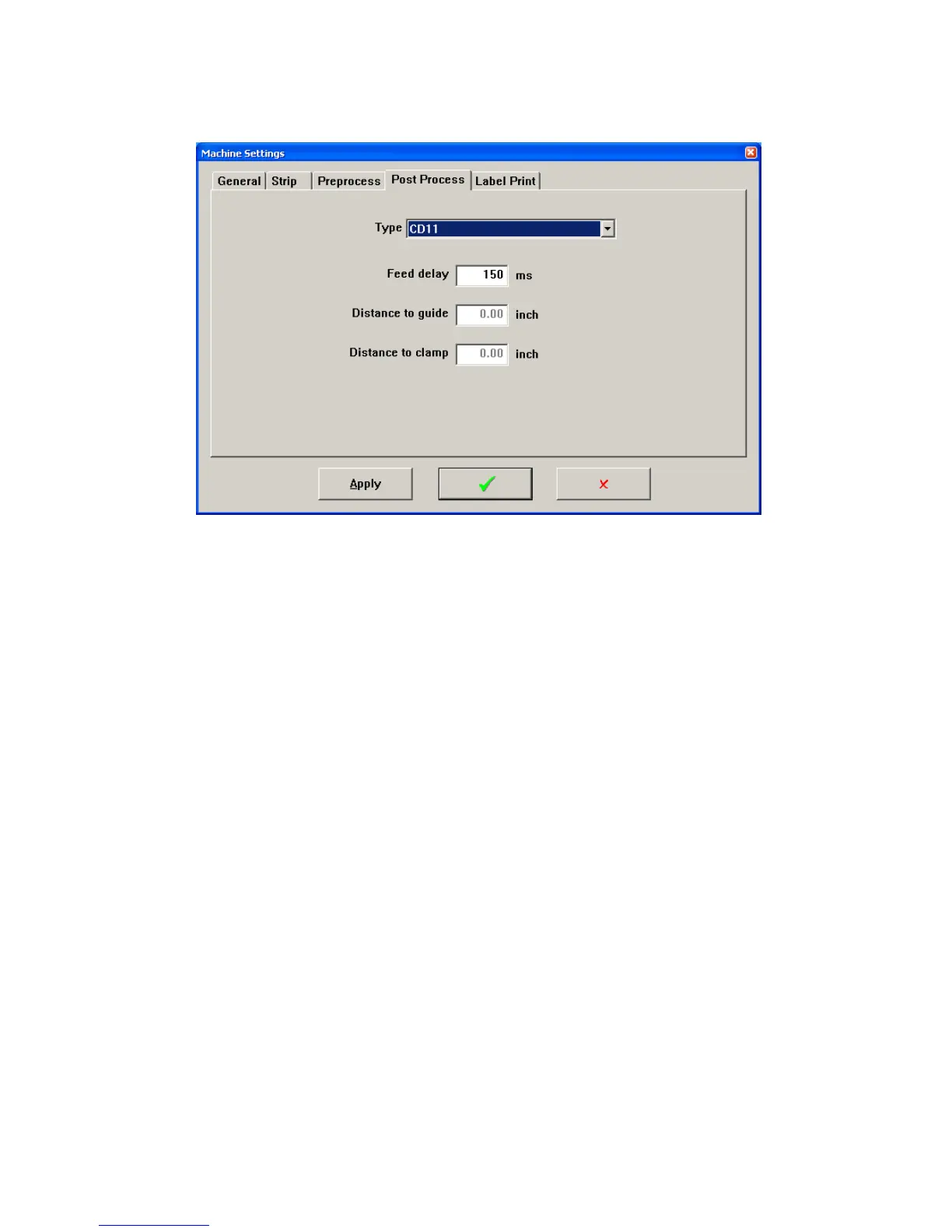

Items on the post process tab
Feed delay is the delay between parts to allow the post process to complete
o None is no post process installed
o CD11- Artos twin coiling bowl device.
o CD15 - Artos pin coiler
o CD15 with long lead - Artos pin coiler for use with non-standard table
o AL – AL1500 to AL10000 linear collectors OR Schleuniger WS1000. The feed delay
time controls how long the machine waits between parts for the collector to get the wire
dumped. Output A41 activates for the same period as the feed delay time.
o MS type – Maxi-Seal custom unit
