 Distance to guide
 Distance to clamp
o KRI – not used on CS326
o GR1–
o GR2– Special coiler for Grundfos. GR1 and GR2 work in conjunction with each other.
When GR1 is selected as the Post process in the part properties window, the machine first
feeds out the length of wire programmed in GR1distance then waits for an input, then
feeds out the remainder of the programmed part length. When GR2 is selected as the Post
process in the part properties window, the machine first feeds out the length of wire
programmed in GR2 distance then waits for an input, then feeds out the remainder of the
programmed part length.
 GR1 distance – feeds this amount when GR1 is selected
 GR2 distance – feeds this amount when GR2 is selected
o
o CD16 - not used on CS326
o CD17 – not used on CS326
o KRI-2 Ramatech KRI-800T coiling system.
o CP1250 - Schleuniger CP1250 coiling device.
o MINCO -
 Wait for A16 input
 Feed the amount programmed in Feed 1 distance
 Wait for A16 input
 Feed the amount programmed in the Feed 2 distance
 Wait for A16 input
 Feed the remaining length of wire.
LABEL CONFIGURATION

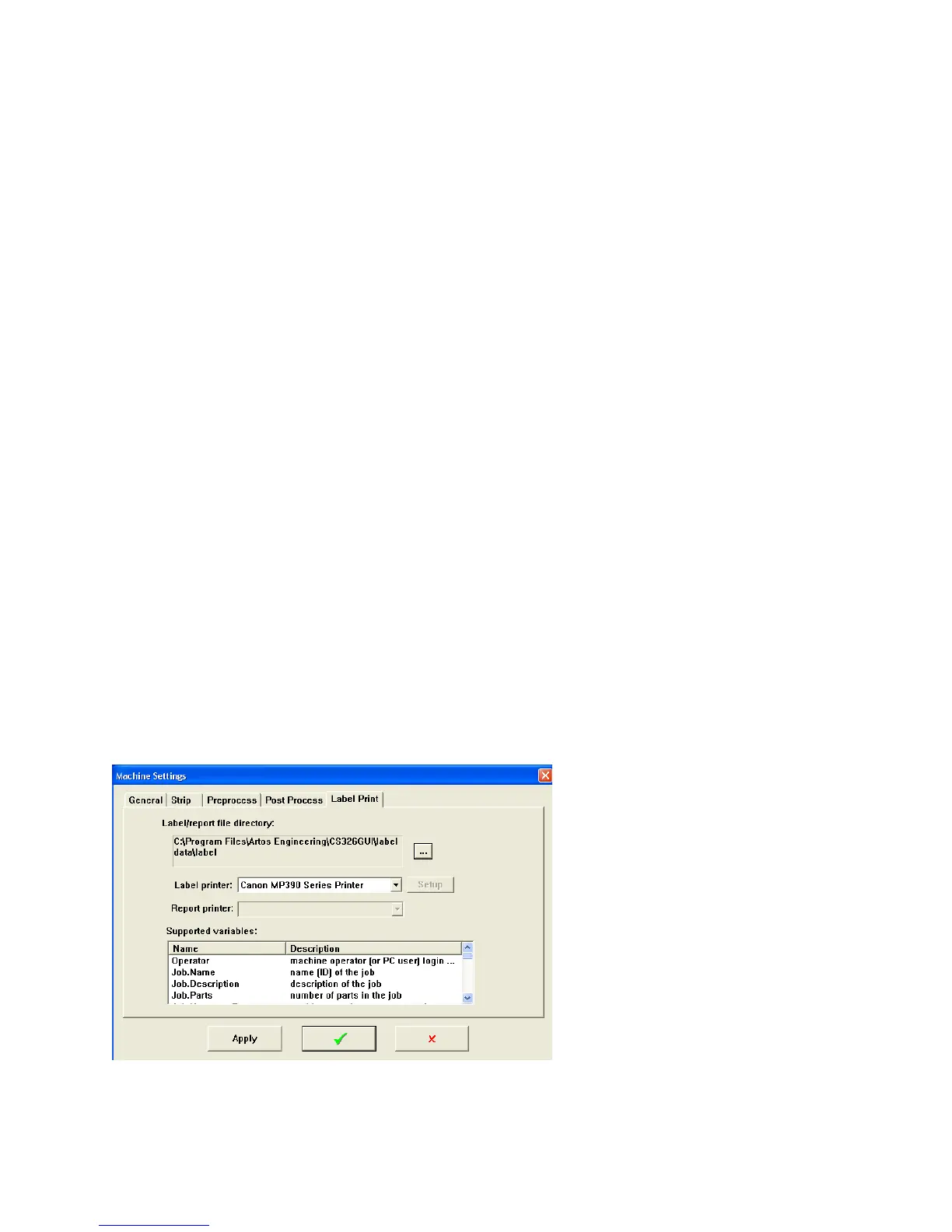

A stand-alone printer is available for the CS 326 B. This would allow you to print labels as you desire
IE by part, batch, or lot. This requires a specific printer and the associated software.
See section “LABEL PRINTING OPTION” for information for configuration and usage.
