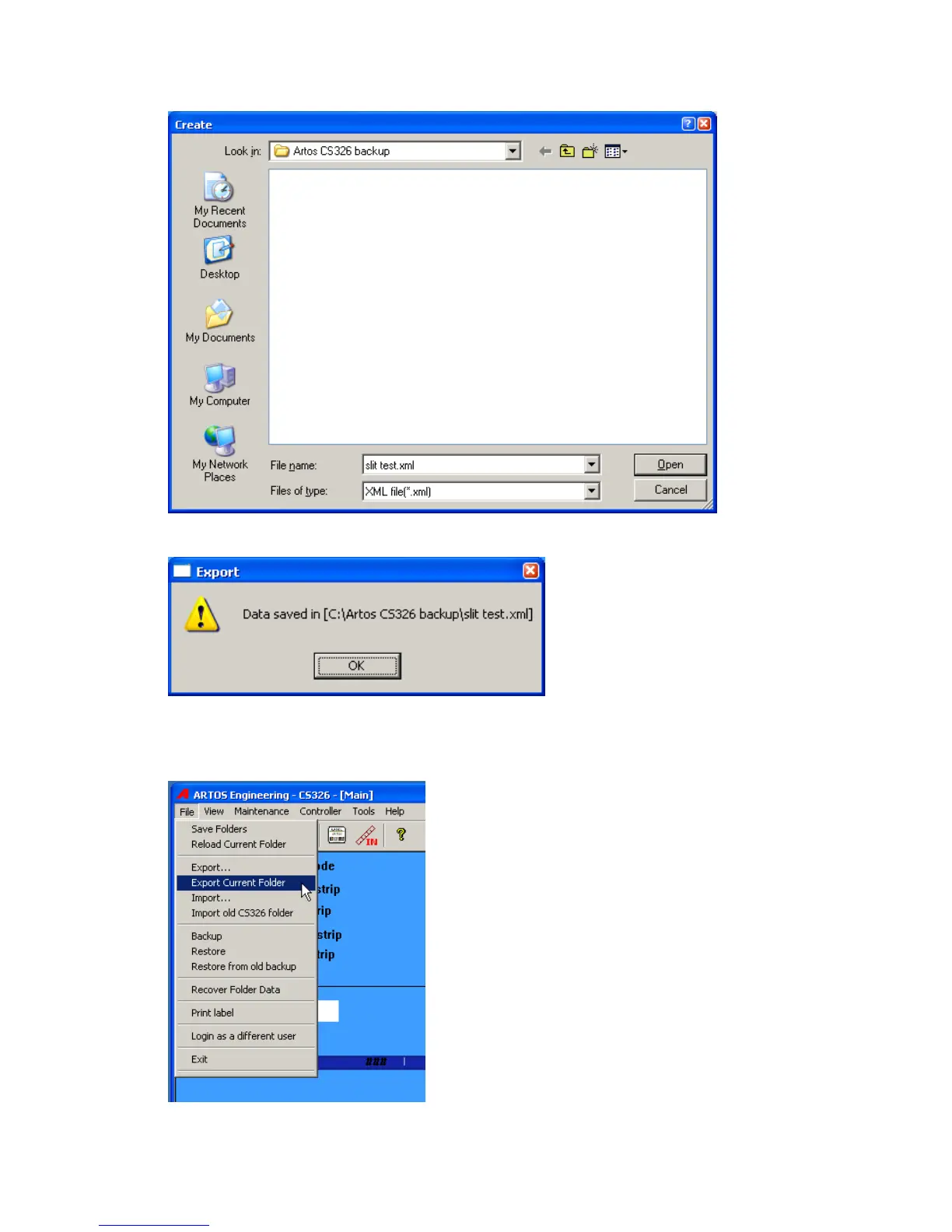

The following window will appear after the data has been saved.

2. Export the all the data that is in the currently selected folder. This will save all the parts, jobs,

wires and processes that are accessible in the currently selected folder. From the main menu

bar click File – Export Current Folder.
