Artos CS-326 - Page 84

To Next Page

To Previous Page

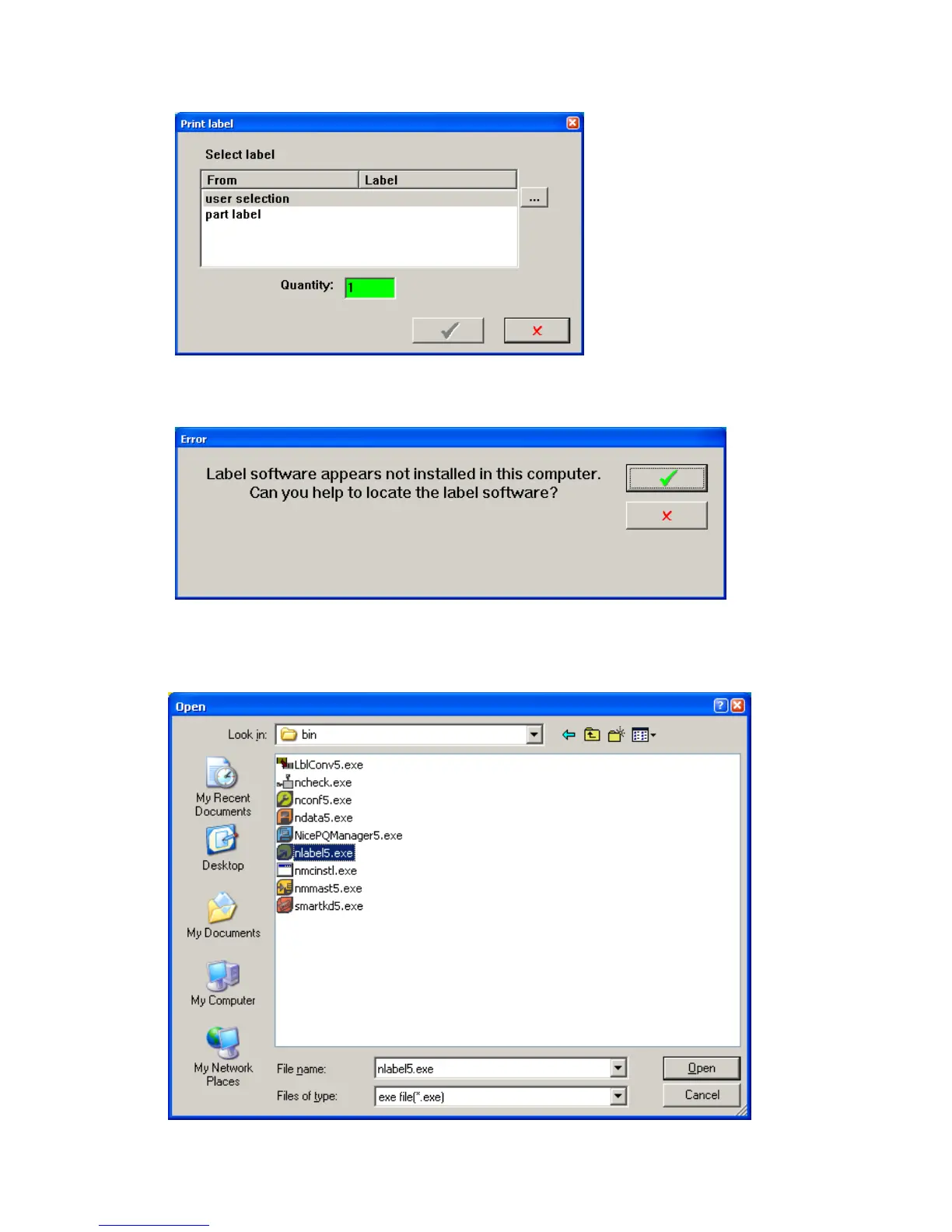

o If an error message comes up that says the Label software appears not installed…. Then click the

green check.

Navigate to C:\Program Files (x86)\ EuroPlus\NiceLabel 5\Bin\nlabel5.exe If the (x86)

directory does not exist then navigate to C:\Program Files\EuroPlus\NiceLabel

5\Bin\nlabel5.exe . Then click open. You may have a newer version of Nicelabel, if so select the

current version number.
