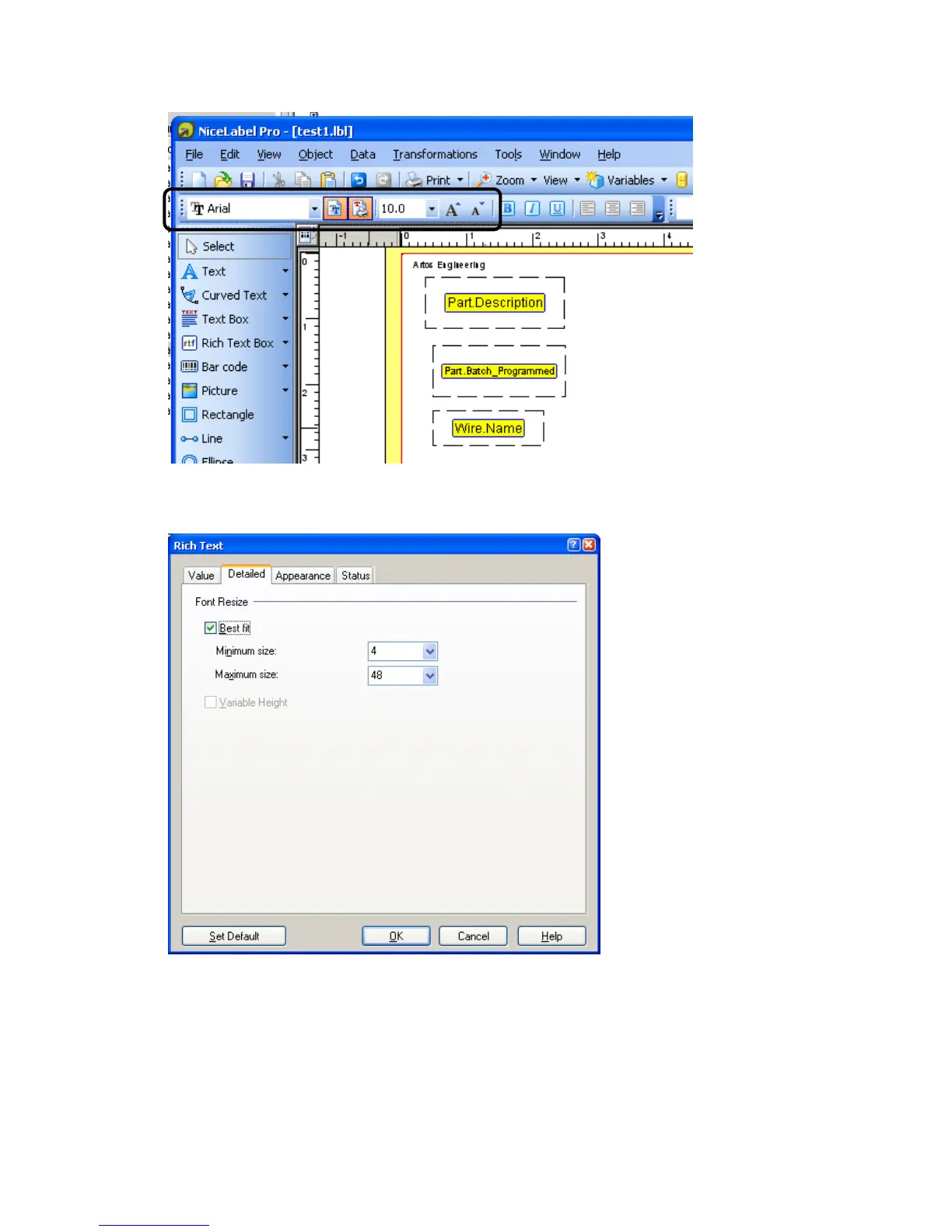

16. To change the position of the text in the window, enable font resizing , or rotation. Double click

on the variable box

17. When finished editing remember to click File – Save.
