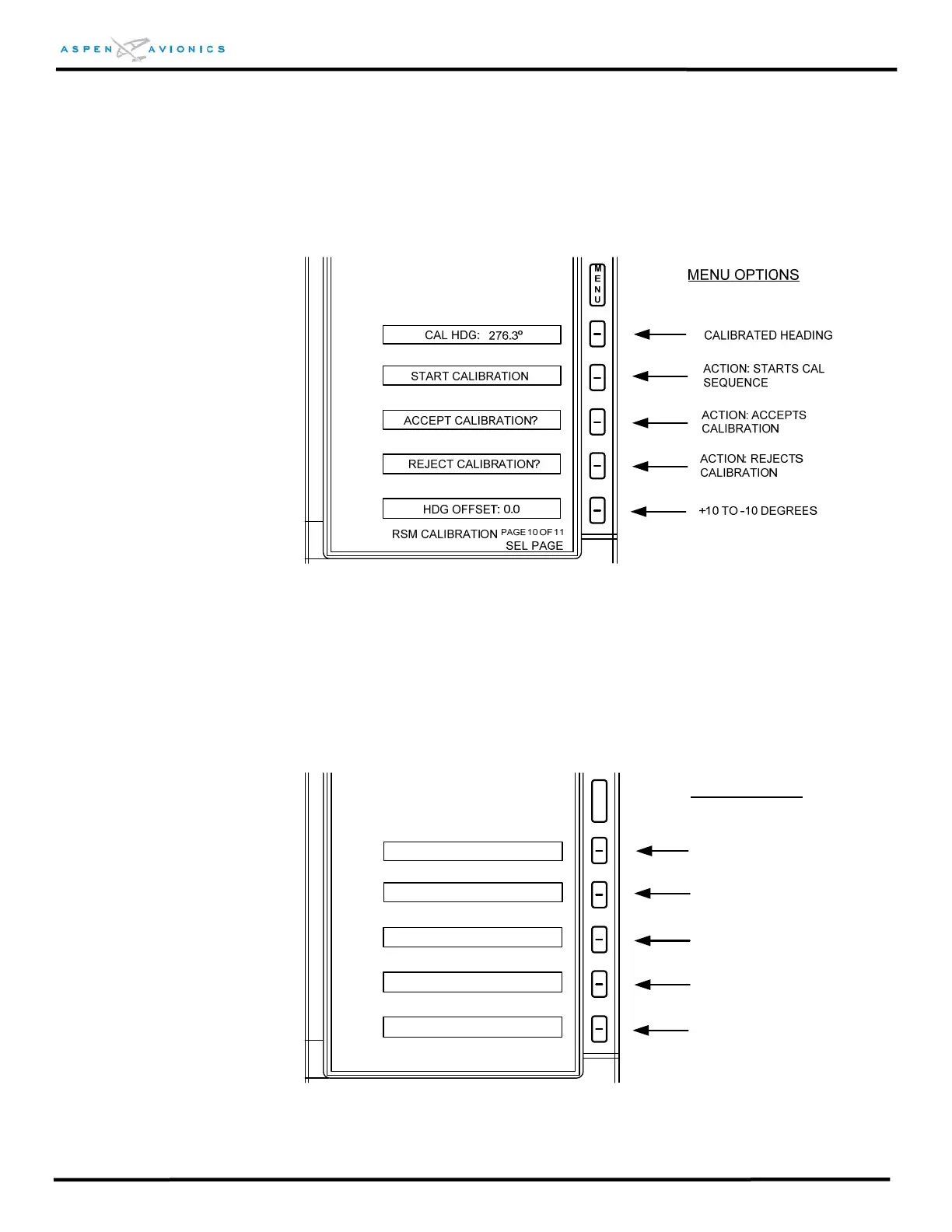

INSTALLATION MENU PAGE 10 – RSM Calibration (PFD software version 1.0 only)
The following menu will be used in the next section to calibrate and validate the
magnetometer in the RSM. Heading errors that are all in the same direction (all high or
all low of actual) can be corrected in this menu.
Figure 10.22A – Installation Menu Page 10
INSTALLATION MENU PAGE 10 – RSM Calibration (PFD software version 1.1 and later)
The following menu will be used in the next section to calibrate and validate the
magnetometer in the RSM. Heading errors of up to +/- 6.0º can be calibrated at 30º
increments beginning with North.
RSM CALIBRATION
PAGE 10 OF 11
SEL PAGE
START CALIBRATION
HDG ADJ: 0.0º
ACCEPT CALIBRATION?
REJECT CALIBRATION?
HDG SEL: 030º
HEADING VALUE TO BE
ADJUSTED IN 30º
INCREMENTS
ACTION: STARTS CAL
SEQUENCE
HEADING CORRECTION
VALUE +/- 6.0º Max.
ACTION: REJECTS
CALIBRATION
ACTION: ACCEPTS
CALIBRATION
MENU OPTIONS
M
E
N
U
Figure 10.22B – Installation Menu Page 10
