Ch. 13. Cell Body and Sample Stage Guide Sec. 13.1. Cell Body Guide
13.1.3. Fluid Cell Body

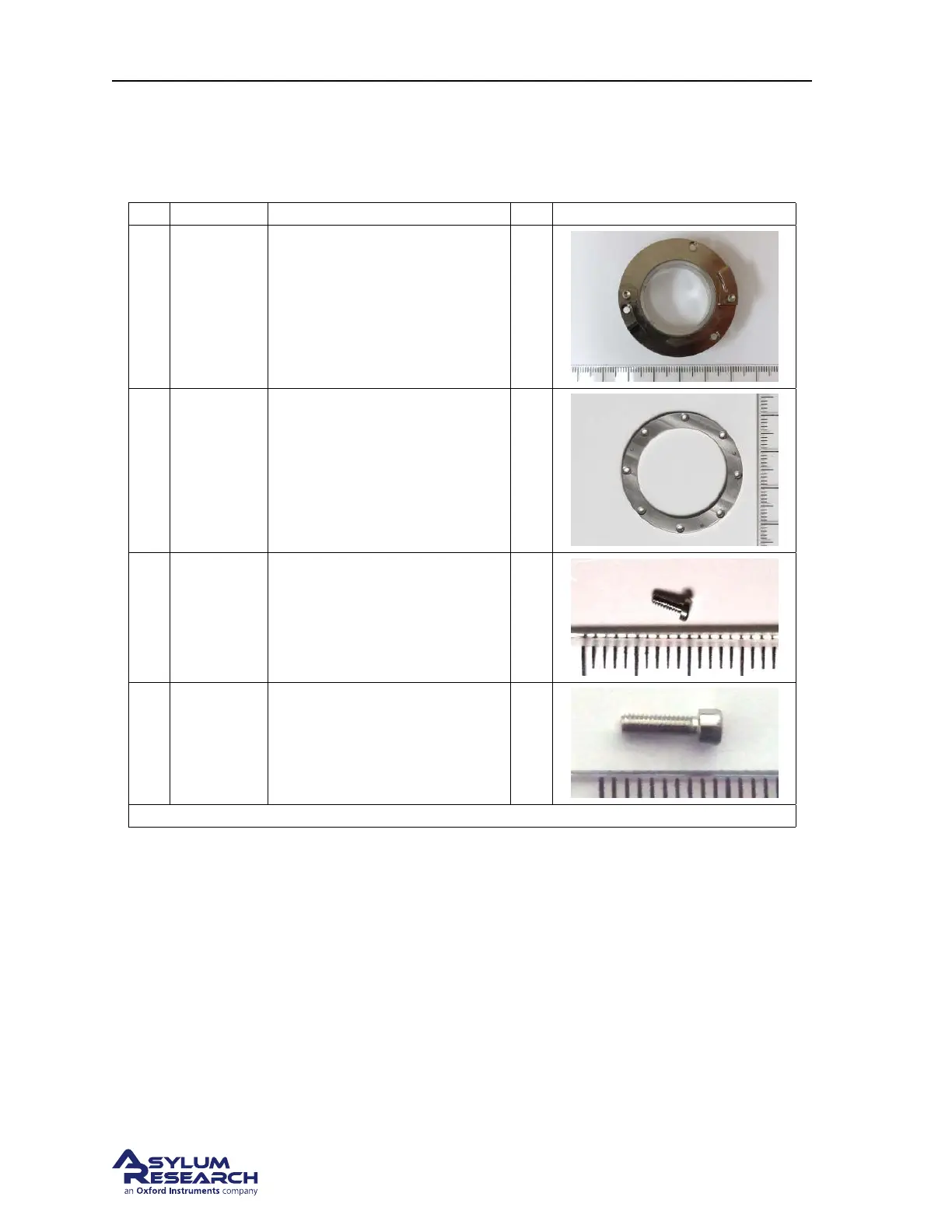

13.1.3.1. Parts list
Itm Part # Item Description Qty Picture
1 Fluid Cell Body. 1
2 114.884
Boot Clamp Ring, 8 Bolt
Pattern. Connects to the bottom
of the cell to form the seal
between the cell body and the
sample stage membrane. See
Step 3 on page 161.
1
3
00-90 x
1/8” Pan
Head SS
00-90 x 1/8” screw. Spare
screws used to fasten the sample
stage membrane to the cell body.
See
Step 4 on page 160.
8
4
1-72 x 0.25
SHCS SS
1-72 x 1/4” long screw. Used to
lock down the cantilever holder.
2
The scale in the photos is in cm and mm.
13.1.3.2. Specifications
Exposed Materials:
Cell wall: Borosilicate Glass.
Cleaning: The whole cell body can be immersed or sonicated in ethyl or isopropyl alcohol or water.
Do not use acetone or methylene chloride or other aggressive solvents as it will attack the epoxy between
the glass and metal parts.
Liquid use: Safe for use with any liquid compatible with borosilicate glass.
DRAFT
Page 154
