Chapter 1 – Installation of the instrument
UM-22100H-U User manual ATEQ D520 Page 21/122

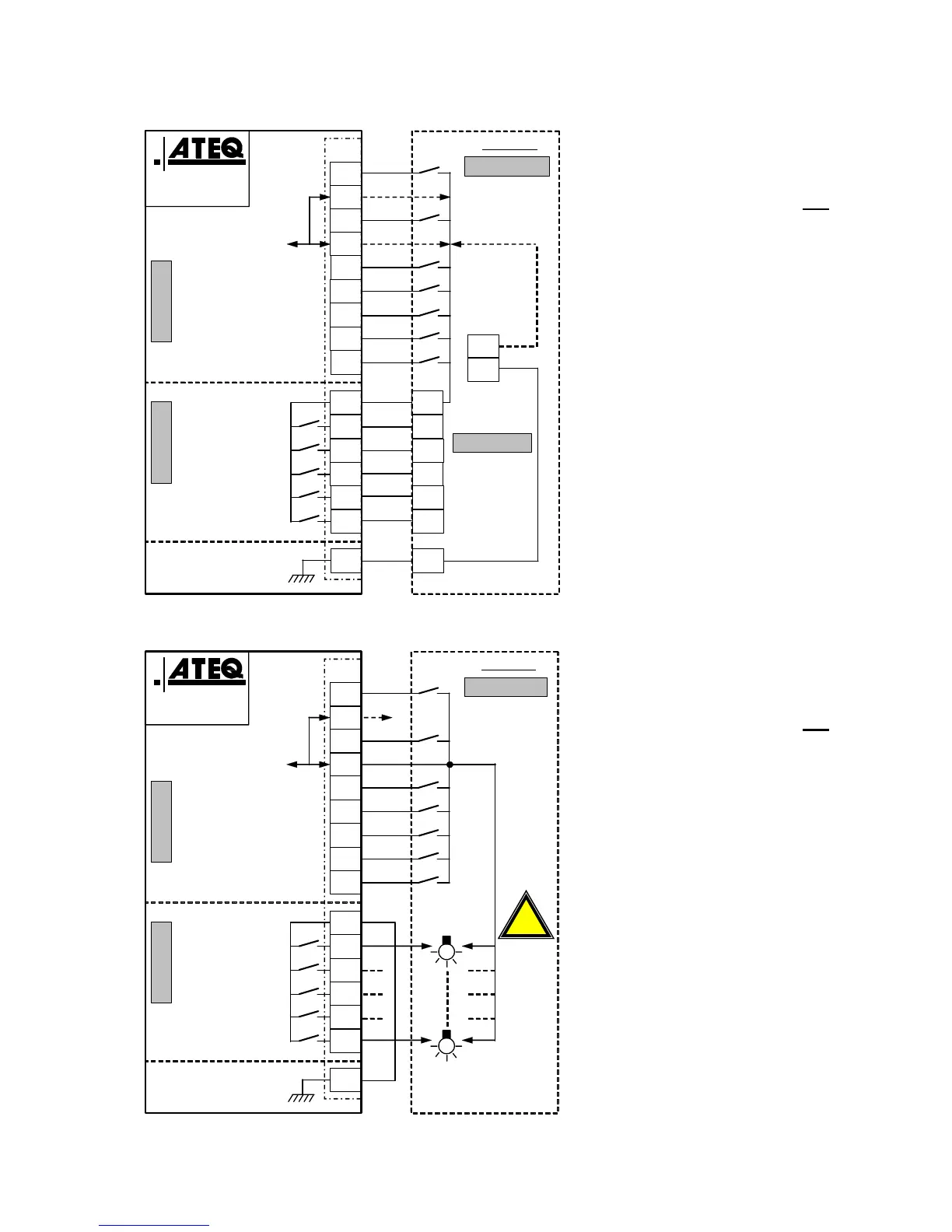

b) PLC in PNP mode connection
I
1
(Reset)
Customer
Inputs board
16/32 programs
I
2
(Start)
I
3
(Pr 1 + 1)
I
4
(Pr 2 + 1)
Good part
Common
Test fail part
Reference fail part
Alarm
End of cycle
24 V DC
24 V DC
ATEQ or customer
I
6
(Pr 8 + 1)
I
5
(Pr 4 + 1)
I
7
(Programmable input)
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
PNP MODE
Ground
+ 24 V DC
J3
INPUTS OUTPUTS
OUTPUTS
+
-
INPUTS
Customer
0 V
(0,3 A max)
Note: The 24V power supply
must be provided by the internal
power supply of the ATEQ
instrument (0,3A maximum) OR
through an external power
supply provided by the
customer.
In the case of customer external
supply, the ATEQ instrument
can be supply by the 2 and 4
pins on the J3 connector too.
c) Lights connection
I
1
(Reset)
Customer
Inputs board
16/32 programs
I
2
(Start)
I
3
(Pr 1 + 1)
I
4
(Pr 2 + 1)
Good part
Common
Test fail part
Reference fail part
Alarm
End of cycle
24 V DC
I
6
(Pr 8 + 1)
I
5
(Pr 4 + 1)
I
7
(Programmable input)
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
Ground
+ 24 V DC
J3
INPUTS OUTPUTS
OUTPUTS
0,3 A Max
with ATEQ
24 V DC
!
0,2 A
Max
0,2 A
Max
(0,3 A max)
Note: The 24V power supply
must be provided by the internal
power supply of the ATEQ
instrument (0,3A maximum) OR
through an external power
supply provided by the
customer.
In the case of customer external
supply, the ATEQ instrument
can be supply by the 2 and 4
pins on the J3 connector too.
