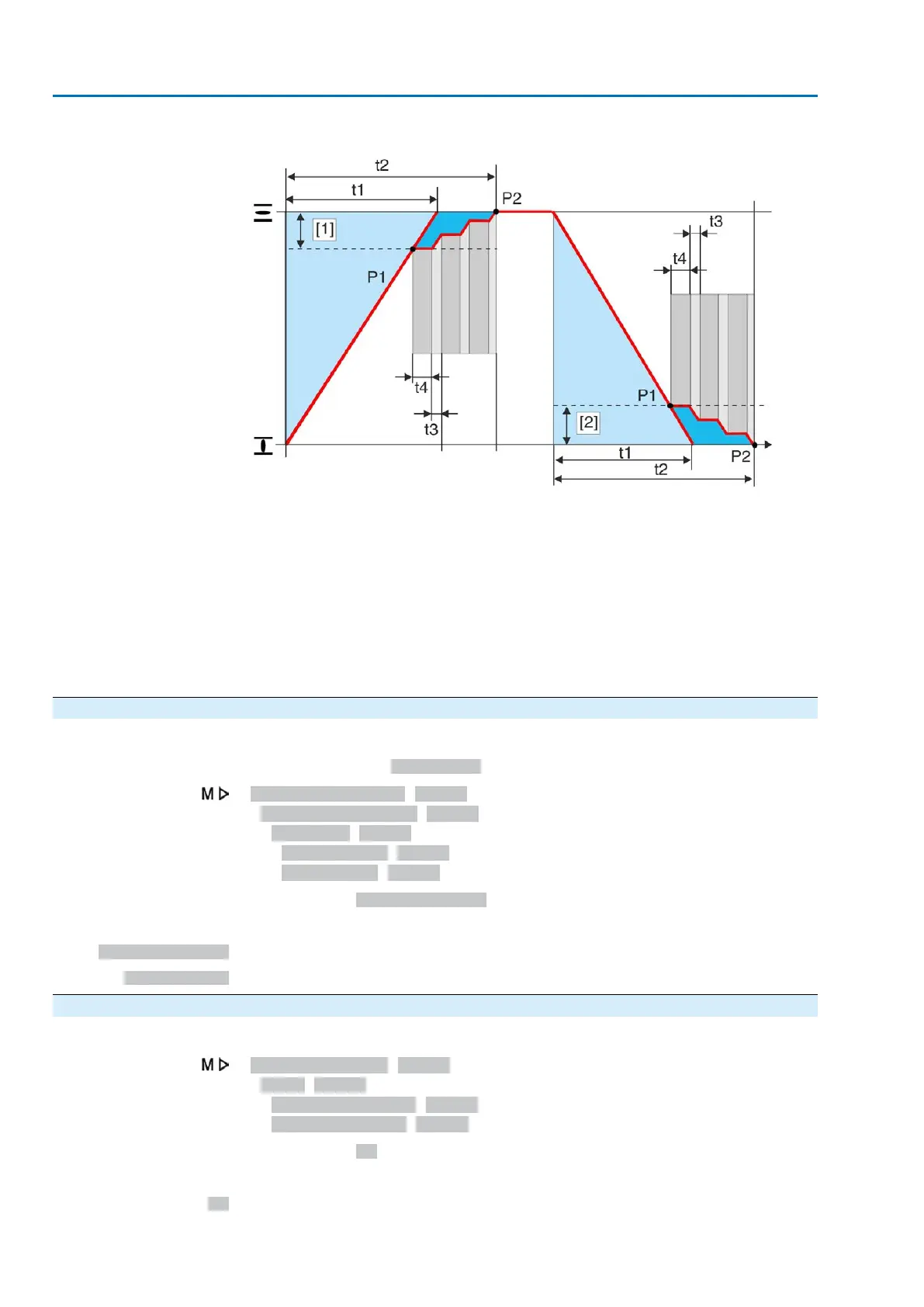

Figure 45: Stepping mode
[1] Stepping range OPEN
[2] Stepping range CLOSE
P1 Start of stepping mode
P2 End of stepping mode
t1 Operating time for normal operation
t2 Operating time for stepping mode
t3 Running time
t4 Off time
8.7.1. Stepping mode: activate
Stepping mode can be individually activated for the directions OPEN and CLOSE.
Required user level: Specialist (4) or higher.
Device configuration M0053
Application functions M0178
Activation M0212
Timer CLOSE M0156
Timer OPEN M0206
Default value: Function not active
Setting values:
Function not active
Function <Stepping mode> deactivated.
Function active
Function <Stepping mode> activated.
8.7.2. Operation mode for stepping mode
Stepping mode can be activated via operation modes Local and/or Remote.
Customer settings M0041
Timer M0142
Step mode CLOSE M0157
Step mode OPEN M0207
Default value: Off both directions
Setting values:
Off
Stepping mode is switched off.
