Setting values:
OPEN
The enable signal is only required for operation commands in direction OPEN.
CLOSE
The enable signal is only required for operation commands in direction CLOSE.
OPEN and CLOSE
The enable signal is required for operation commands in directions OPEN and
CLOSE.
9.7. Local Stop
Characteristics
●
The function Local Stop can be used to stop an operation from Remote locally
with the push button STOP.
●
All operation commands are interrupted.
Information
After releasing push button STOP, an operation command which might still be present
will become active immediately.
9.7.1. Behaviour
Required user level: Specialist (4) or higher.
Customer settings M0041
Local controls M0075
Local STOP M0627
Default value: Off
Setting values:
Off
Push button STOP can only interrupt an operation in operation mode Local (selector
switch = position Local control).
Sel.sw.Local + Remote
In the operation modes Local, Remote, Remote II, EMERGENCY and Service, push
button STOP interrupts an operation.
Information
In operation mode Disabled, an interruption is NOT possible.
9.8. EMERGENCY stop function
Conditions
An EMERGENCY stop button (latching) is either located on the electrical connection
or outside.
Characteristics
●
In an emergency, the EMERGENCY stop button can be used to interrupt the
power supply. Possibly available operation commands will be reset via self-re-
taining.
●
The indication in the top row of the display shows: EMCY stop

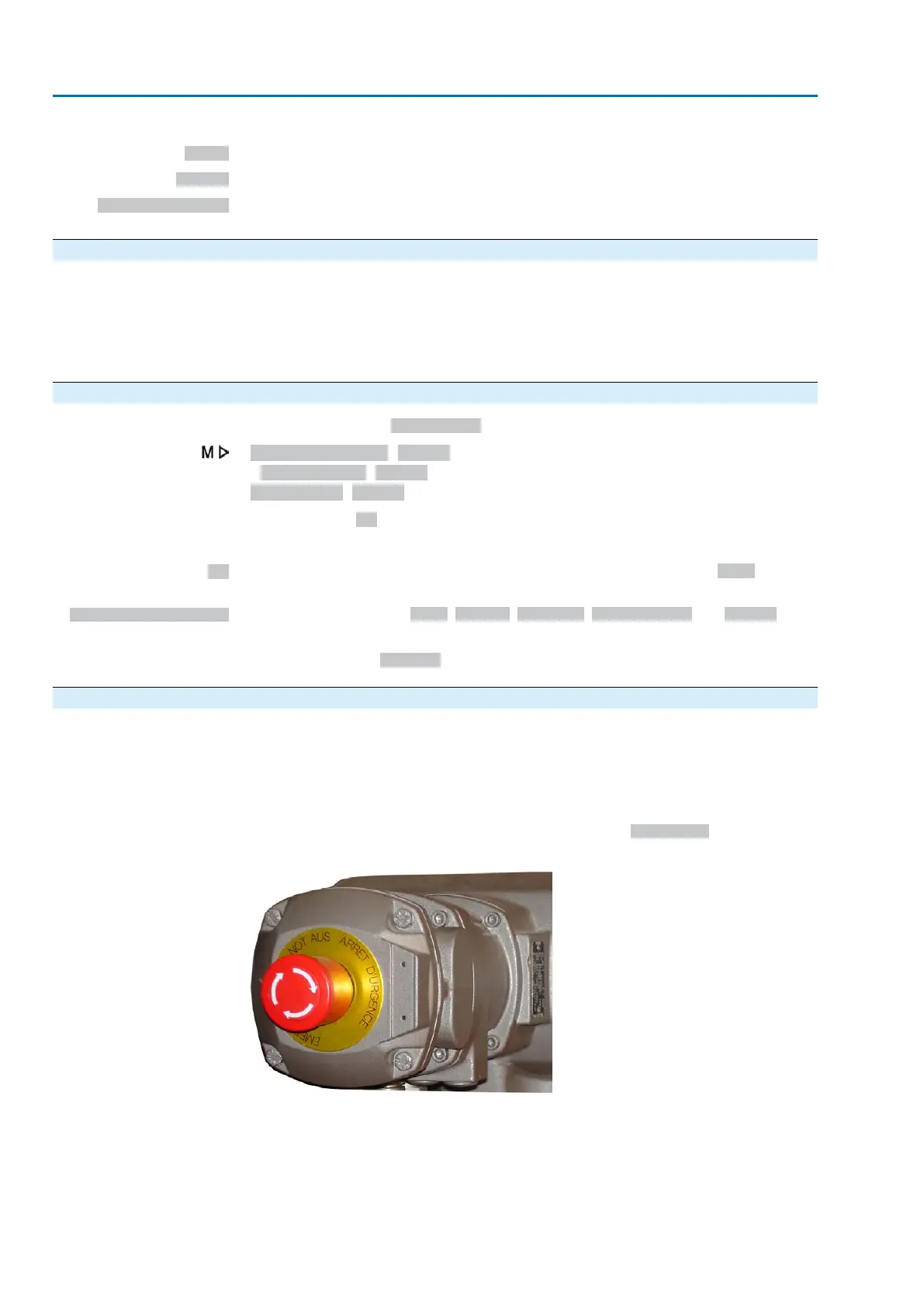

Figure 48: EMERGENCY stop button on the electrical connection
Information
●
The EMERGENCY stop button is reserved for operation in the event of an
emergency. For maintenance work, the mains supply of the actuator controls
has to be switched off and protected against accidental switching on.
●
The EMERGENCY stop push button is not available for explosion-proof versions,
but only for weatherproof versions of the actuator controls.
84
Actuator controls
Failure functions ACV 01.2/ACVExC 01.2
