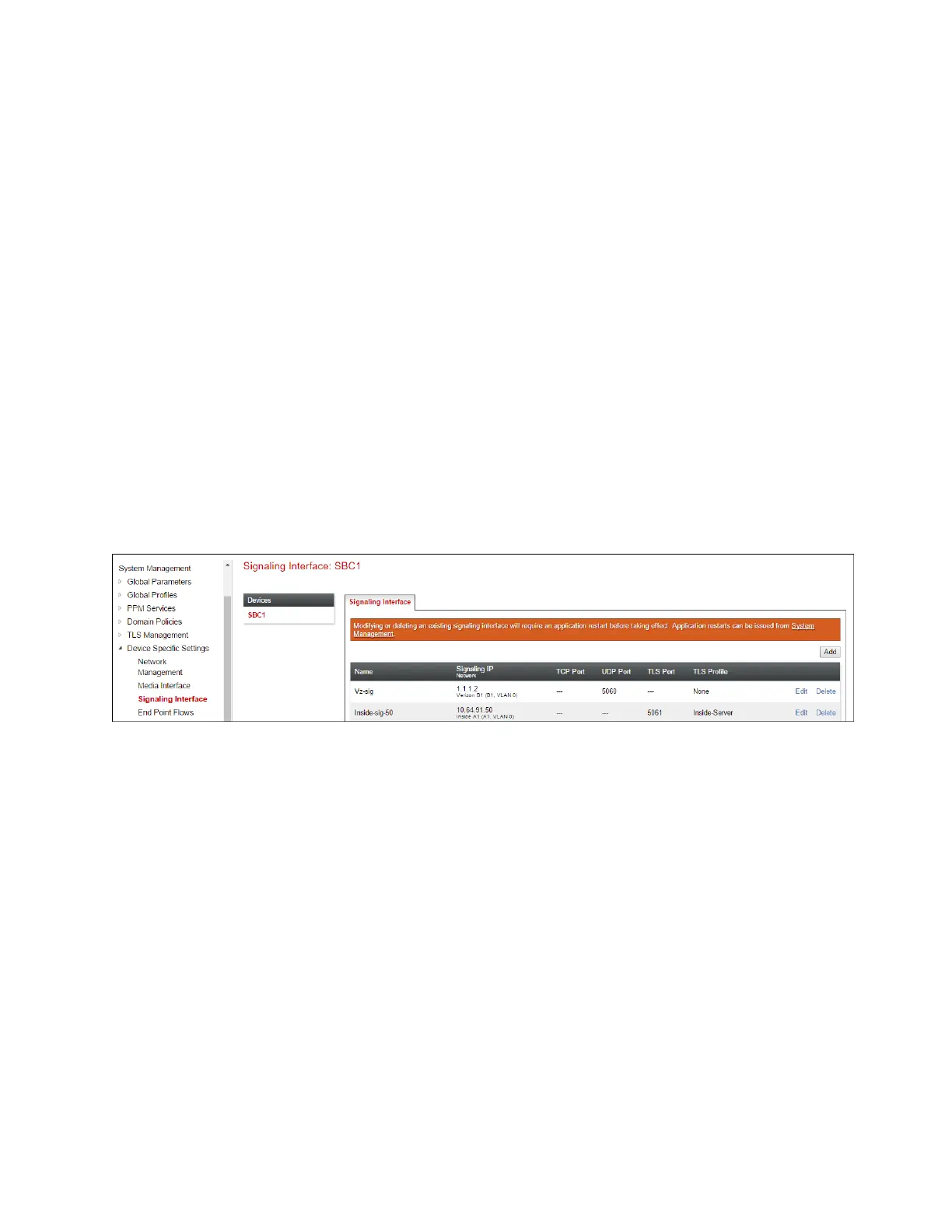

7.5.3 Signaling Interface
The Signaling Interface screen is where the SIP signaling ports are defined. Avaya SBCE will
listen for SIP requests on the defined ports. Create a Signaling Interface for both the inside and
outside IP interfaces.
Step 1 - Select Device Specific Settings from the menu on the left-hand side.
Step 2 - Select Signaling Interface.
Step 3 - Select Add (not shown) and enter the following:
Name: Inside-Sig-50
IP Address: Select Inside A1 (A1,VLAN0) and 10.64.91.50
TLS Port: 5061
TLS Profile: Select the TLS server profile created in Section 7.2.2 (e.g., Inside-Server)
Step 4 - Click Finish (not shown).
Step 5 - Select Add again, and enter the following:
Name: Vz-sig
IP Address: Select Verizon B1 (B1,VLAN0) and 1.1.1.2
UDP Port: 5060
Step 6 - Click Finish (not shown). Note that changes to these values require an application restart
(see Section 7.1).
