3. Reference Configuration
Figure 1 illustrates the sample configuration used for the DevConnect compliance testing. The
configuration is comprised of the Avaya CPE location connected via a T1 Internet connection to
the Verizon Business IPCC Services node. The Avaya CPE location simulates a customer site. At
the edge of the Avaya CPE location is an Avaya Session Border Controller for Enterprise. The
Avaya SBCE receives traffic from the Verizon Business IPCC Services on port 5060 and sends
traffic to the Verizon Business IPCC Services using destination port 5072, using UDP for
transport. The PIP service defines a secure MPLS connection between the Avaya CPE T1
connection and the Verizon Business IPCC Services node.

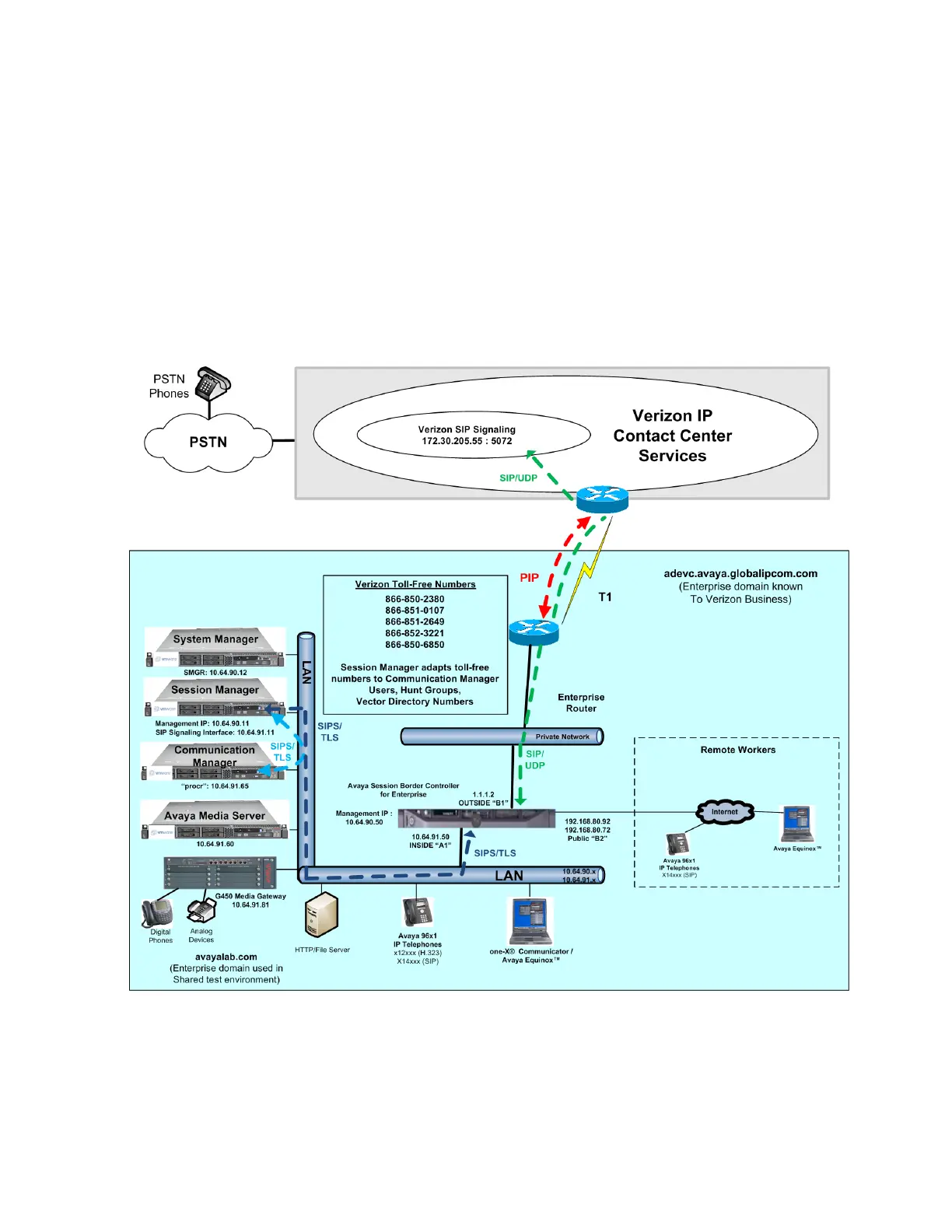

Figure 1: Avaya Interoperability Test Lab Configuration
