AVL F-FEM-DDC User Manual

Installation
22
F-FEM-DDC — User’s Guide
3.3 Electrical Installation
Each F-FEM has to be supplied with 24 V. This can be done via X17 or X18.
Look at chapter Power Supply X17, X18 on page 54.
For the data transfer to the automatization system (test bed workstation) an
IEEE1394-connection is to be set up.
Several F-FEM-AIx are connected by connecting their IEEE1394 interfaces
(X19, X20, X21).

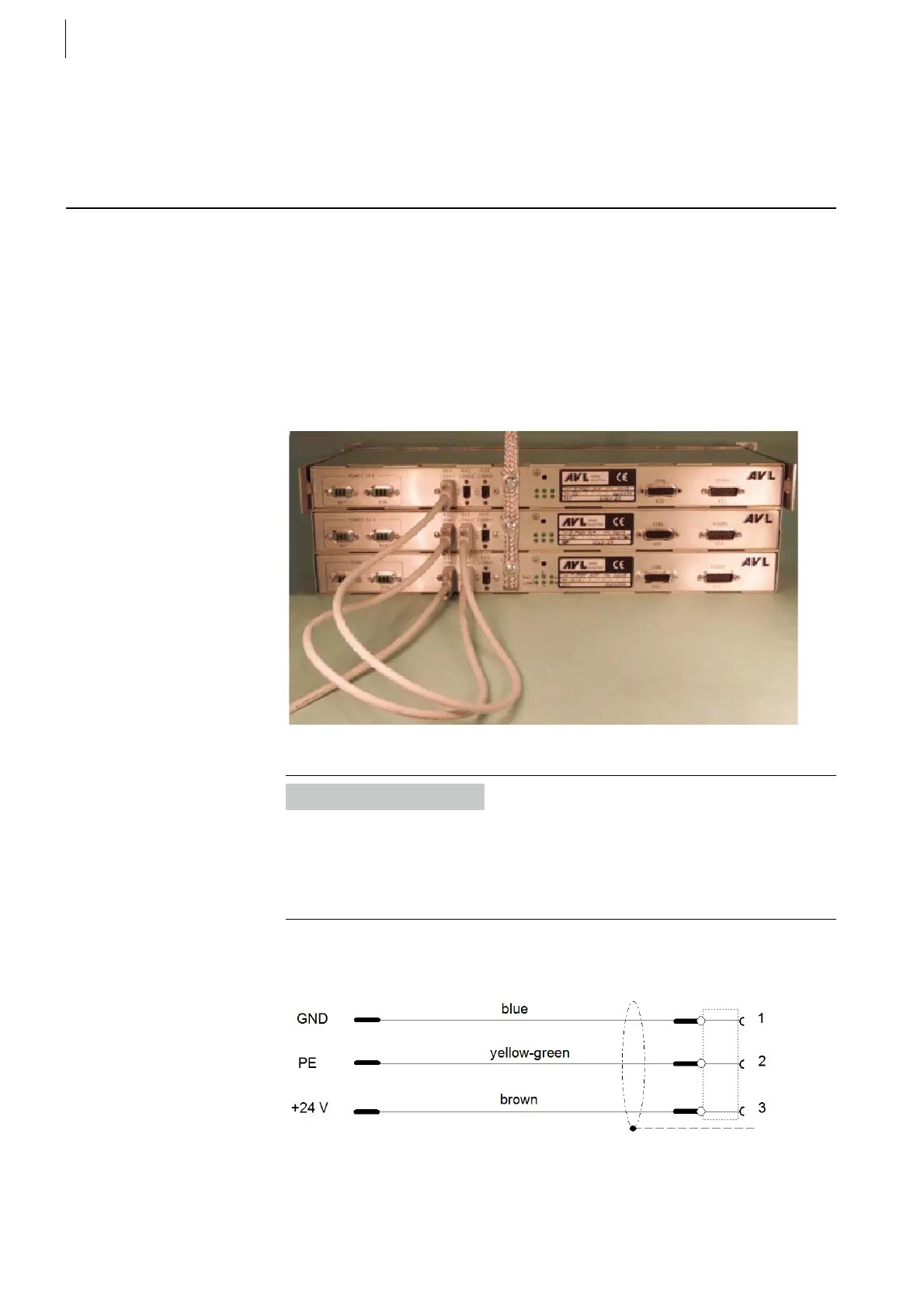

Example of IEEE1394 connections of F-FEM-AIx:
3.3.1 Power Cable Inlet
1 As an option, the long angle brackets ZG1577 are available. With that,
the module can be installed in a recessed manner so that the connectors
do not stick out at the front.
Fig. 5
Information
Please install the Ground braid as shown on Fig. 5.
For the IEEE1394 connectors you could choose another serial connection than
shown on this figure above.
Material for the Ground braid: see chapter Grounding on page 27.
Fig. 6
