51
Operation
F-FEM-DDC Users Guide
4.8.3
Digital Inputs X41 ...X44

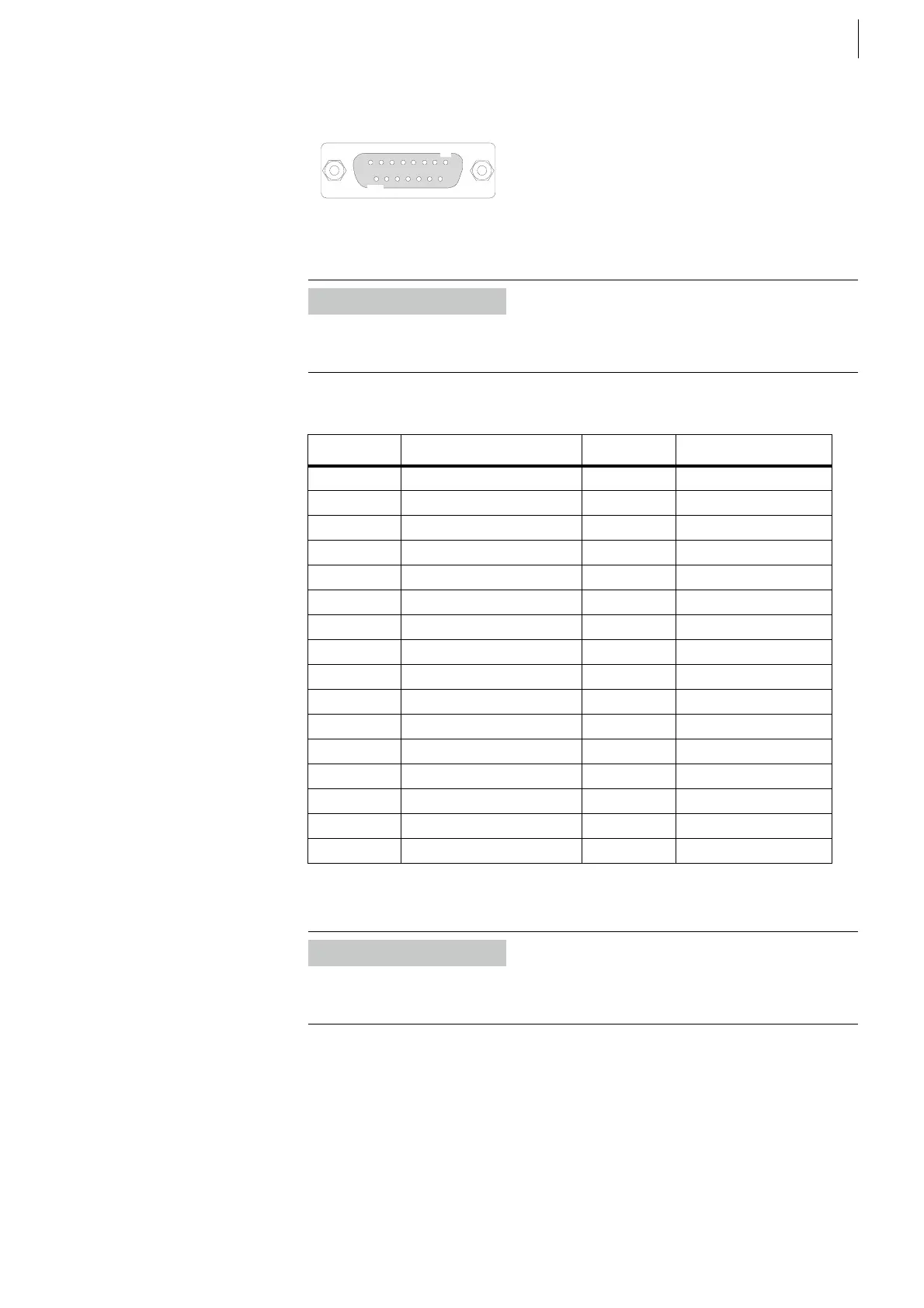

Pin assignment for digital inputs X41 ...X44:
*) The total current for X41…X44 all together is limited to 2.0 A
Fig. 27
Information
The D-SUB jacks are equipped with a quick lock™ option for an easy click &
mount and a one hand remove mechanism.
Pin Signal at X41 ... Signal at X44
1 24 V out *) 24 V out *)
9
2 24 V out *) 24 V out *)
10 Ch1+ Ch1+
3
11 Ch2+ Ch2+
4
12 Ch3+ Ch3+
5
13 Ch4+ Ch4+
6
14 PE PE
7 GND_24 out GND_24 out
15 COMM_X41 COMM_X44
8 GND_24 out GND_24 out
Case PE PE
Tab. 18
Information
The maximum cross section of a wire soldered to a D-SUB connector pin is
limited to 0.5 mm² (equivalent to AWG 20 or more).
