Installation
26
F-FEM-DDC Users Guide
The maximum number of parameterized F-FEM (between 22 and 40) and the
maximum cable lengths between the different nodes (20 or 30 m) depend on the
installed PUMA Open version and licence option (basic, standard, high-perfor-
mance).
3.3.3.4
Mechanical Layout of a Cable Routing
Minimum bending radius: (see Fig. 10)
5 cm for a standard IEEE1394 cable up to 5 m and
7 cm for an OKI IEEE1394 cable wit a lengths of 15, 20 or 30 m.
If your cable has an over length, please roll it up with the recommended diameter
D
rec
of 30 cm inside the cabinet.
Information
More details about maximum number of channels, sampling rates and
network-delay times see the release notes of the according automation system
or contact the AVL pruduct management.
NOTICE
Please do not undershoot the minimum bending radius R
min
of the cables!

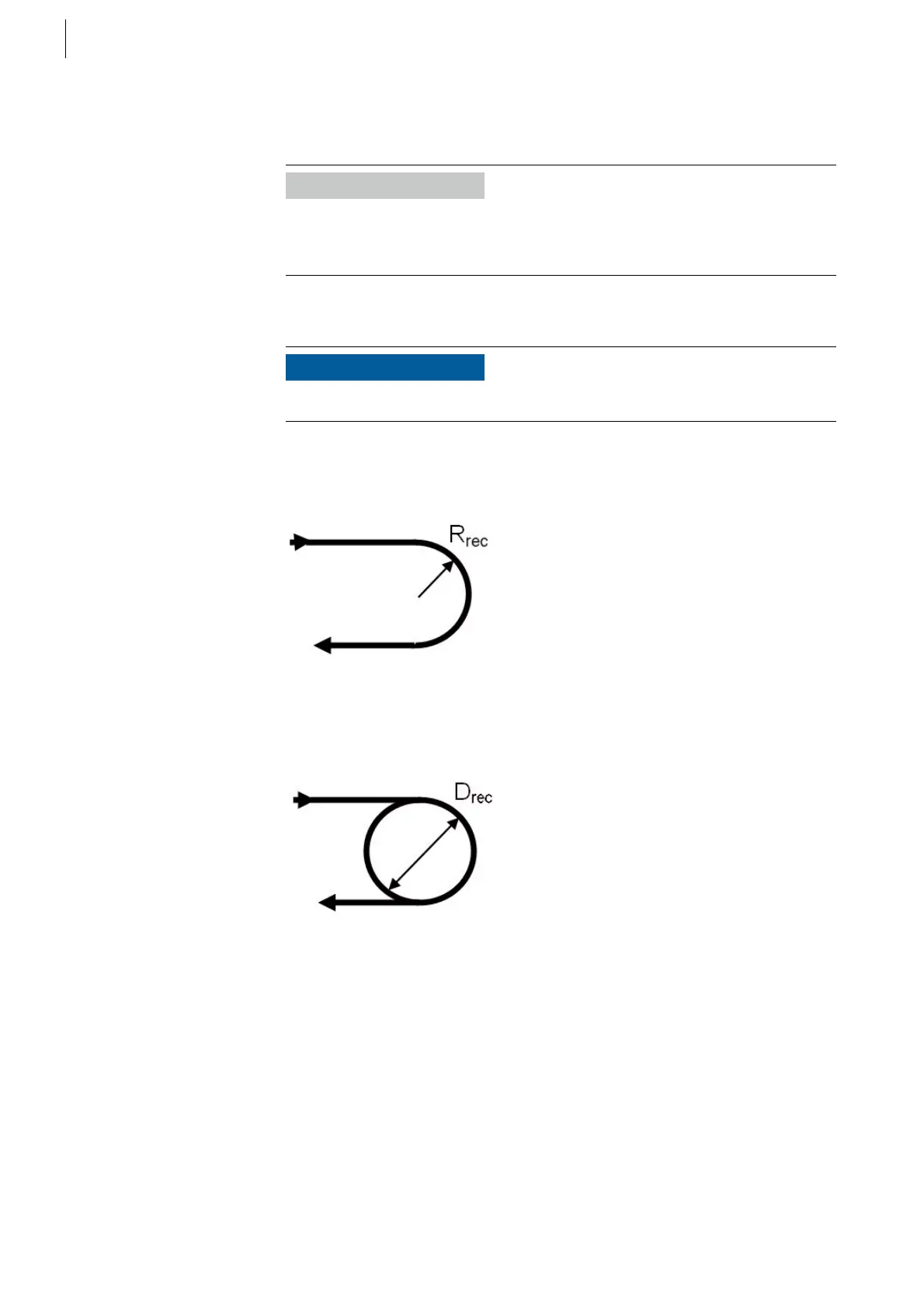

Fig. 10
Fig. 11
