F-FEM-DDC — User’s Guide
5.7 Valve Connectors according to DIN 43650
The digital outputs on the F-FEM-DDC can drive a current up to 1 A. If this is too
less for your load (in most cases a valve), you can either connect channels in
parallel or use a connector with an amplifier according to DIN 43560 resp.
EN175301-803. A connector like this can operate with a 10 mA input current,
and outputs up to 2 A. Therefore it needs an additional 24V power supply.

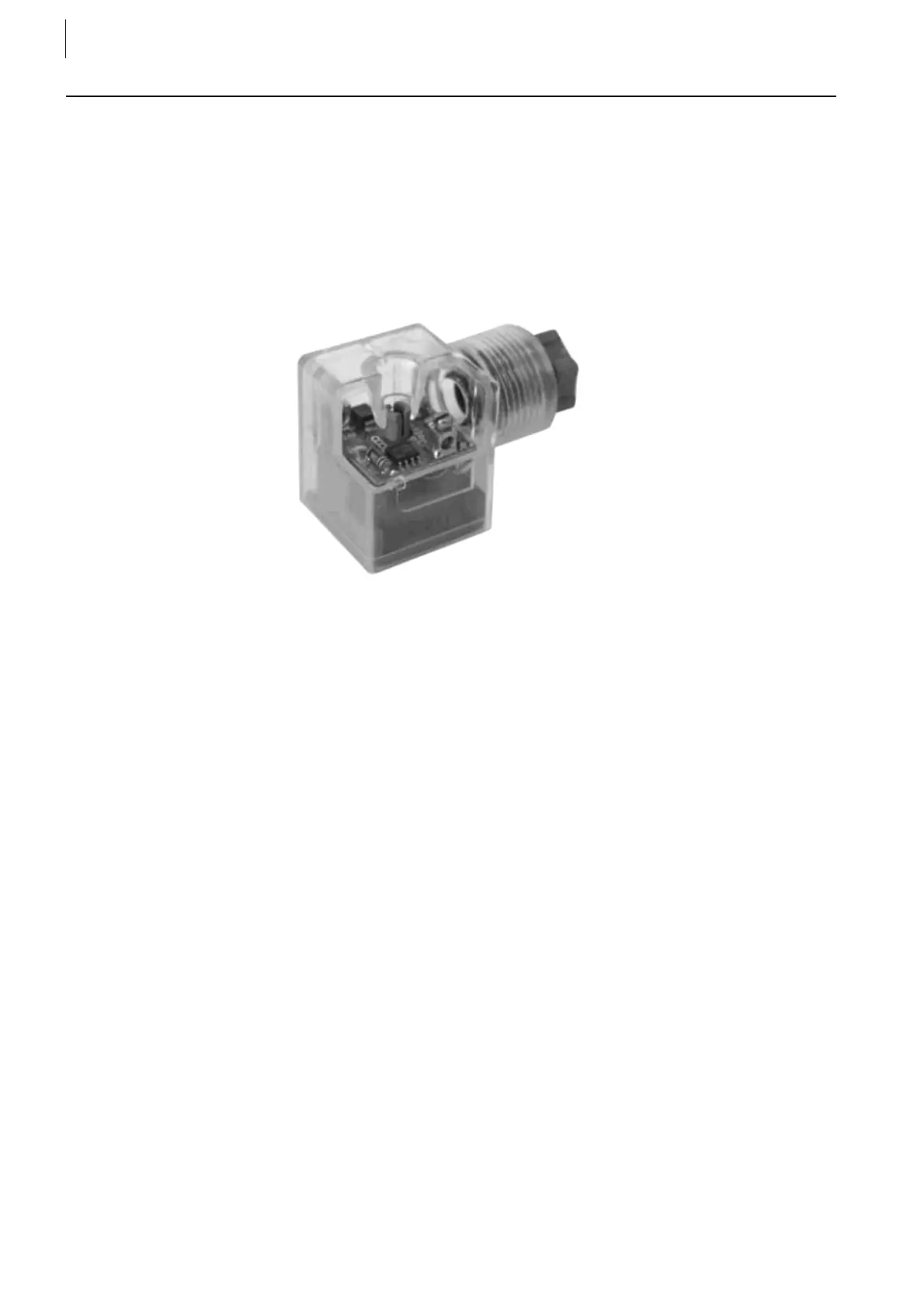

DIN 43650 valve connector with an amplifier:
Connectors like in Fig. 57 can be obtained from the following companies. List in
alphabetic order, not exhaustive (please follow the links).
www.gogatec.com
www.majordin43650.com
www.norstat.com
www.omega.com
www.romicon.nl
www.woodhead.com
Fig. 57
