23
Installation
F-FEM-DDC Users Guide
3.3.2
Power Cable Module to Module
AVL material number for the complete cable is BV2353.
Information
Pull shield back over isolation and fix it with the screws of the strain to the
connector case on both sides!
Pcs. Required material units AVL part number
1 to 2.0 m: shielded cable 3 x 0.75 mm²
> 2.0 m: shielded cable 3 x 1.5 mm²
EX0398
EX0557
1 3-pin connector with c-clamps EU1753
1 case 9-pin EU1228
6
6
cable tube 0.75 mm²
cable tube 1.5 mm²
EP0212
EP0214
Tab. 3

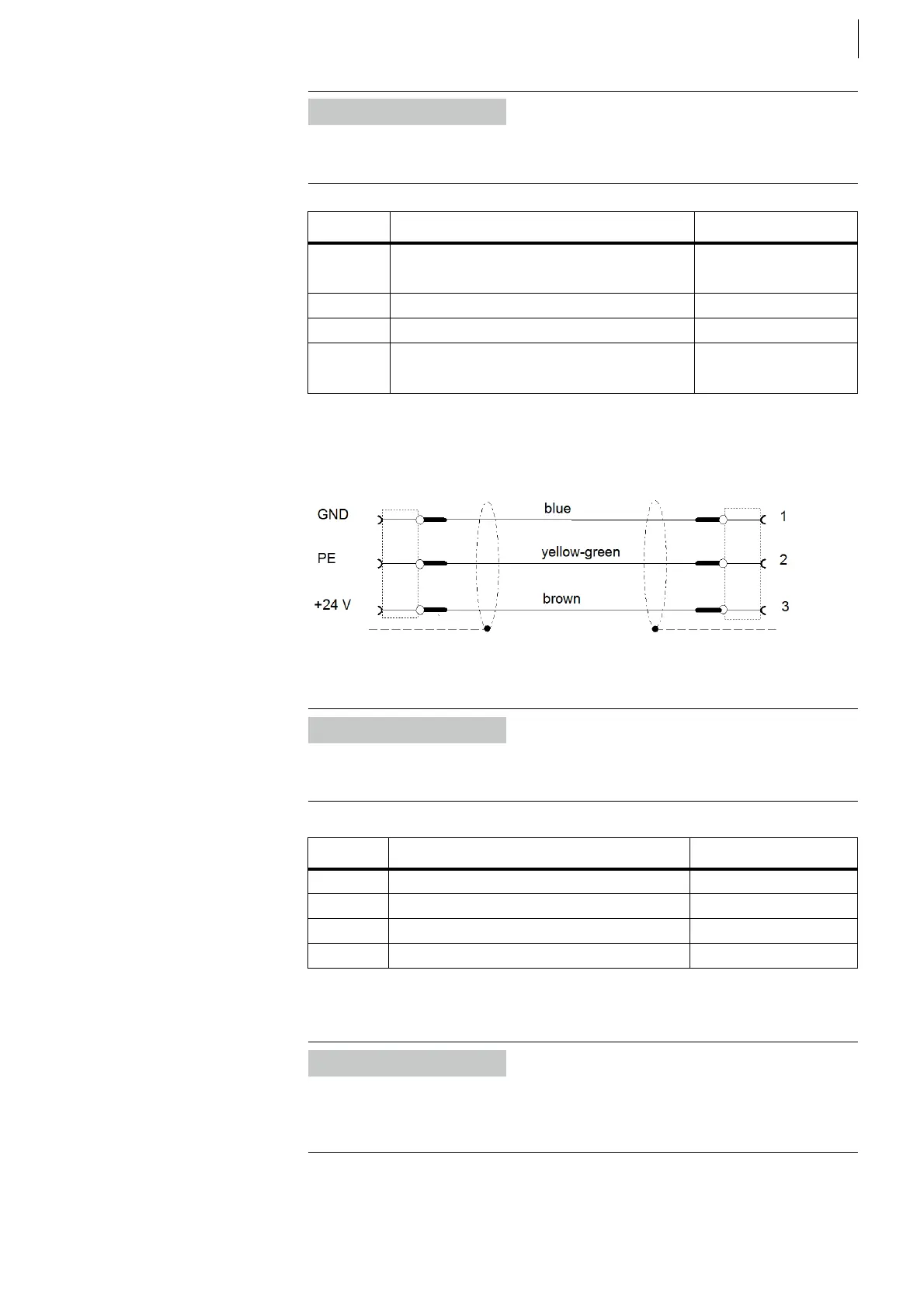

Fig. 7
Information
Pull shield back over isolation and fix it with the screws of the strain to the
connector case on both sides!
Number Required material units AVL part number
1 300 mm shielded cable 3 x 0.5 mm² EX0408
2 3-pin connector with c-clamps EU1753
2 case 9-pin EU1228
6 cable tube 0.5 mm² EP0211
Tab. 4
Information
The supply from one module to the next one can be connected with this cable. A
maximum of 2 of such cables (a maximum of 3 devices) in series may be
connected. The 4th device needs an own power supply cable to the power unit!
