Aztech 4-Port Wireless G Router User Manual

User Manual
Page 10 of 129

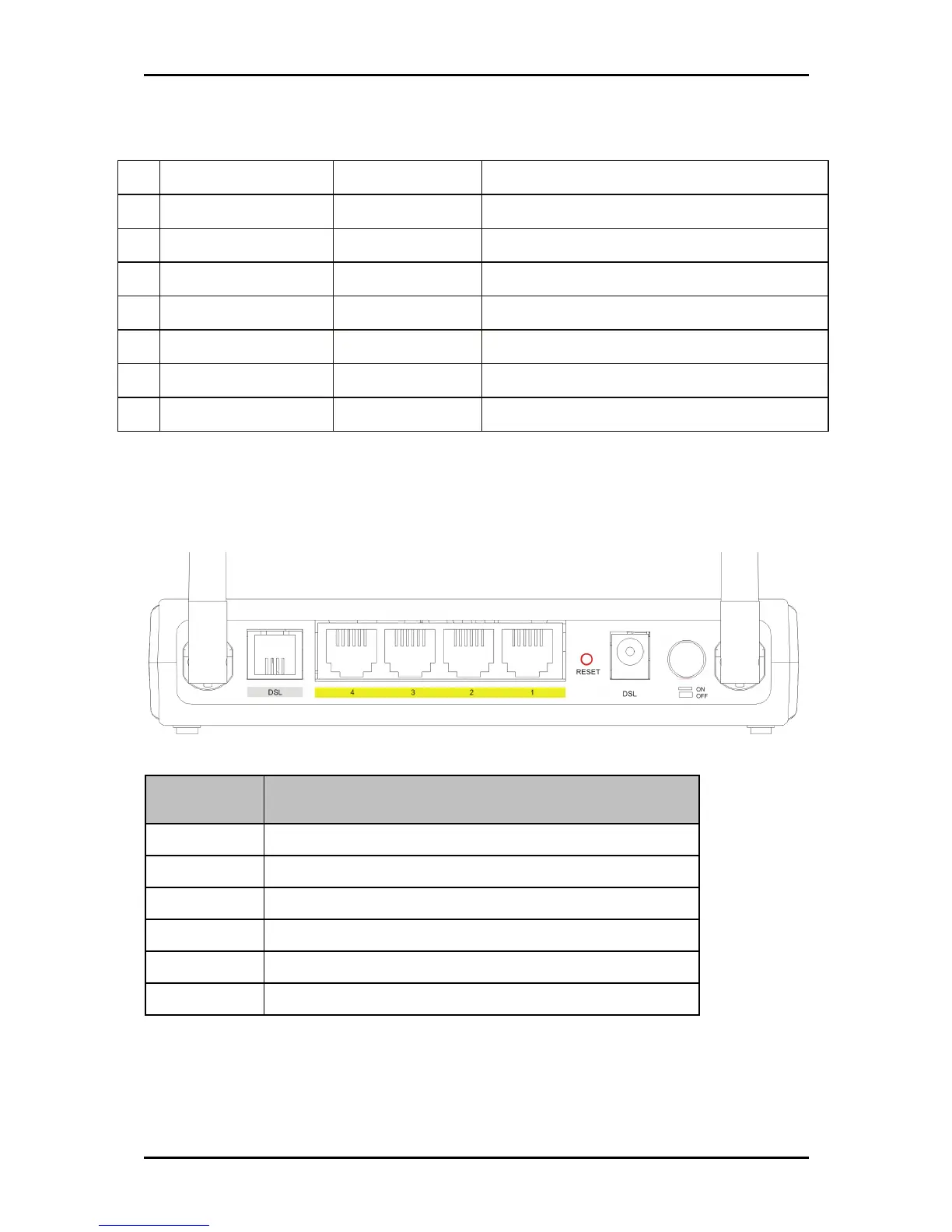

Back Panel
The back panel provides ports to power up and connect the router into the network.
Ba
ck Panel
Back PanelBack Panel
Back Panel
Label
LabelLabel
Label Used for…
Used for…Used for…
Used for…
DSL
DSLDSL
DSL Connecting the telephone cable
ETHERNET 1
ETHERNET 1ETHERNET 1
ETHERNET 1-
--
-4
44
4 Connecting with computers/devices through Ethernet cable
RESET
RESETRESET
RESET Resetting the device. Press for 10 seconds to reset.
9V DC
9V DC9V DC
9V DC Connecting with the 9V power adapter
ON/OFF
ON/OFFON/OFF
ON/OFF Switching the device on/off
Antenna
AntennaAntenna
Antenna Sending/receiving wireless signals
Blinking light Transmitting/Receiving data
D DSL Off No DSL signal
Blinking light Establishing DSL signal
Steady light DSL signal is established
E INTERNET Off No Internet connection
Steady green light Connected to the Internet
Blinking green light Transmitting/Receiving data
Red Connection attempt failed

Aztech 4-Port Wireless G Router Specifications

General

Brand	Aztech
Model	4-Port Wireless G Router
Category	Network Router
Language	English
