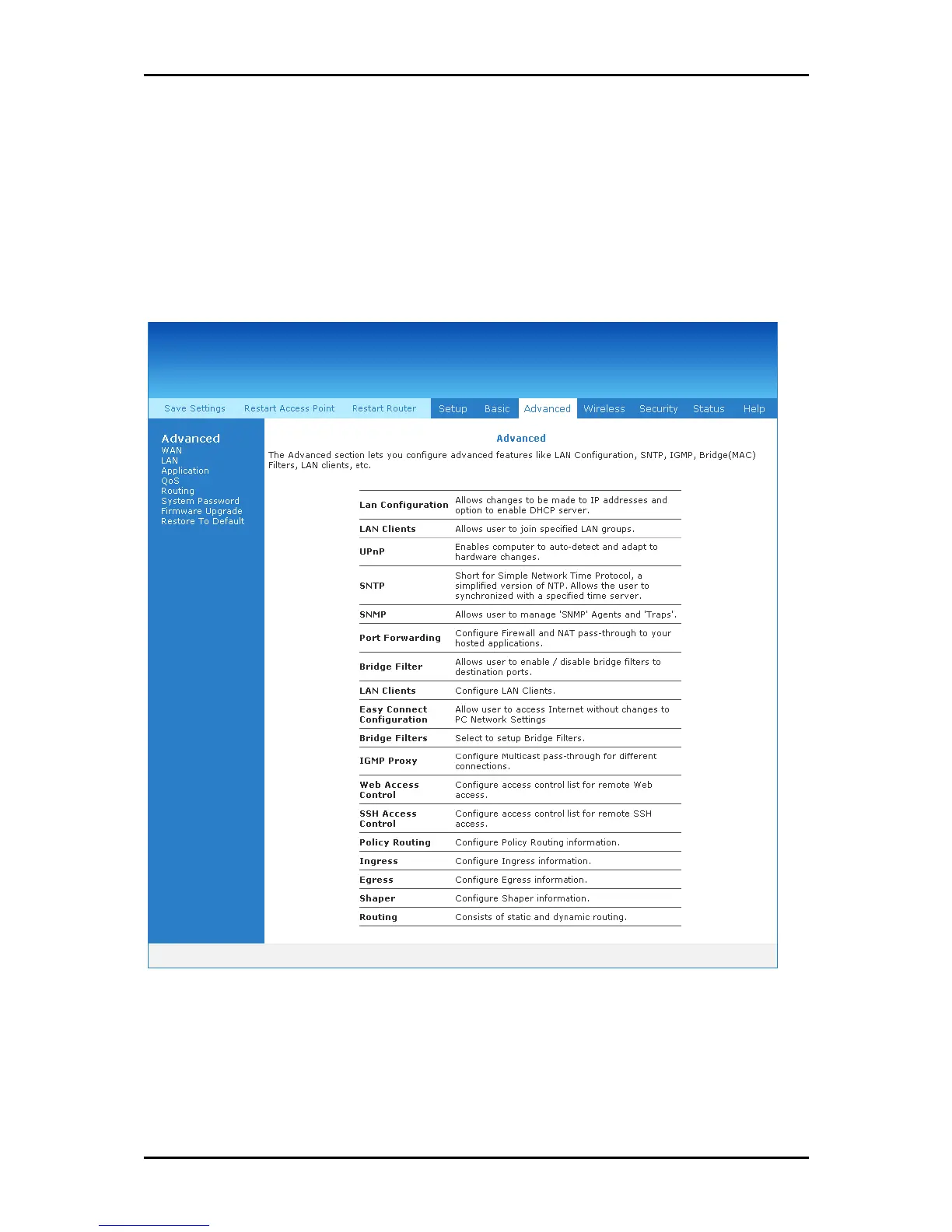

Advanced Menu

The Advanced mode provides advanced configuration settings for existing connections. At

least one WAN connection must be configured before implementing advanced WAN

configuration features. At least one LAN group must be defined before implementing

advanced LAN configuration features.
