Policy Routing Configuration

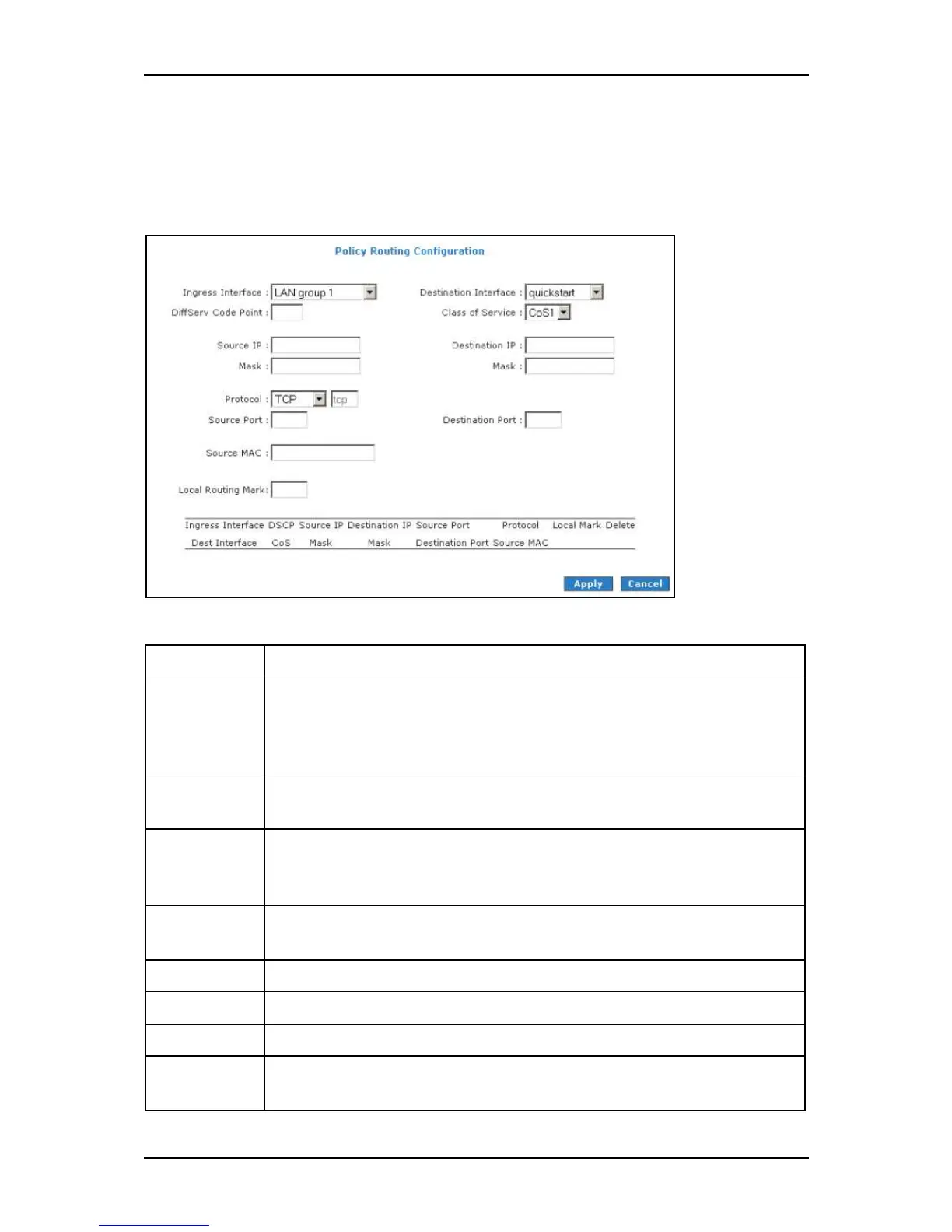

The Policy Routing Configuration enables you to configure policy routing and QoS.
Policy Routing Configuration
Policy Routing ConfigurationPolicy Routing Configuration
Policy Routing Configuration
Field
FieldField
Field Description
DescriptionDescription
Description
Ingress Inter
face
The incoming traffic interface for a Policy Routing rule. Selections include LAN
interfaces, WAN interfaces, Locally generated (traffic), and not applicable. Examples
of Locally generated traffic are: voice packets, packets generated by applications
such as DNS, DHCP, etc.
Destination
Interface
The outgoing traffic interfaces for a Policy Routing rule. Selections include LAN
Interfaces and WAN interfaces.
DiffServ Code
Point
The diffServ code point (DSCP) field value ranges from 1 to 255. This field cannot be
configured alone, additional fields like IP, Source MAC, and/or Ingress Interface
should be configured.
Class of Service The selections are (in the order of priority): CoS1, CoS2, CoS3, CoS4, CoS5, CoS6, and
N/A.
Source IP The IP address of the traffic source.
Mask The source IP Netmask. This field is required if the source IP has been entered.
Destination IP The IP address of the traffic destination.
Mask The Netmask of the destination. This field is required if the destination IP has been
entered.
