7. Cold mirror assembly

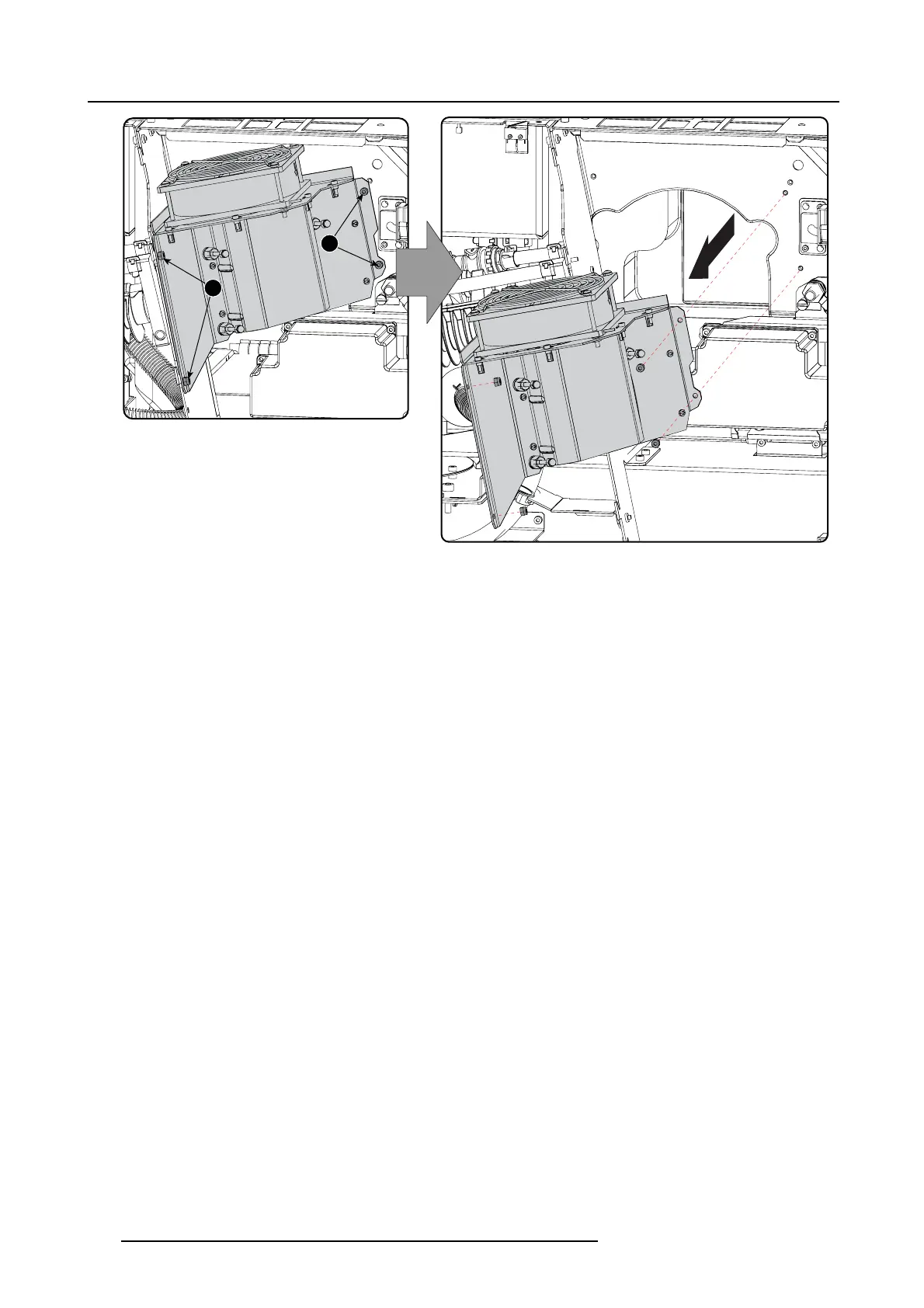

Image 7-4

Remove cold mirror

5. Remove both nuts at the left side (reference 3).

Support t he assembly while rem oving the n uts.

6. Slide out the cold mirror assembly.

126 R5905043 DP2K-12C/11CX 19/02/2018
