14. Communicator touch panel
14.3 Reposition the touch p anel interface
How to reposition the touch panel interface?
1. Hold fast the touch panel interface.
2. Release the central swivel c lamp by turning the big black kno b (K) counterclockwise.
K

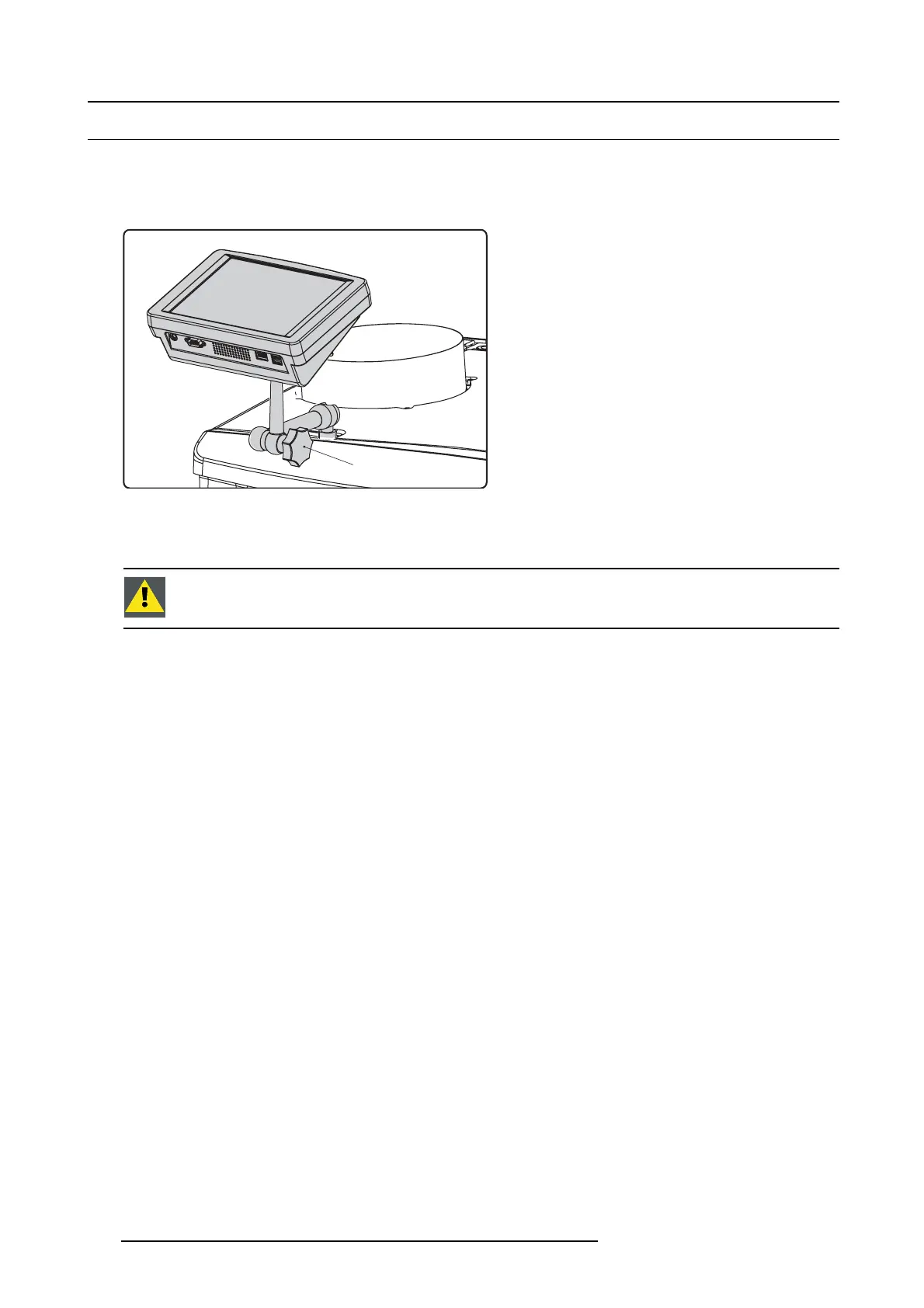

Image 14-8
3. Move the touch panel interface into the desired position.
4. Fasten the central swivel clamp by turning t he big black knob clockwise.
CAUTION: Never release t he central sw ivel lock w ithout supporting the Touch Panel interface.
266 R5905043 DP2K-12C/11CX 19/02/2018
