Barco DP2K-12C

2. General
2.2 Location of t he main componen ts of the projector
Housing and air inle t filters
1
2
3
4
5
6
7

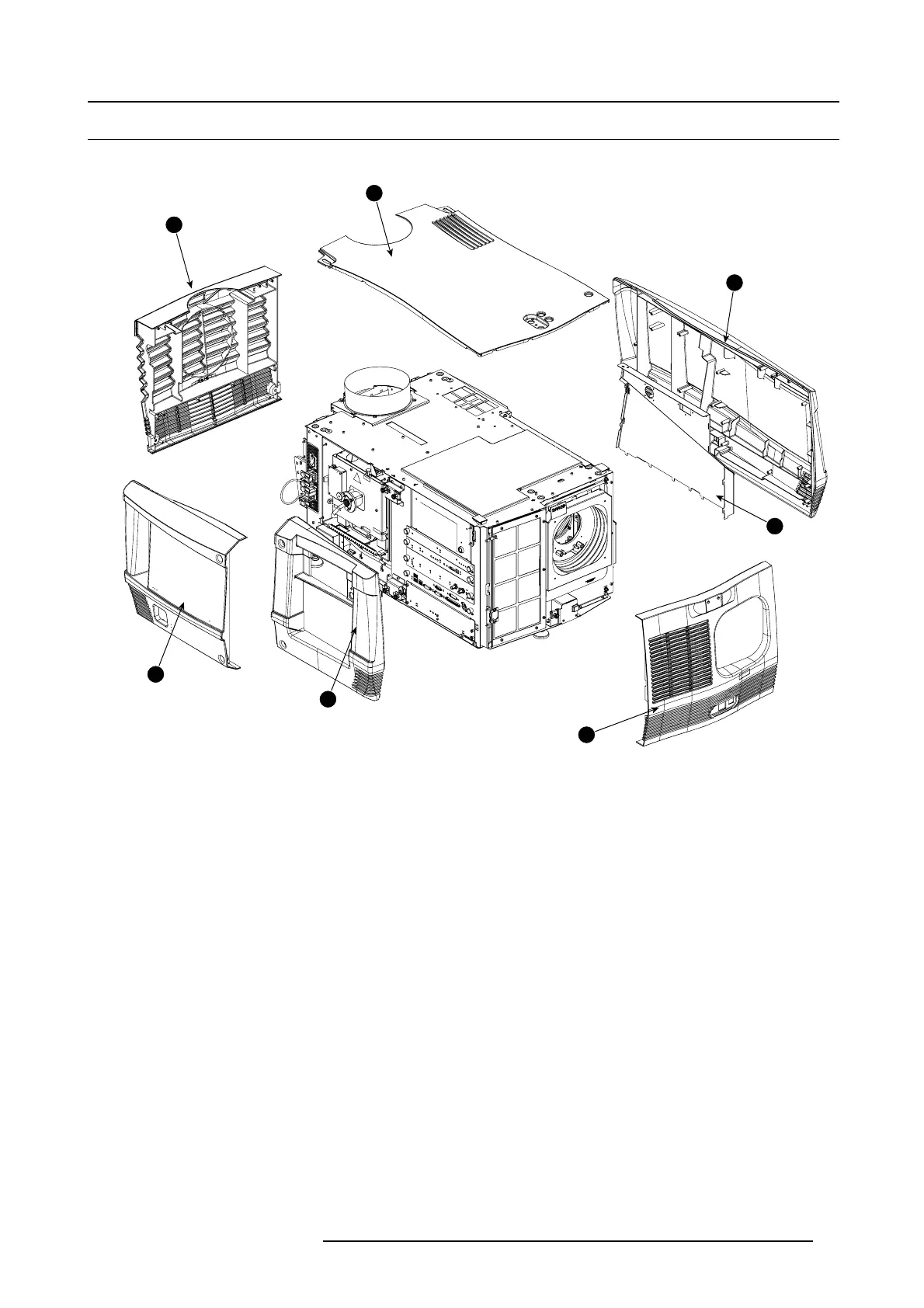

Image 2-2
1 Rear cover.
2 Top cove r.
3 Left cover (Light Processor side).
4 Sealed com partment cover (Light processor side)
5 Lamp cover.
6 Input cover (Input & Communication unit).
7 Front cover.
