5. Removal and installation of projector covers
5.5 Removal of the rear cover
WARNING: This procedure may only be performed by qualified technical service p ersonnel.
Necessary tools
Flat screwdriver.
How to remove the rear cover from the projector?
1. Release the two captive screws at the bottom corners of the rear cover, using a flat scre w driver.

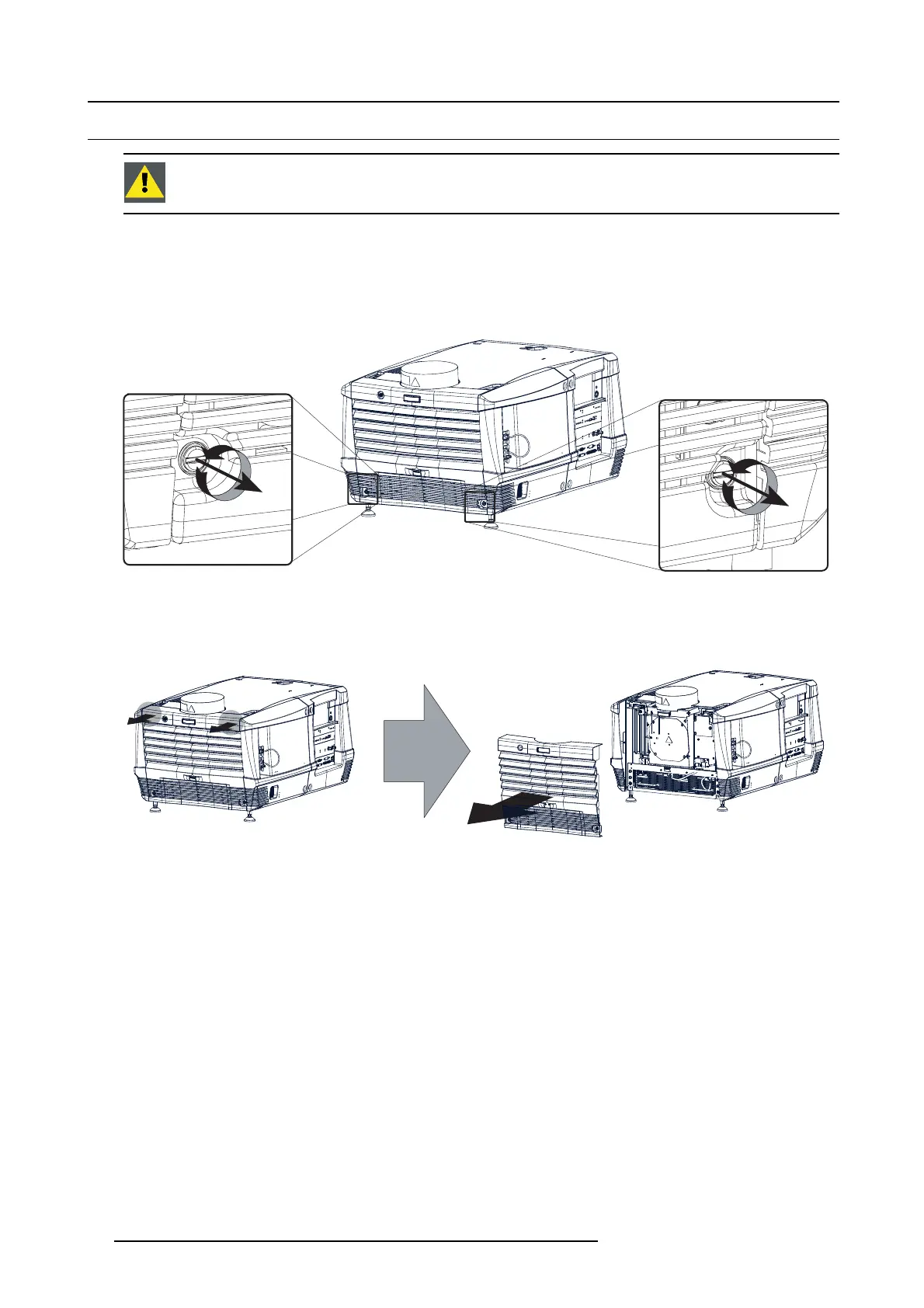

Image 5-9
Release rear cover
2. Remove the r ear cover of the projector doing the following:
a) gently pull out the top corners of the r ear cover,
b) then m ove the rear cover away from the projector.
A
A
B
Image 5-10
Remove rear cover
82 R5905043 DP2K-12C/11CX 19/02/2018
