20. Fan replacement procedure
20.7 L amp Info Module fan
To access the Lamp Info Module fan the lamp cover has to be removed. This procedure assumes that the lamp
cover is already removed .
Necessary tools
3 mm Allen wrench.

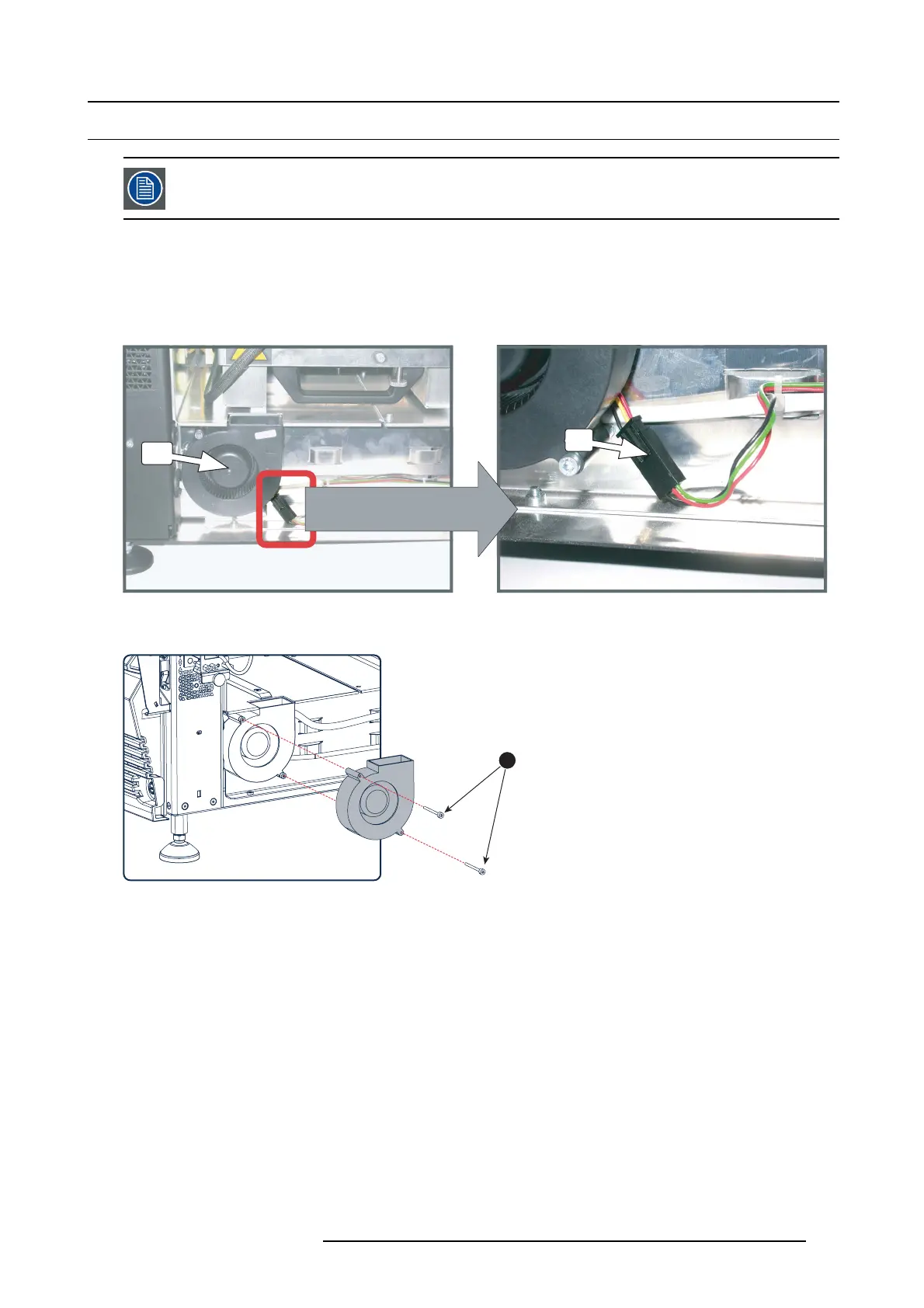

How to r epla ce the fan of the Lamp Info module?
1. Disconnect the wire unit (reference C ) of the fan (reference FL).
C
FL
Image 20-31
2. Remove the fan from the projector by releasing the two hex agon socket head cap s crews (reference 1). Use a 3 mm Allen
wrench.
1
Image 20-32
3. Install a new fan as illustrated in image 20-32. Use a 3 mm Allen w rench to fasten the two hexagon socket head cap screws.
4. Reconnect t he wire unit of the fan.
R5905043 DP2K-12C/11CX 19/02/2018
329
