Barco DP2K-12C

5. Removal and installation of projector covers
5.11 Installation o f the side cover
Necessary tools
Flat screw driver.

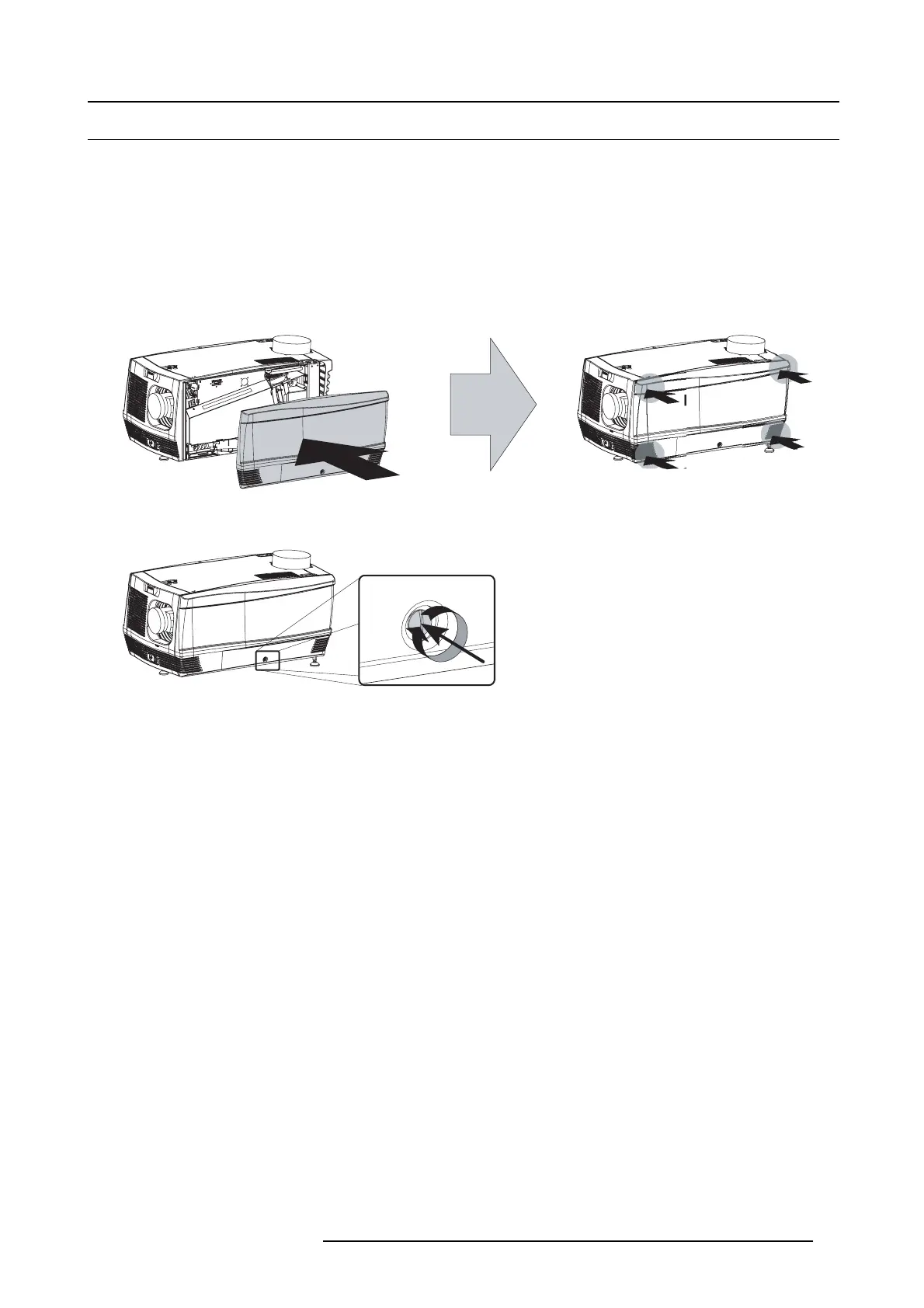

How to install the sid e cover of the projector?
1. Check if the bottom and top filters are pr esent.
2. Install the side cover of the projector doing th e following:
a) Bring the side cover towards its final position (A),
b) then gently push the locking studs of the top corners (B ) into their rec eivers,
c) then gently push the locking studs of the bottom c orners (C) into their receivers.
B
B
C
C
A
Image 5-21
3. Secure the side cover by locking the captive screw in the m iddle at the bottom
of the side cover.
Image 5-22
