Barco DP2K-12C Service Manual

14. Communicator touch panel
W

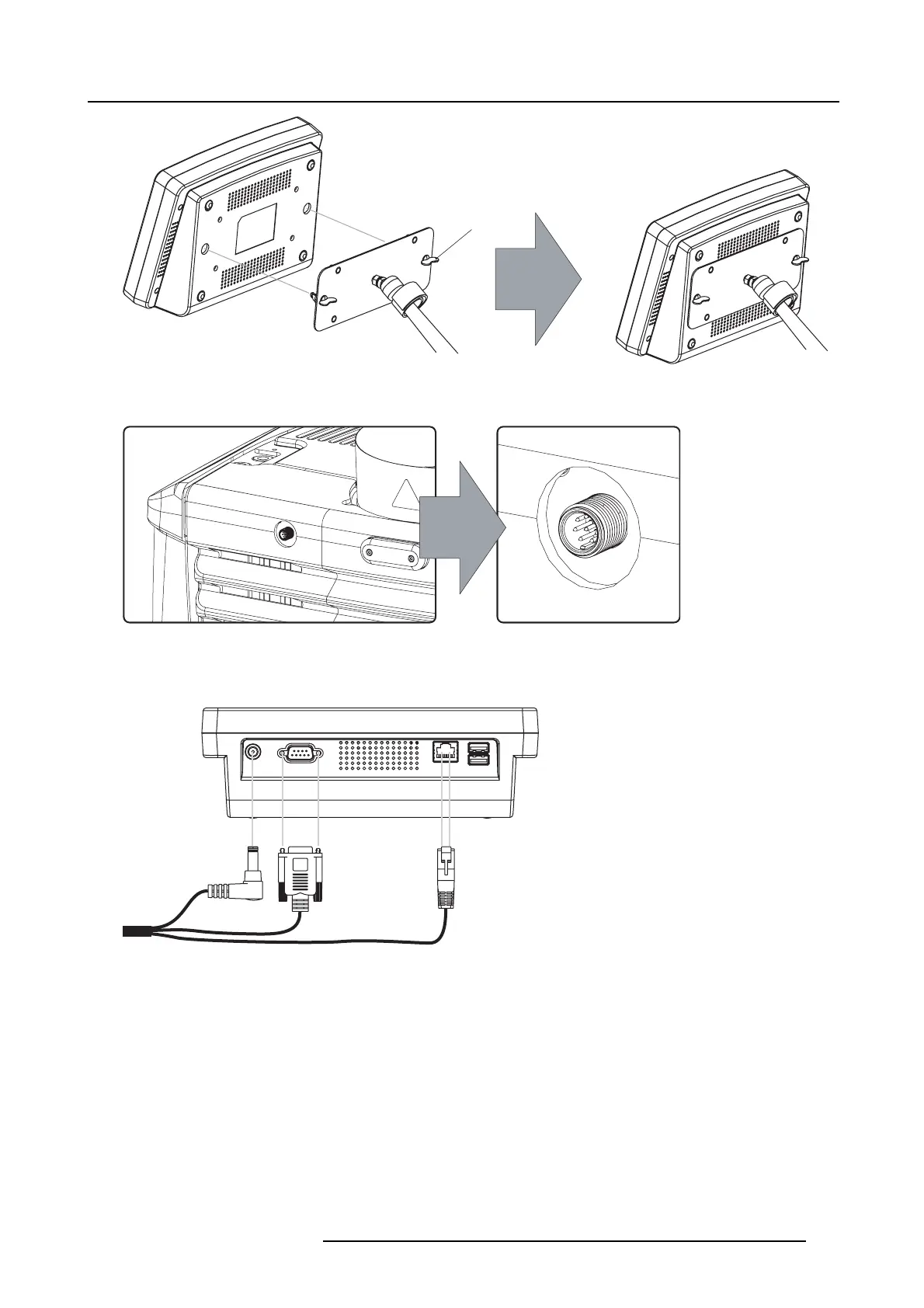

Image 14-5
Mount touch panel
4. Connect the circular plug of the multi ca ble with the c ircular socket at the rear side of the DP2K-12C/11CX.
Image 14-6
Connections
5. Attach the multi cable to the swivel arm using the two Velcro strips.
6. Connect the DC plug, the RJ45 Ethernet plug and the D-SUB plug into their respective sockets on the touch panel interface.
Image 14-7
Connections
R5905043 DP2K-12C/11CX 19/02/2018 265
